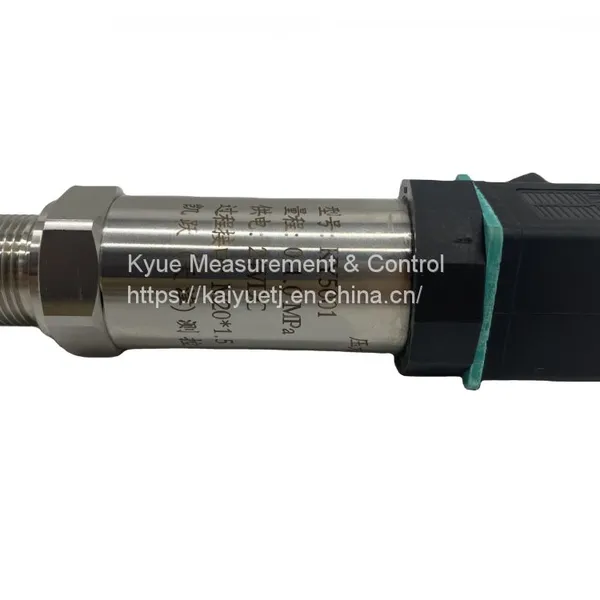

Help CenterStandard Economical Pressure Transmitter 12-36VDC 4-20mA M20*1.5 OEM
Related Products
-
Special Hydraulic Pressure Transmitter 4-20mA G1/4 12-36VDC OEM PT5500US$ 95 - 125MOQ: 10 Pieces -
Cable Type Pressure Transmitter 12-36VDC 4-20mA&customized 1/2NPT 0-100MpaUS$ 205 - 235MOQ: 10 Pieces
-
Flat Film Pressure Transmitter 12-36VDC G1/2&customizedUS$ 125 - 155MOQ: 10 Pieces
-
Sanitary Pressure Transmitter 4-20mA&customized50.5ChuckUS$ 150 - 185MOQ: 10 Pieces
-
Digital Display Pressure Transmitter 4-20mA&RS485 M20*1.5/customizedUS$ 135 - 165MOQ: 10 Pieces
| Standard economical pressure transmitter | ky5001 |
| Measuring medium | Liquid and gas are non corrosive |
| Range | ‘-0.01～0～150Mpa |
| Overload pressure | 150% |
| Accuracy | 0.2%FS |
| Failure pressure | 300% |
| Response time | 10ms |
| Service temperature | ‘-40-125℃ |
| Waterproof grade | IP65 |
| Power | 12-36VDC |
| Output | 4-20mA |
| Process interface | M20*1.5 |
The pressure sensor KY5000 provides high-performance configurable pressure measurement solutions.The sensor is widely used in industrial pressure measurement as well as engine testing and hydraulic systems.The advantages of kyue sputtering film technology and analog circuits enable excellent performance in sensor stability, low power consumption and high frequency response.The adoption of modular design and lean production technology enables users to flexibly choose products to meet their special application needs and to deliver during standard products.
Measurements
Scale range: 0~50KPa to 0~7MPa.
Seal pressure measurement: optional from 0~1MPa to 0~150MPa.Expression range: 0-50KPa to 0-150MPa. Differential pressure range: wet / dry one-way or two-way: 7KPa-3.5MPa wet / wet one-way latter two-way: 7KPa- 3.5MPa static pressure: maximum 7MPa
Atmospheric range: The minimum range of atmospheric pressure range is 35KPa.
Composite range: Composite pressure range is also available.Customers in need, please contact the manufacturer.
widely used in petroleum, chemical, metallurgy,Pressure measurement and control of industrial processes such as power, heavy industry machinery, hydraulic system, high-speed rail cleaning equipment and engine testing.
