SBKJ Spiral Tubeformer SBTF-1602B

SBKJ Spiral Tubeformer SBTF-1602B thumbnail-1
SBKJ Spiral Tubeformer SBTF-1602B thumbnail-2
SBKJ Spiral Tubeformer SBTF-1602B thumbnail-3
SBKJ Spiral Tubeformer SBTF-1602B thumbnail-4
SBKJ Spiral Tubeformer SBTF-1602B photo-1

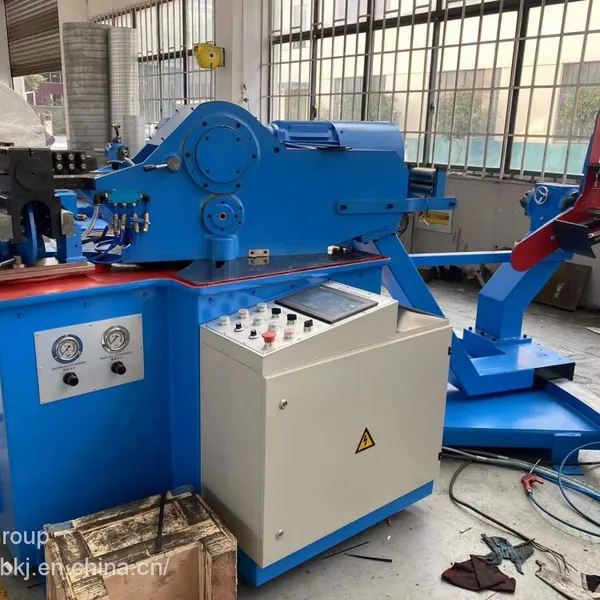

SBKJ Spiral Tubeformer SBTF-1602B photo-2

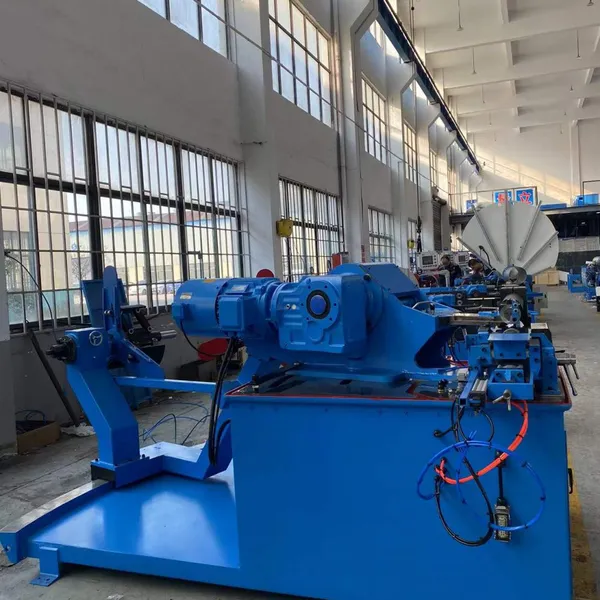

SBKJ Spiral Tubeformer SBTF-1602B photo-3
SBKJ Spiral Tubeformer SBTF-1602B photo-4
US$ 31800 - 35000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SBKJ
Place of Origin:
China
Model Number:
1602B
Contact Supplier Request Quote Chat Now
SBKJ Group
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SBKJ
Place of Origin China
Model Number 1602B
Certification CE
Type Pipe Cutting Machine
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1year
Weight 2900kg
Dimension(L*W*H) 3200mm×1700mm×1450mm
Production Capacity 10pieces/month
Condition New
Voltage 380V/50HZ/3PH
Application Other, HVAC
Power(W) 11kw
Pipe Material Other, galvanised steel

The 1602B spiral duct forming machine forms ducts with a diameter range of 80 to 1600mm, and a maximum worktable thickness of 1.3mm for galvanized sheets, 0.8mm for stainless steel, and 1.3mm for aluminum sheets. The machine can also be programmed to cut to the exact length for precision trimming, thereby increasing production efficiency.



Features:

1. The fast cutting results in smooth edges with no spark production.

2. Changeable forming compartment for materials with different thicknesses.

3. Aluminum forming heads are lighter and more precise compared to iron ones.

4. Duct beader to strengthen duct.



Parameter:

Diameter   Range

Φ80-Φ1600mm

Thickness   range

Galvanized steel   0.4-1.3mm,Stainless steel 0.4-0.8mm

Aluminium   0.4-1.2mm

Strip   Width

Standard 137mm 0.4-1.0mm

Standard 140mm   1.1-1.2mm

Strip   Speed

Max.30m/min(depend   on the materials)

Motor   Power

11Kw

Coolant   Power

0.25Kw

Weight

2900Kg

Demension

3200*1700*1450(main   machine)
  2450*1200*1200(run-out table)

Cutting

the patented   flying slitter

Corrugations

either one or   two beads

Lockseam

outside lock,   inside lock as request.
