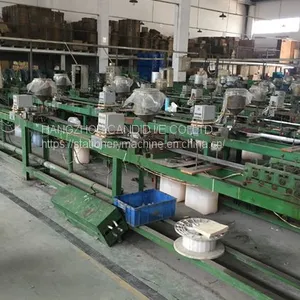

Staple Production Line ( Auto Stapler Machine)

As one of the leading stationery machine manufacturers, HANGZHOU CANDID I/E CO., LTD owns experienced team in design, marketing and after-sale service, could offer you most suitable proposal, high-quality pre-sale, in-sale and after-sale service. To customize safe, economic, efficient and accurate proposal for every client is our target and their satisfaction is our greatest pursuit.

1. Capacity:12500-25000pcs/min

2. Diameter of galvanized wire: Φ0.3-1.6mm

3. Space required :20m(L)*8m(w)

4. Total power: 13KW

5. Raw material: galvanized steel wire

6. Current source: 380V, 50Hz, 3-Phase

7. Consumption of glue:50kg for 1-ton wire

8. Weight:2700Kg

Details or Advantage

1. CANDID staple pin production line auto stapler machine adopts the reversible safety cover, this cover could protect the workers when they operate the machine, and it could be removed when the worker needs to maintain the equipment. It’s more safe and convenient.

2. CANDID wire gluing machine will glue the flattened wire three times to make the final staple pin stronger. So it will not be divided when it’s used in staple gun.

3. Our staple pin production line has two sets of straightening device so that the feeding wire will be more smooth and straight.

Description

Staple pins are widely used in office, school, and industry. They are mainly used to bind books, paper boxes, wooden boxes and kinds of furniture. Staple pins have a variety of sizes, according to different usage (for paper or wooden), the length of the staple pins and the hardness of the raw materials are also different.

CANDID staple pin production line is suitable for making various kinds of staple pins with galvanized round iron wire as raw materials, especially for industry staple pin. The whole production line totally has three machines: Wire flattening machine, wire gluing machine and staple pin forming machine. The capacity is 70 times than single staple pin making machine.

Our staple pin production line has already exported to many countries, such as United State, India, Russia, Nepal, Nigeria and so on. CANDID always believe that the machine quality and continuous service is the most important thing. Due to the investment in equipment is one-off, the quality is directly affected on customer's profit. So we try our best to supply each customer the good quality equipment and help them to solve every problem.

Model Specifications H(mm) W(mm) Galvanized Wire(mm)

RWD-10#

4.6-4.7 8.5-8.6 Φ0.45±0.03

RWD-12# (24/6) 5.95-6.05 11.75-11.9 Φ0.55±0.03

26/6 5.95-6.05 11.75-11.9 Φ0.47±0.03

23 Series 8/10/

13/15/17

/20/23 11.7-11.8 Φ0.7±0.03

Other type(can customized) - - -

Capacity 125 strips/ min (100-260 pcs/ strip)

Motor 5.5kw,380V,50Hz,3-Phase

Dimension 1400mm x 1200mm x 1800mm

Weight 1500kg
