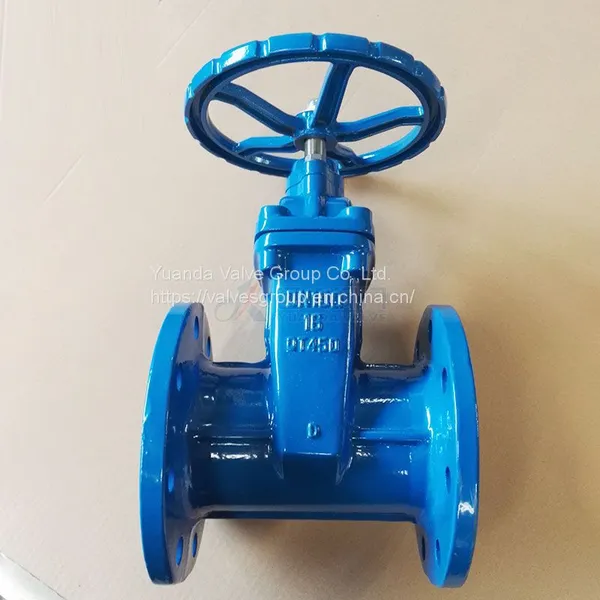

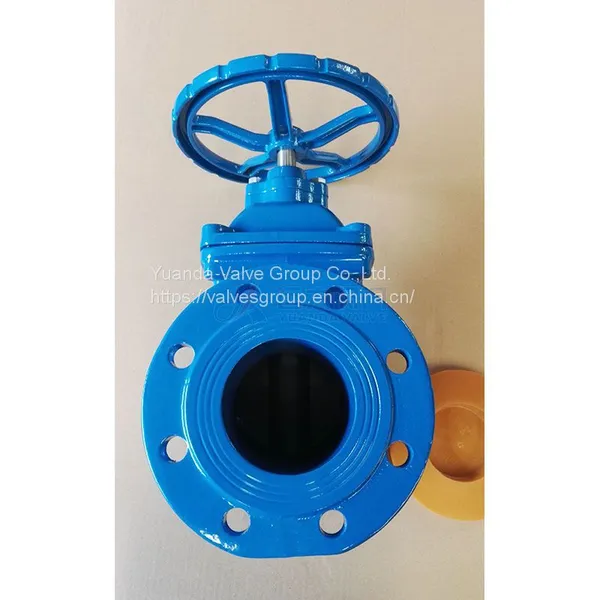

BS5163 DI Non-rising Stem Resilient Gate Valve 10K Resilient Seat Gate Valve Resilient Seat Gate Valve
Technical Requirement:
1. Design and Manufacture: BS5163;
2. Face to Face: BS5163;
3. Flange End: BS EN1092;
4 Test: BS5146
The Features Of Resilient Seat Gate Valve
1. Precision molded valve body. The valve body is precision molded, which, due to its precise geometry, does not require any fine machining inside the valve body, ensuring tightness.
2. Small opening and closing torque saves opening and closing costs. When opening and closing the valve, the direction of movement of the spool is perpendicular to the direction of water flow, thus facilitating the opening and closing of the valve.
3. Integral rubber encapsulation. The valve's inner and outer rubber are all made of high-quality rubber. First-class European rubber vulcanization technology ensures that the vulcanized valve has precise geometry, a strong connection between the rubber and the plastic iron valve, and an elastic memory that prevents mould and mildew.
4. Low fluid resistance. The internal flow path of the butterfly valve body is straight, so the fluid does not change direction as it passes through the butterfly valve, resulting in low fluid resistance.
5. Flat bottom valve seat. In traditional valves, after flushing the pipe with water, foreign objects such as stones, wood, cement, iron pieces, and debris often accumulate in the grooves at the bottom of the valve and can cause leaks.
The resilient seat valve has the same flat bottom design as the plumbing machinery, which prevents contamination by debris and impedes the flow of liquid.
6. Lightweight. The valve body is made of high-quality ductile iron and is approximately 20-30% lighter than conventional valves. It is easy to install and maintain.
Main parts and materials
Parts Name |
Materials |
Body、Bonnet |
ductile iron |
Disc |
ductile iron+ NBR/EPDM |
Stem |
Stainless steel |
Seat Ring |
NBR/EPDM |
