Product Description

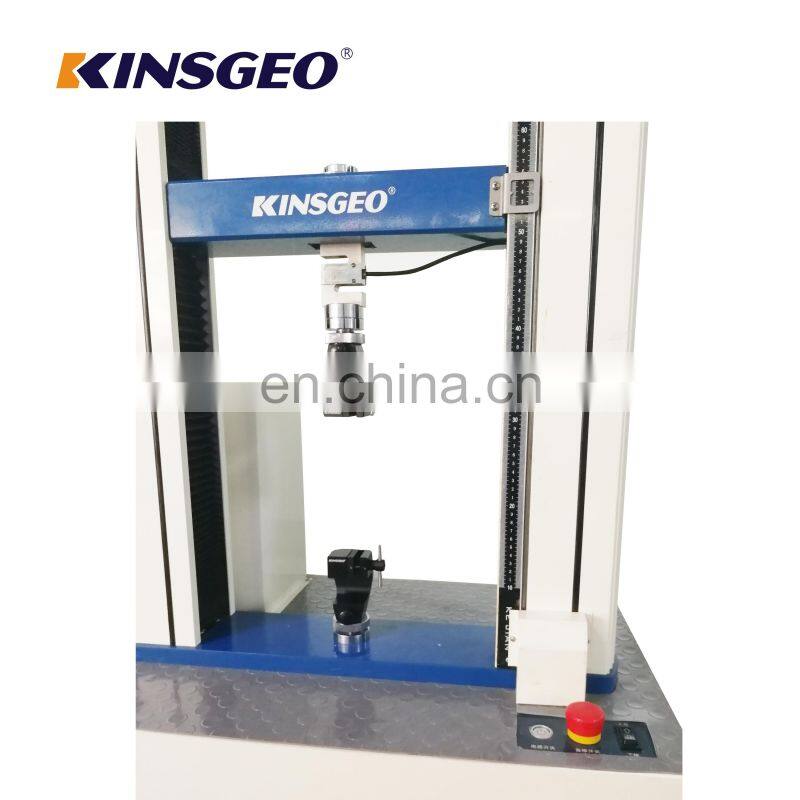

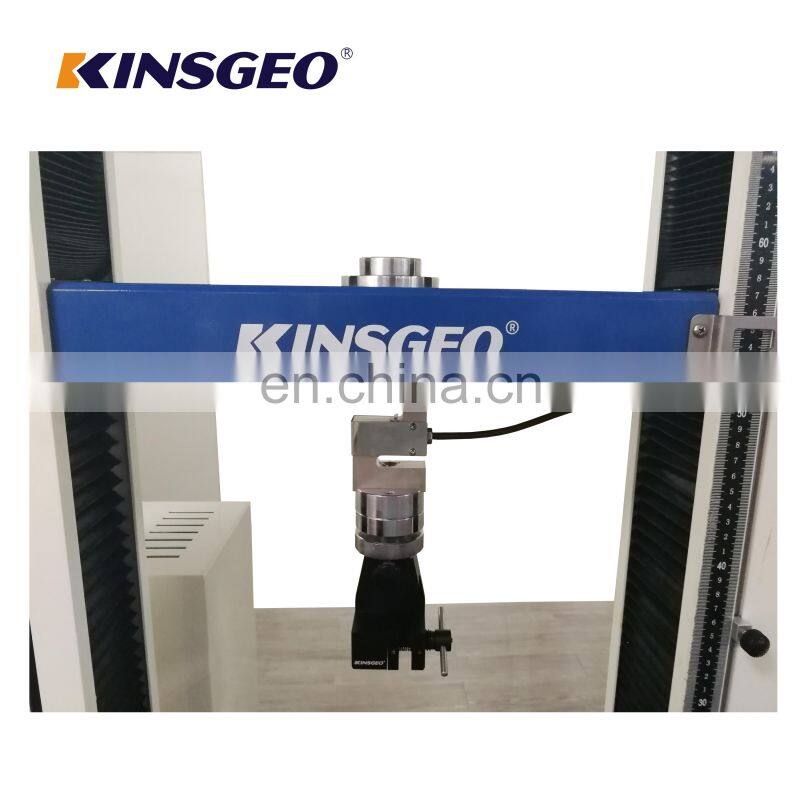

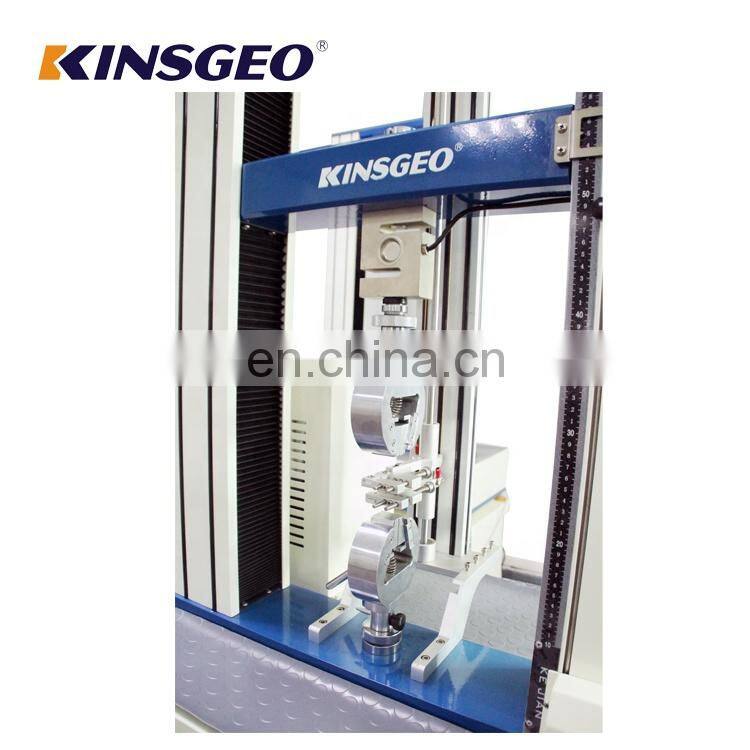

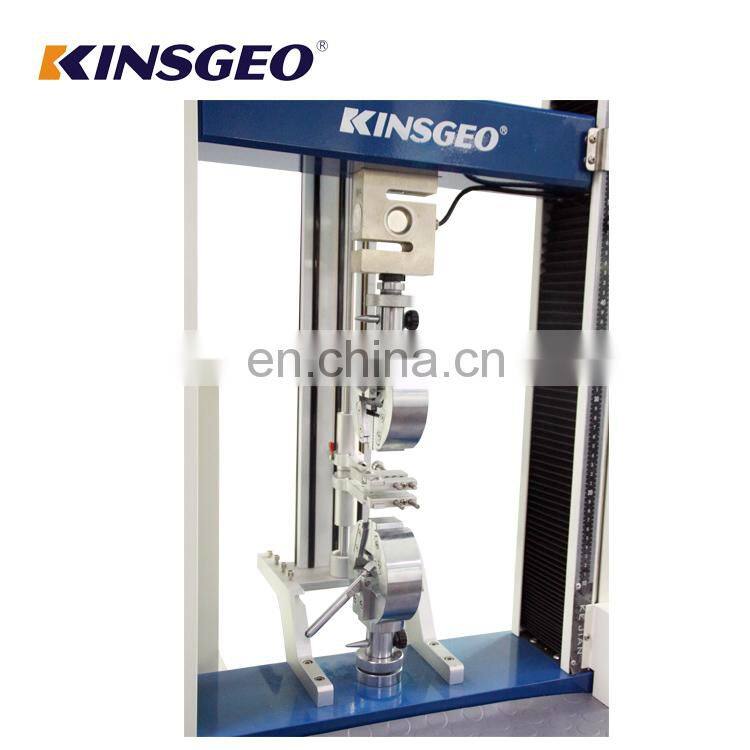

Universal Steel Plastic Rubber Tensile Compression Testing Machine 30KN
Usage
This machine also known as a materials testing machine , is applicable to testing tensile stress, compressive stress, shearing, force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic, chemicals, wire and cable, leather, ect.
Character:
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2. Use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
Company Profile
Our factory Established in 2003, Dongguan Kejian Instrument Co., Ltd is a high-tech enterprise which professionally research, develop and produce precise testing instruments and provide a full set of testing solution.
Specification
Motor | Japan Panasonic Servo Motor |
Capacity | 5,10,20,50,100,200,500,1000,2000,5000KG |
Stroke | 800mm(not including fixture) |
Test Speed | A: 0.5~1000mm/min; B: 50~500mm/min (control by keyboard inputing) |
Test range | 400mm MAX |
Dimention | 80×50×150cm |
Weight: | 180kg |
Accuracy | ±0.5% or better |
Operation method | computer control |
Resolution | A: 1/250,000 B: 1/150,000 |
Motor | A: servo motor B: AC motor |
Operation system | TM2101 |

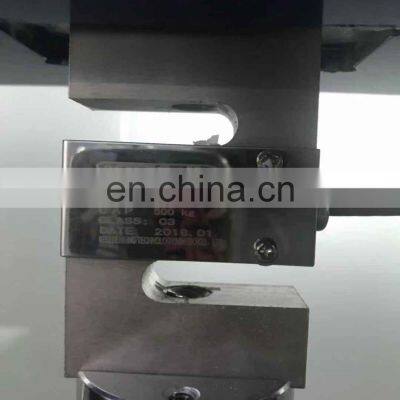

Accessories: | customized clamps by appointed, force sensors, , printer, and operation manual |
Power | 1Ø,220V/50HZ |
Stroke protection | Machinery, computer double protection, prevent over preset |
Force protection | system setting |

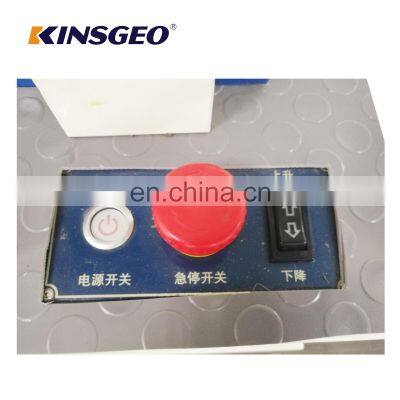

Emergency stop device | Handling emergencies |
Standard: | GB16491-2008,HGT3844-2008 QBT11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 |
