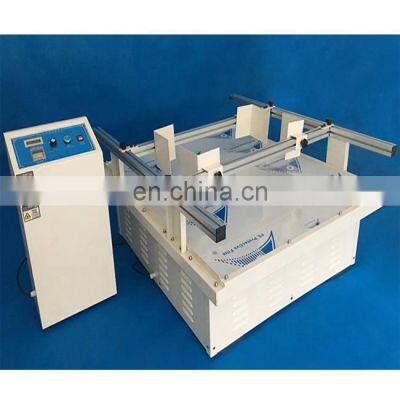

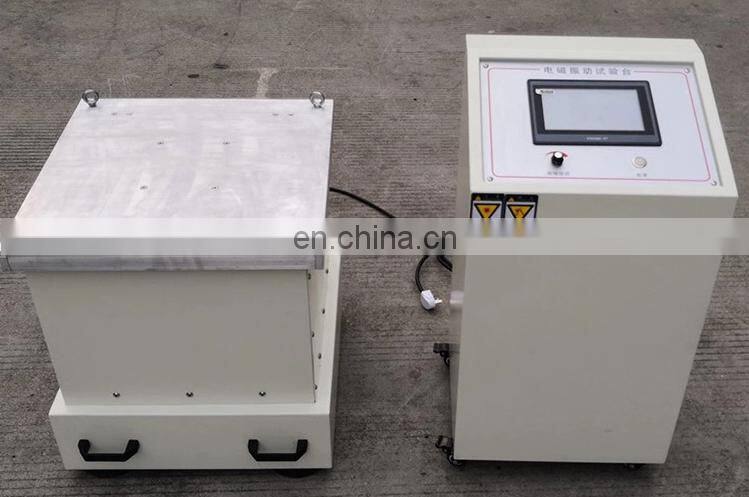

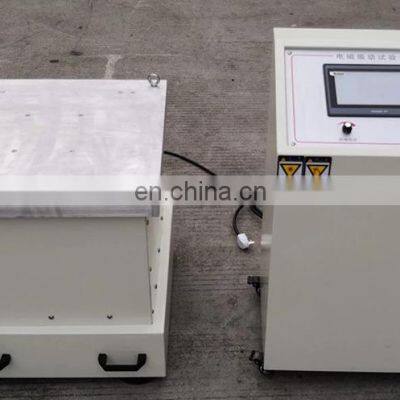

Programmable Frequency Sweeping Electromagnetic Vibration Table
1. Application
Special for vibration resistance testing of electronic, houseware, motor, IT and etc. to check the damage of parts function and construction after vibrated by rated frequency and amplitude. Also can do shipping vibration test on export parts with full package.
2. Technical parameters
|
Test load |
60KG |
|
Vibration direction |
Vertical + horizontal (manual switching) |
|
Table size (mm) |
A: 500×500, B :750X750, C:1000X1000 |
|
The amplitude (P - P) |
0 -- 5mm (random, variable with frequency, adjustable) |
|
Frequency Sweep |
1- 600HZ can be set arbitrarily (true standard frequency sweep back and forth) |
|
Maximum Acceleration |
10g |
|
Indicator Function |
Frequency modulation, frequency sweep, time |
|
Vibration Waveform |
sine wave |
|
Time Controls |
Time can be set |
|
Power |
1.2KW |
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
Mob: 0086-13712874307
wechat/whatsapp:008613712874307
skype:Peter.liu560
