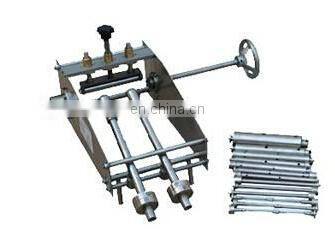

Manual Wire Low Temperature Winding Test Device

Low Temperature Winding Test Device

It is used to examine the property of round cables and round insulated wire core under the low temperature conditions.

Standards :GB/T 2951.14-2008

Technical parameters

1. specimen diameter: Φ2.5~Φ12.5mm
2, Winding rod diameter: Φ4, Φ5, Φ6, Φ7, Φ8, Φ10, Φ12, Φ14, Φ16, Φ20, Φ24, Φ28, Φ32, Φ36, Φ40, Φ45, φ50, each one of them; 17 in total
3.Through wire sheath: Φ1.2, Φ2.4, Φ3, Φ3.8, Φ4.7, Φ5.9, Φ7.4, Φ9.2, Φ11.5, Φ14.5, each two of them
4.Specimen winding coil number: 2~10 coils
5. All the devices of this series are made of stainless steel

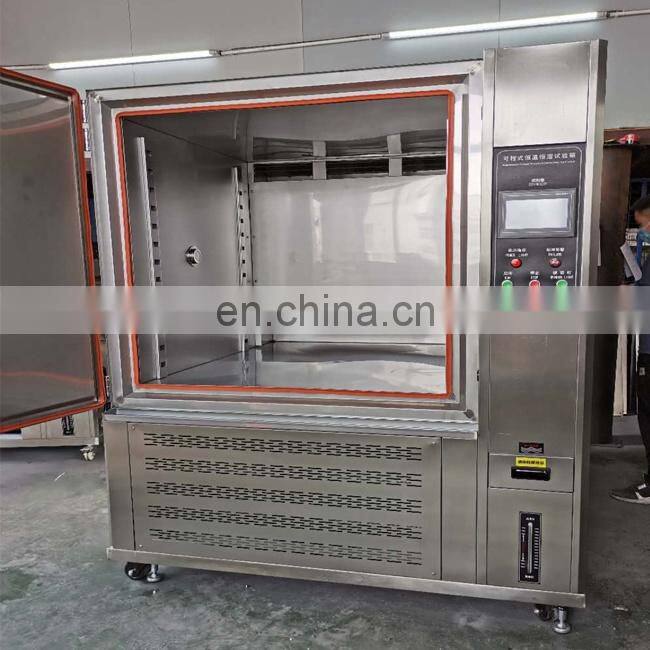

6 .This tester is used in conjunction with the low temperature chamber

1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.

2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.


3.What about the services and product' quality?

Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.

if you have any question, pls contact us directly.
