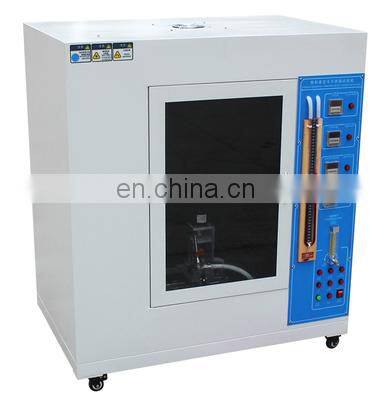

IEC60695-11-3 Vertical and Horizontal Burning Tester

Horizontal and Vertical Flame Tester

This equipment meets the requirements of ANSI/UL94,IEC60950-1,IEC695-2-2 Standard. It is used to test the appliances and plastic materials parts of electrical equipment for the horizontal, vertical flammability test. The product tank shell is irony spray, and configured a transparent viewing window, the digital meter shows the burning time, afterflame time, afterglow time, this device has beautiful appearance, is easy to use and has reliable performance.

Specification:
• Work Power: 220V AC 50HZ
• Burning Time: 0~999.9S(Adjustable)
• Afterflame Time: 0~999.9S(Adjustable)
• After-blanch Time: 0~999.9S(Adjustable)
• Burning Angle: 0°,20°,45°optional
• Flame Height: 20mm~175mm adjustable
• Gas Flow: 0.03~0.3ml/Min
• Gas Pressure: 0 ~16 Kpa pressure gauge ±200mm spout
• Burning Lamp: Internal tube diameter: 9.5±0.3mm,Length:100mm±10mm
• Time Device: It can be accurate to 0.5S.
• Linear Measure: In millimeter.
• Pressure Gauge: It can measure 200mm water, taking 5mm as the increment.
• Flow Meter: The maximum measurement accuracy is ±2%
• Position Adjustment: Sample clamp bracket can be up and down, left and right controlled, combustion seat can be adjusted back and forth, the stroke adjustment is greater than 300 mm.

1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.

2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.


3.What about the services and product' quality?

Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
