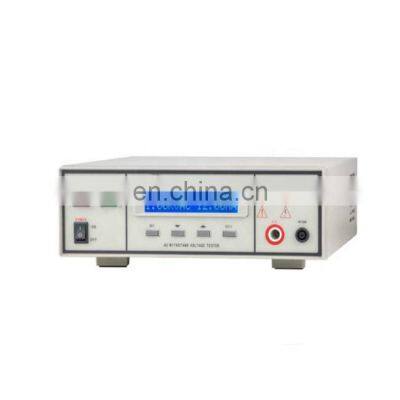

Help Center7122 Hipot Tester/ Multichannel Withstanding Voltage and Insulation Tester
Related Products
-
UN38.3 Battery Crush Test EquipmentNegotiableMOQ: 1 -
10 Years Manufacturer Battery Cellphone Mobile Phone Drop Testing EquipmentNegotiableMOQ: 1
-
Manufacturer UN38.3 Li Ion Battery Fire Burning Test Machine PriceNegotiableMOQ: 1
-
10 Years Manufacturer Clear Acrylic Pressure Testing ChamberNegotiableMOQ: 1
-
Repeated Wire Reverse Bending Test EquipmentNegotiableMOQ: 1
Programmable insulation withstand voltage tester
7122 are the withstanding voltage insulation tester of multichannel scanning, composed of a master controller and a scan box. They can output AC/DC withstanding voltage insulation testing voltage in four-way, eight-way or sixteen-way respectively, conducting time sharing scanning test of several channels and testing the channels at the same time. What’s more, they can rapidly and accurately measure the withstanding voltage insulation tests of electronic components, household electrical appliances, transformers, lighting electrical appliances, electric tools and heating appliances, improving the testing efficiency
| Model | Programmable insulation withstand voltage tester | Programmable withstand voltage tester | |||
| 7112 | 7122 | 7110 | 7120 | ||
| Withstand voltage test | Output Voltage(kV) | AC:0-5 | AC:0-5 | AC:0-5 | AC:0-5 |
| DC:0-6 | DC:0-6 | ||||
| Test Accuracy | ±(2% setting value+5V) | ||||
| Output Current(mA) | 0.10-12.00 | AC:0.10-12.00 | 0.10-12.00 | AC:0.10-12.00 | |
| DC:0.10-5.00 | DC:0.10-5.00 | ||||
| Test Accuracy | ±(2% setting value+2Counts) | ||||
| Insulation test | Output Voltage(kV) | DC:0.10-1.00 | ———— | ||
| Display Accuracy | ±(2% setting value+1Counts) | ———— | |||
| Test resistance range | 1-1000MΩ | ———— | |||
| Test Accuracy | ±(5% reading+2Counts) | ———— | |||
| DC:voltage≥500V | |||||
| ±(7% reading+2Counts) | |||||
| DC:voltage<500V | |||||
| Test time | 0.2~999.9s | ||||
| Output frequency | 50Hz/60Hz(optional) | ||||
| Input characteristics | Single phase47~63Hz,115V/230V AC±15%(optional) | ||||

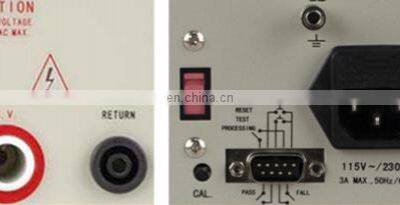

| Communication interface | Input:Test/Reset Output:Pass/Fail/Test/Process | ||||
| Test instrument failure alarm | Buzzer,liquid crystal display "FAIL",indicating lamp | ||||
| Memory group | Group memory,there are 4 test modes in each group(W,IW-I,I-W linking) | ||||
| Keyboard security lock | Optional:"locked" or "unlocked" | ||||
| Exterior dimension | 390×280×90mm | ||||
| Weight | 9kg | ||||
| Accessory |
Test line,ground wire,power line |
||||
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
