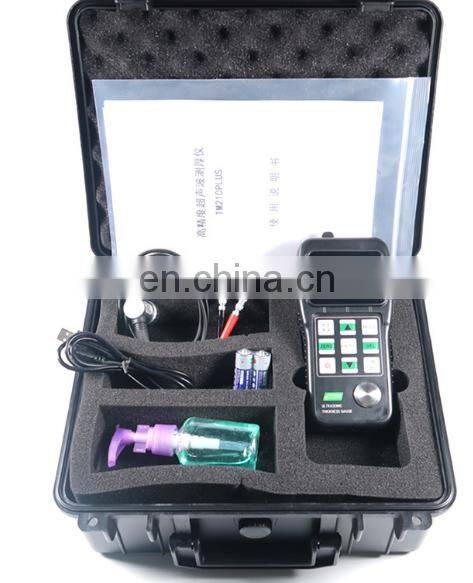

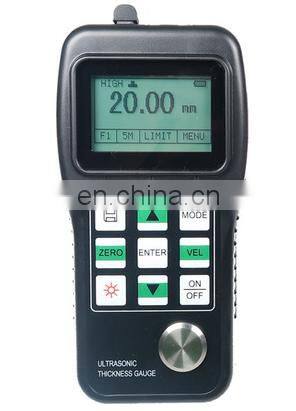

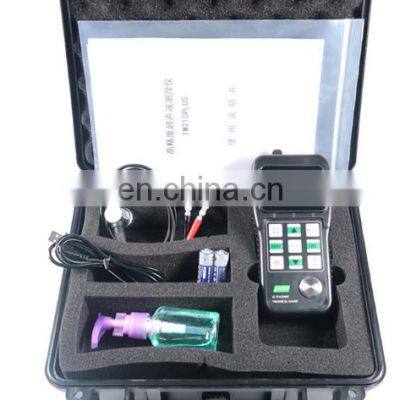

Ultrasonic thickness gauge
Product overview:
1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2.Transducer models are available for special application, including for coarse grain material and high temperature applications.
3.Probe-Zero function, Sound-Veloctiy-Calibration function.
4.Two-Point Calibration function.
5.Coupling status Indicator showing the coupling status.
6.Battery information indicates the rest capacity of the battery. Ultra-low power consumption, it is can continue working 100 hours.
7.Auto sleep and auto power off function to conserve battery life.
8.Usb port with Protective Membrane and datapro software to process the memory data on the PC.
9.Optional thermal mini-printer to print the measured data via USB port.
10,Adjust gain function ,can easy to test the cast iron material,
Specifications
|
Display: 128×64 LCD with LED backlight. |
|
Measuring range: 0.75mm~300.0mm (0.03inch~11.8 inch) |
|
Sound velocity: 1000m/s~9999m/s (0.039~0.394in/µs |
|
Display resolution:0.01mm or 0.1mm (lower than 100.0mm) |
|
0.1mm (more than 99.99mm) |
|
Accuracy: ±(0.5%Thickness +0.02)mm, depends on Materials and conditions |
|
Units: Metric/Imperial unit seletable. |
|
Lower limit for steel pipes: |
|
5MHz probe: F20mm´3.0mm(F0.8´0.12 inch) |
|
10MHz probe: F20mm´3.0mm(F0.6´0.08 inch) |
|
Power Source: 2pcs 1.5V AA size, batteries.100 hours typical operating time(LED backlight off). |
|
Communication: USB serial port |
|
Outline Dimensions: 150mm×74mm×32mm |
|
Weight: 238 g |
|
Four measurements readings per second for single point measurement, |
|
Memory for up to 5 files(up to 100 values for each file) of stored values |

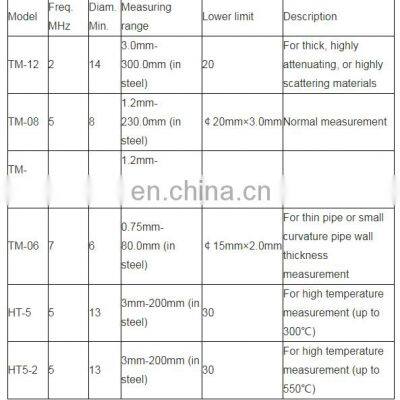

Probe optional for ultrasonic thickness gauge
1.After an order is placed, when will you send to us?
Generally about 10 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
If you have any question, pls contact us directly.
