Moisture Less Than 1PPM Vacuum Glove Box For Lithium Ion Battery with Gas Station Purification System



Product Description



It is widely used in preparing nanomaterials, Li-ion battery materials, catalysts, and metallorganics.  It is a cost-effective solution for Li-Ion battery research at low cost because most Li-ion battery's electrolyte is sensitive to moisture, but not oxygen.



Working Voltage
220V 50/60Hz, Single Phase
Glove Box Chamber
Box Material: 304 Stainless Steel (Type 304), thickness 3mm
Dimensions: 1200*750*900mm(H)
Max. Positive Pressure: 810 Torr ( flowing gas only, not designed for vacuum)
Gloves
8'' Gloves,Butyl rubber material
Transparent Front Panel
Front Panel made of transparent tempered glass,thickness 8mm
Purification System
Automatic moisture remove to < 1 ppm (Li-Ion battery assembling requires <11 ppm moisture)
Precision Humidity Analyzer with KF40 Flange is installed on the Purification System with accuracy +/-0.1 ppm
 Regeneration Temperature Controller is built-in for automatically regenerating the filter
The automatic pressure control system is built in to keep the pressure at a constant level
PLC touch panel is included which can set and display the humidity and pressure level.
Water analyzer:0-1000ppm,H2O <1 ppm,Especially for the lithium battery manufacturing and metal organic users, can be washed and reused.
Oxygen analyzer: 0-1000ppm,O2 <1 ppm
Purification Pipeline
304 stainless steel, KF40 port
Vacuum pump
Heavy-duty vacuum pump with filter is included for faster vacuum and removing moisture
Stainless steel vacuum bellow and valve are included
Gasses Requirement
Working gasses: Atmospheric Gases, N2, Argon
Regeneration Gas: 95% N2 + 5%H2,One float meter built on the front of a mobile cart for accurate gas filling
Leakage Rate in Glove Box Chamber
< 3 Torr/hour

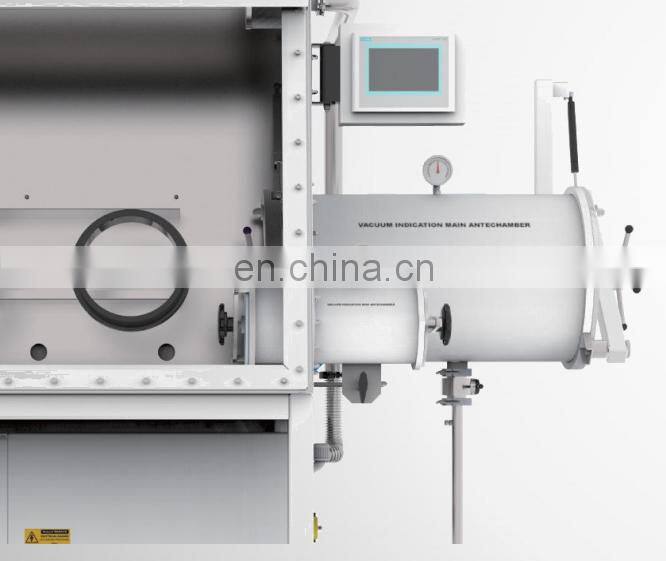

Transition cabin
Design: two circular antechambers
Main chamber size: Φ380mm (Dia.)x 600mm(length),PLC control or manual control
Mini chamber size:  Φ150 mm(Dia.) x 300mm(L)
Vacuum degree:<=-0.1MPa(right side antechambers included main chamber and mini chamber, all of that are need vacuum and display. Control way: manual



Moisture Less Than 1PPM Vacuum Glove Box Glove Box Multi-station Working Position





Moisture Less Than 1PPM Vacuum Glove Box Glove Box Multi-station Working Position



Moisture Less Than 1PPM Vacuum Glove Box Glove Box Multi-station Working Position



Moisture Less Than 1PPM Vacuum Glove Box Glove Box Multi-station Working Position



Moisture Less Than 1PPM Vacuum Glove Box Glove Box Multi-station Working Position



Moisture Less Than 1PPM Vacuum Glove Box Glove Box Multi-station Working Position



Moisture Less Than 1PPM Vacuum Glove Box Glove Box Multi-station Working Position

 Moisture Less Than 1PPM Vacuum Glove Box Glove Box Multi-station Working Position

1.After an order is placed, when will you send to us?
Generally about 10 days, If we have it on stock, we can arrange shipment within 3 days.

2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.


3.What about the services and product' quality?

Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
