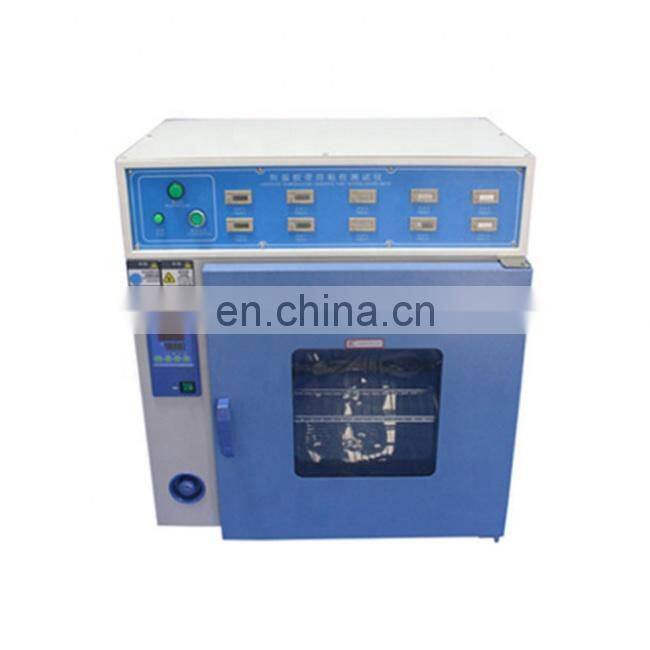

Temperature Adhesive Tape Retention Tester
Test board with adhesive tape vertically hang on the test rack, and hang stipulate weight of weights at end, arrording to the displacement of the sample after a certain time or the time of complete departure of the sample To test the ability of adhesive specimen to resist pulling.
Design Standard:
1.GB 4851 pressure sensitive adhesive tape holds the viscosity test method
2.JIS Z0237 pressure sensitive adhesive tape and pressure sensitive adhesive sheet test method
3.ASTM D3654 pressure sensitive band shear viscosity test method
Specification :
| Number of test group: | 10 groups |
| Standard roller: | 2000g±50g |
| Weights: | 1000g±10g(Contains the load board weight) |
| Test plate size | 50(L)mm×50(W)mm×1.5(D)mm |
| Auto-timer: | 0~9999H,59Min,59sec Switchable |
| Temperature Control: | Normal Temperature~200℃ |
| Temperature Display: | 0.1 ℃ |
| Heating Mode: | Heated air circulation |
| Weight: | 105KG |
| Size: |
97*55*110cm |
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
