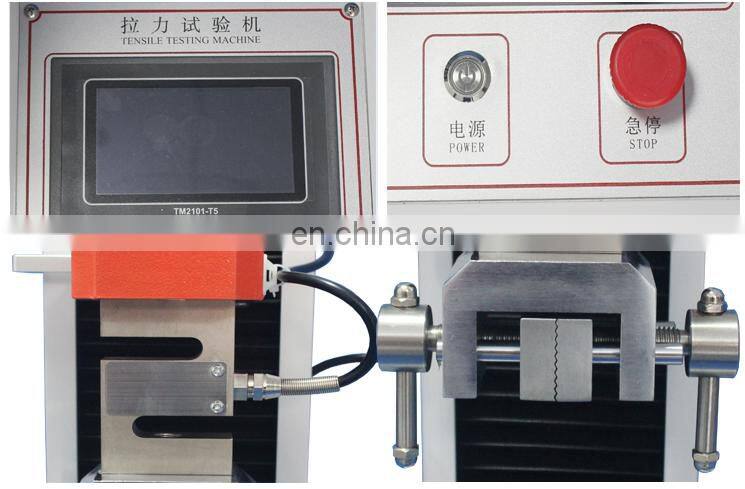

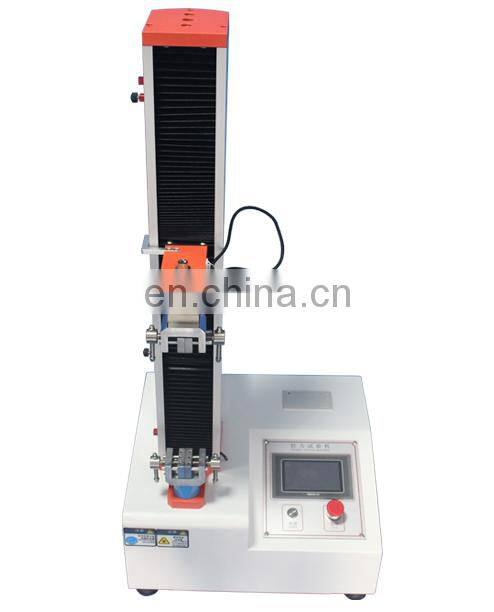

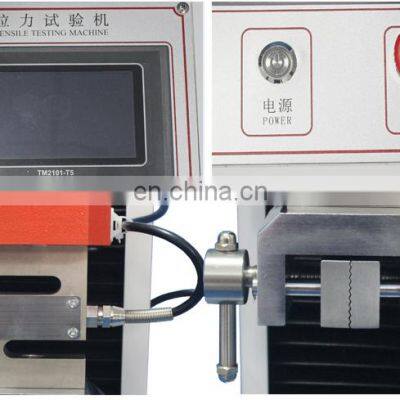

Universal Testing Machine Tensile Strength Test Machine for Yarn / Textile / Plastic
1. Application
Tensile tester is used to materials properties of static load, tensile, compression, bending , peel, pulling.It is widely applied to plastic plate, pipe, plastic, rubber,wire and cable materials, etc. It is the indispensable testing machine for physical properties testing,teaching and research, quality control.
2. Technical parameter
| Capacity | 100KG, 200KG, |
| Unit conversion | kgf, N |
| Resolution | 1/10000 |
| Power precision | <±0.5% |
| Test speed | 0-300mm/min |
| Test space | 600MM (without the jig) |
| Test width | Around 1200mm |
| Display data function |
The biggest force, displacement (deformation), time, breakpoint stop, power outage, fracture value, displacement stop |
| Graph data |
The biggest force, displacement (deformation), time (need to match the software and computer) |
| Form |
Maximum power point, the breaking point, displacement take point, test time, test pattern, the mean, standard deviation value (need to match the software and computer) |
Corresponding Standard:
ASTM D903,F2258,GB/T 2790/2791/2792, CNS-11888,JIS K6854,GB/T 6329,BS EN 14410-2003,YY/T 0729,GOST 21751 and other standards.
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
Mob: 0086-13712874307
wechat/whatsapp:008613712874307
skype:Peter.liu560
