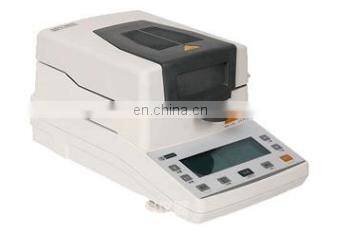

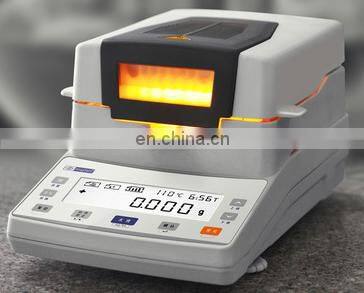

Halogen infrared moisture meter analyzer
APPLICATIONS:
Widely used in industrial, agriculture, laboratory applications. Some typical applications are: tobacco, paper, food, tea, corn, chemical, row materials and textile material, etc.
Technical parameters
|
Model |
W-110MW |
W-105MW |
W-102MW |
W-100MW |
|
|
Range(g) |
110 |
110 |
110 |
110 |
|
|
Readability(g) |
0.01 |
0.005 |
0.002 |
0.001 |
|
|
Operating Temp.Range |
5°C---35°C |
||||
|
Display |
LCD |
||||
|
Calibration |
External |
||||
|
Pan size(mm) |
Φ90 |
||||
|
Dimensions(W*L*H) |
200*180*380mm |
||||
|
Weight(Kg) |
5.8 |
||||
|
Heat modes |
Halogen lamp |
||||
|
Temp.sensor |
PT-100 |
||||
|
Temp.range |
40°C---199°C |
||||
|
Temp.step |
1°C |
||||
|
Moisture range |
0.00%---100% |
||||
|
Moisture readability |
0.2% |
0.1% |
0.04% |
0.01% |
|
|
Dry residual range |
100.00%---0.00% |
||||
|
Dry residual readability |
0.2% |
0.1% |
0.04% |
0.01% |
|
|
ATRO |
100%---999% |
||||
|
ATRO |
0%---999% |
||||
|
Temperature setting |
40°C---199°C by 1°C step |
||||
|
Time setting |
1-99min by 1s step |
||||
|
Auto stop |
0.1%-9.9% within 1 min |
||||
|
Number of Data storage |
15 |
||||
|
Heater |
220V+15%50Hz 115V+15% 400W |
||||
|
Connection |
R232 |
||||
|
Balance |
External power supply Input: 220V+15% 50Hz Output: 9V |
||||
|
Packing Dimension & Weight |
490*350*360mm Net weight: 7Kg |
||||
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
Mob: 0086-13712874307
wechat/whatsapp:008613712874307
skype:Peter.liu560
