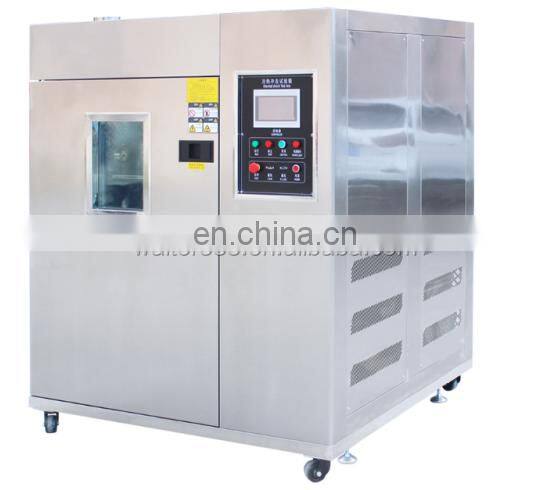

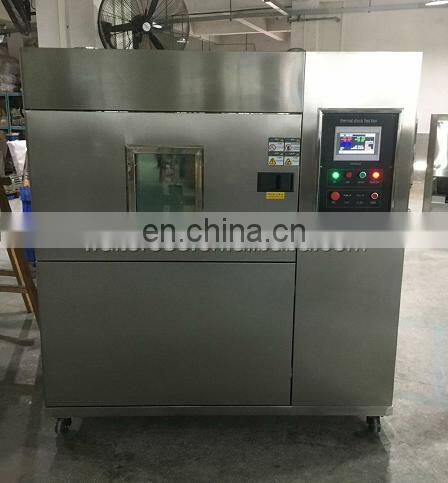

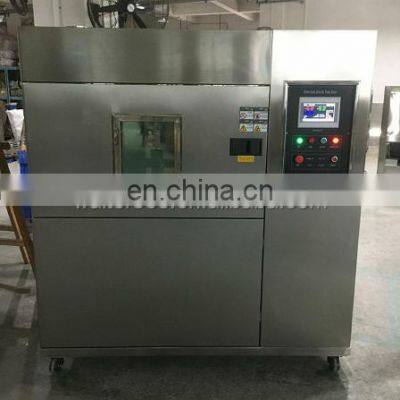

2 zones or 3 zones Type Thermal Shock Test Chamber
General description:
Thermal shock test chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics and other materials can be used as a basis to improve their products or reference.
Special features:
1.Precision LCD touch panel controller, can display Chinese / English.
2.High formula memory capacity can be set to 120 patterns. The maximum cycle setting is 9999 times. The maximum setting time of each pattern is 9999 hours 59 minutes.
3. Equipped with RS-485C communication interface port, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
4. Both 2 zone and 3 zone chambers can be chosen. The inner chamber size can be customized as per your request.
5. All systems are fully automatic, and all process are precisely controlled with P.LC' s.
6. If any parts have errors, the machine will automatically shuts down and a warning light switches on.
7. Thermal shock test chamber can be shut down automatically in case of electrical power failure.
|
Model |
W-60: 500x300x400 mm W-100: 500x500x400 mm W-150: 600x500x500 mm |
|
Temperature Range of Test zone |
Type A:-40 ºC~+150ºC Type B:-60ºC ~+150ºC |
|
|
High temperature Range of Testing zone: +60~+150ºC Low Temperature Range of Testing Zone: -10ºC~-40ºC |
|
Exposure Time of High / Low Temperature |
Exposure Time of High Temperature:+60ºC~+150ºC 30Mins |
|
|
Exposure Time of Low Temperature:-10ºC~Type B:-40ºC |
|
Temp of Heat-Storing Slot / Heating Time |
RT~150ºC/About 45mins |
|
Temp of Cool- storing Slot / Cooling Time |
RT~-40ºC/ About 100mins |
|
Temperature Recovery Time |
≤5min/≤5sec |
|
Precision Temperature Control |
±0.5ºC/±2ºC |
|
Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated |
|
Insulation Material |
High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials |
|
Mechanics |
P.I.D+S.S.R+ Micro-computer balanced temperature control system |
|
Cooling System |
Hermetic double-stage compressor (air-cooled type) |
|
Security Protection Devices |
Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm |
|
Accessories |
viewing window(special order) |
|
Compressor |
French Tecumseh Brand, German Bizer Brand |
|
Power |
AC380V 3ø 5 lines,50/60HZ |
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
