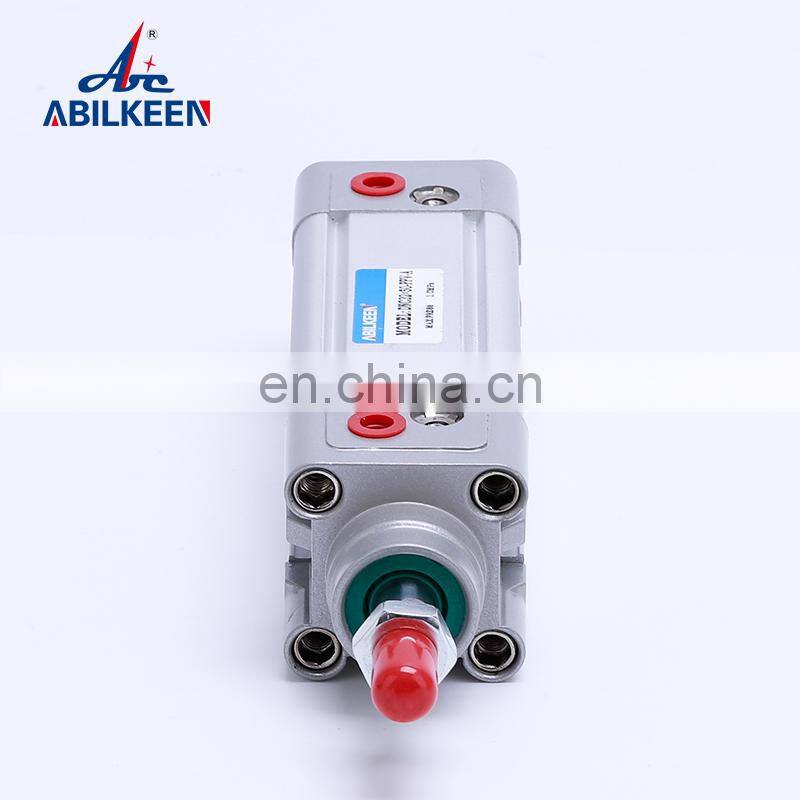

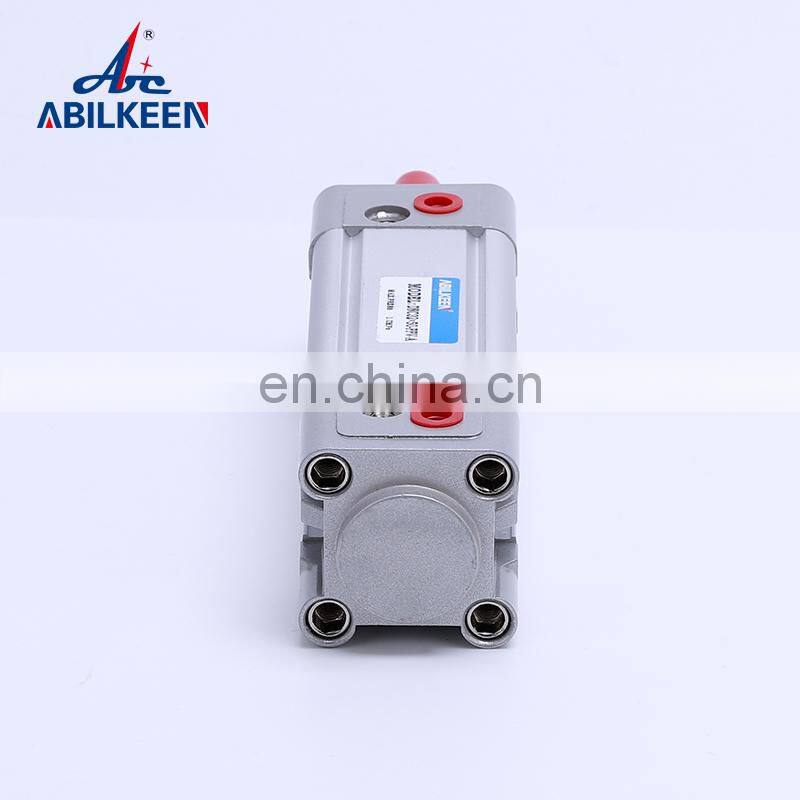

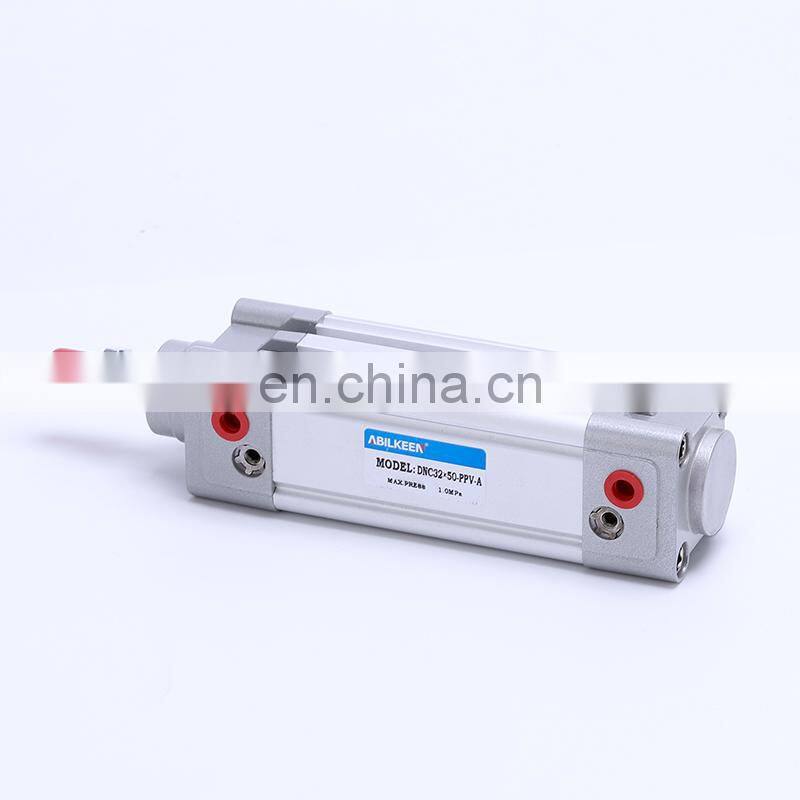

DNC Series Standard China Suppliers IndustriesPiston Pneumatic Double Acting Air Pneumatic Cylinders
Operating Principle:
The Piston in the Cylinder Bears the Thrust or Tension Generated by Air Pressure, Which Acts Directly on the Piston Rod Connected with the Piston, and then Moves Back and Forth from the Piston Rod Connected to the Load Workpiece.
Feature:
DNC Standard Series Cylinder
Double acting double out system
Made of high-quality materials, resistant to rust and corrosion, and durable.
Easy to install and remove, easy to operate, no additional tools or accessories required.
The forces allowed at different speeds are different.
Adjustable stroke
Working Fluid:Air
|
Model |
DNC32 |
DNC40 |
DNC50 |
DNC63 |
DNC80 |
DNC100 |
DNC125 |
|
Bore size (mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
Thread size |
G1/8 |
G1/4 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G1/2 |
|
Standard stroke(mm) |
25-1000 |
||||||
|
Piston port size |
M10*1.25 |
M12*1.25 |
M16*1.5 |
M16*1.5 |
M20*1.5 |
M20*1.5 |
M27*2 |
|
Available accessories |
FA:Front flange FB:Rear flange CA:Single clevis CB:Double clevis LB:Foot bracket Y:Y joint I:I joint
|
||||||
|
Derived type |
DNC-S:with magnet DNCD:double rod DNCJ:double rod adjustable
|
||||||
|
Operation pressure |
0.1-0.9MPa |
||||||
What model would you like? Click here to send us an enquiry,we will reply you ASAP.
Q1. What is your terms of packing? Pneumatic Air Cylinder
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Pneumatic Air Cylinder
Q2. What is your terms of payment? Pneumatic Air Cylinder
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Pneumatic Air Cylinder
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? Pneumatic Air Cylinder
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
If you have any other questions, please send us an enquiry,we will reply you ASAP.
