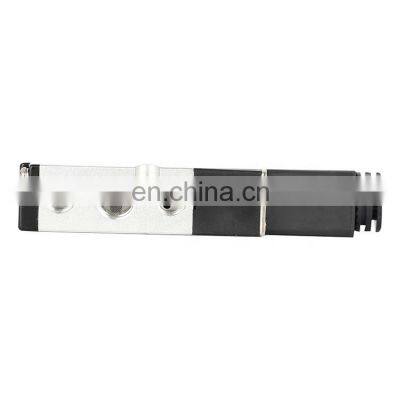

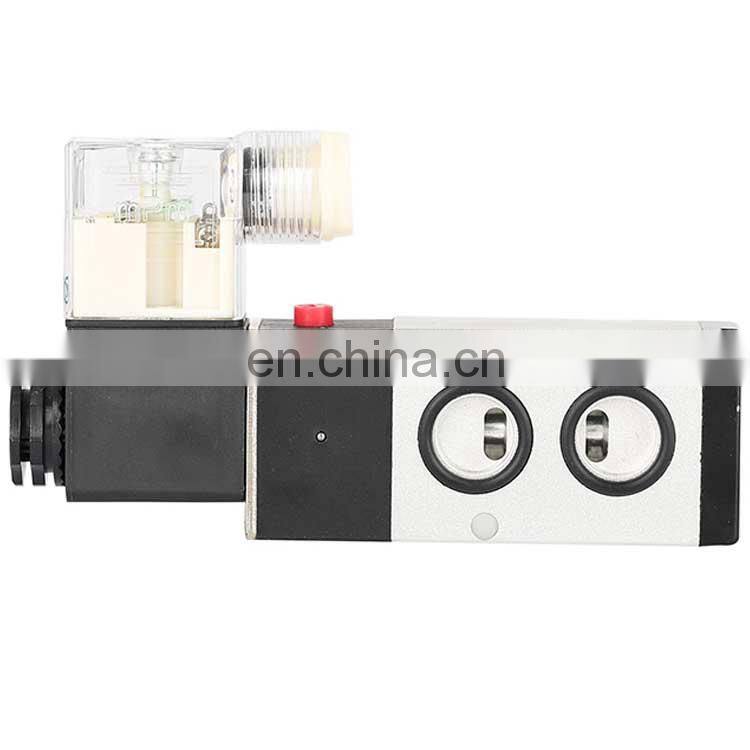

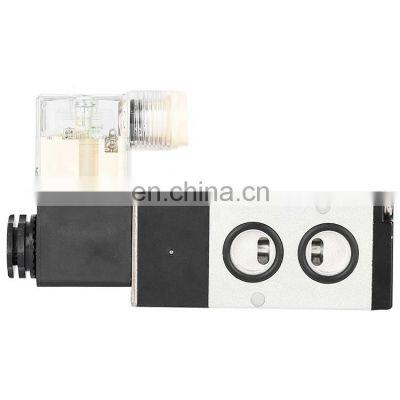

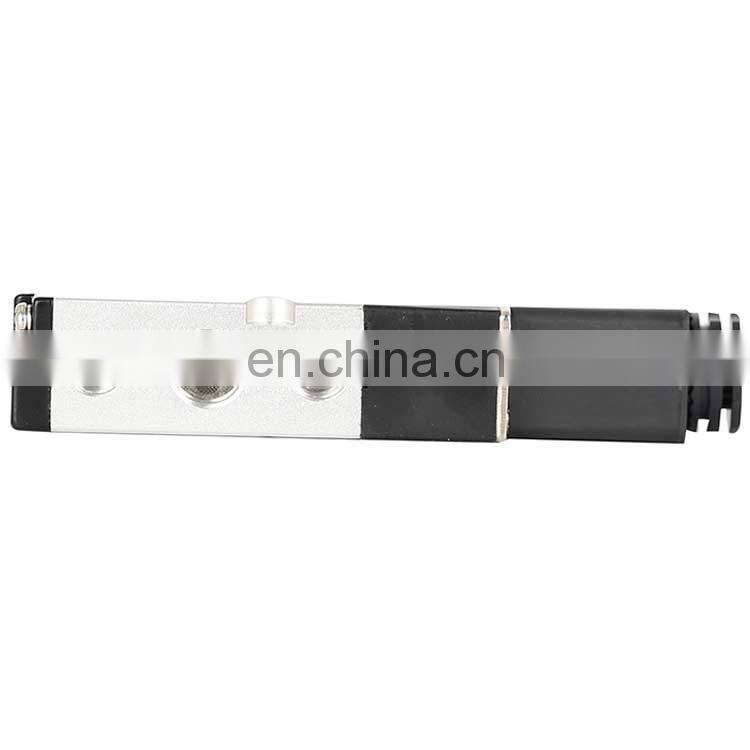

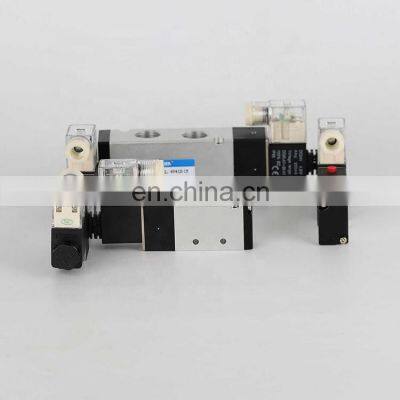

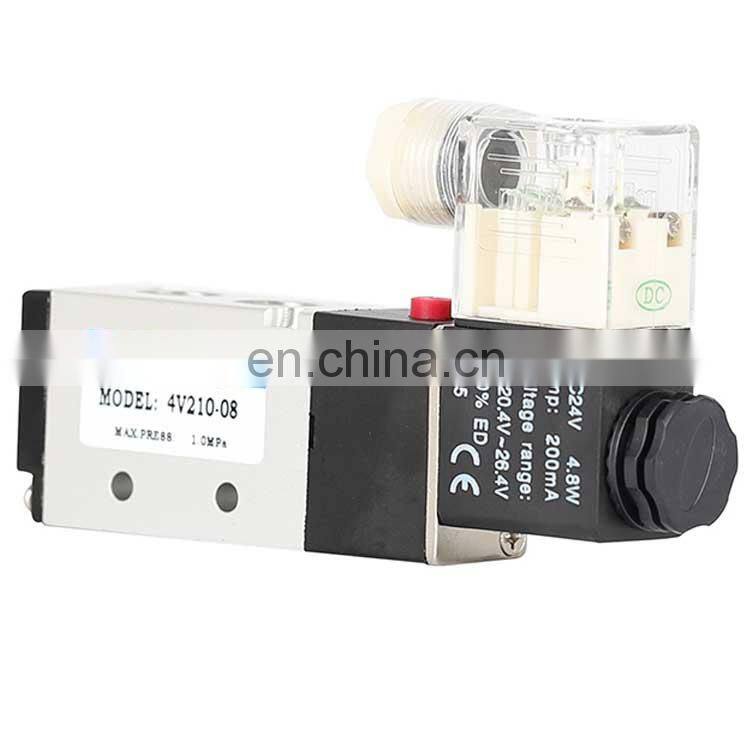

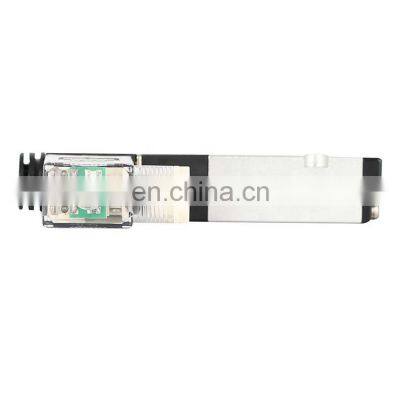

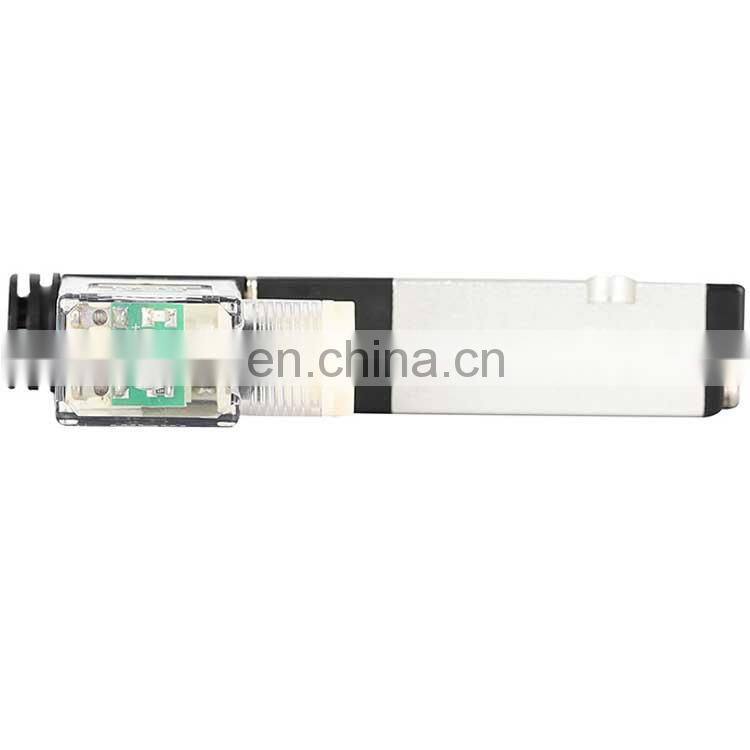

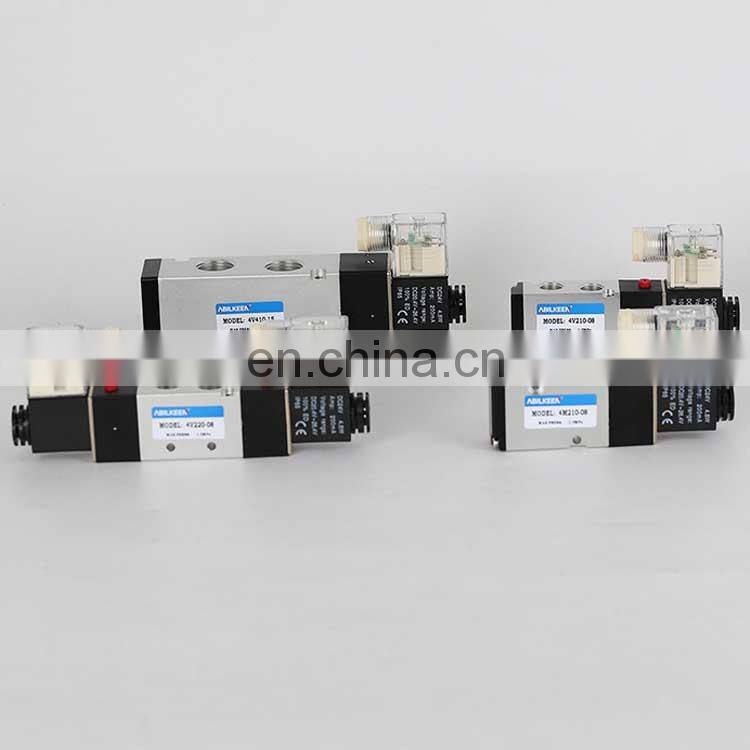

Automatic 5/2 Way Internally Piloted Acting Type AC220V 110V Single Electrical Pneumatic Air Control Solenoid Valve
Feature:
Model Description
4V Series 4V110-06
OEM accepted , Sampling accepted
Sealing material: NBR
Voltage: AC, DC
Wiring Form: Lead wire type
Max. Frequency: 5 cycles/second
Shortest Activate Time: 0.05 second
Isolation class: F
Good tightness
Sensitive reaction
Available to form integrated valve group with base
Power Consumption: DC12V/24V,AC110V/220V/380V
Easy to install and remove, easy to operate, no additional tools or accessories required.
Quality testing provides maximum reliability and performance even in the harshest environments.
Widely used in various pneumatic instruments and other pneumatic equipment.
We have multiple specifications, if you need, you can click other links in the store or consult customer service staff. Thank you.
| Model |
4V110-06 |
4V210-08 |
4V310-10 |
4V410-15
|
4V120-06
|
4V130-06C
|
4V130-06E
|
4V130-06P
|
4V230-08P
|
|
| Port size RC(PT) | 1/8'' | 1/4'' | 3/8'' | 1/2'' | 1/8'' | 1/8'' | 1/8'' | 1/8'' | 1/4'' | |
| Effective area | 12mm² | 16mm² | 30mm² | 50mm² | 10mm² | 9mm² | 9mm² | 9mm² | 12mm² | |
| CV value | 0.67 | 0.89 | 1.67 | 2.79 | 0.67 | 0.5 | 0.5 | 0.5 | 0.78 | |
| Fluid | Air | |||||||||
| Proof pressure | 0.15-0.8Mpa | |||||||||
| Max.operating pressure | 10.5kgf/cm² | |||||||||
| Ambient & fluid temperature | -20~70°C | |||||||||
| Voltage | DC12VDC24V AC24VAC36VAC110VAC220VAC380V | |||||||||
| Value type | 5/2 way | 5/3 way | ||||||||
| Main parts material | Body | Aluminum alloy | ||||||||
| Seal | NBR | |||||||||
| Protection | IP65 | |||||||||
What model would you like? Click here to send us an enquiry,we will reply you ASAP.
Q1. What is your terms of Air Source Treatment packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
If you have any other questions, please send us an enquiry,we will reply you ASAP.
