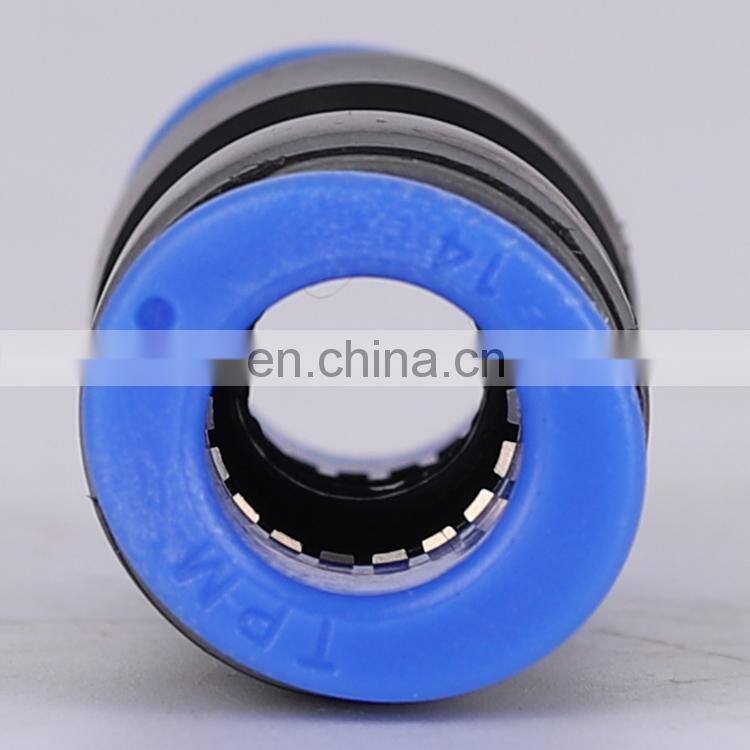

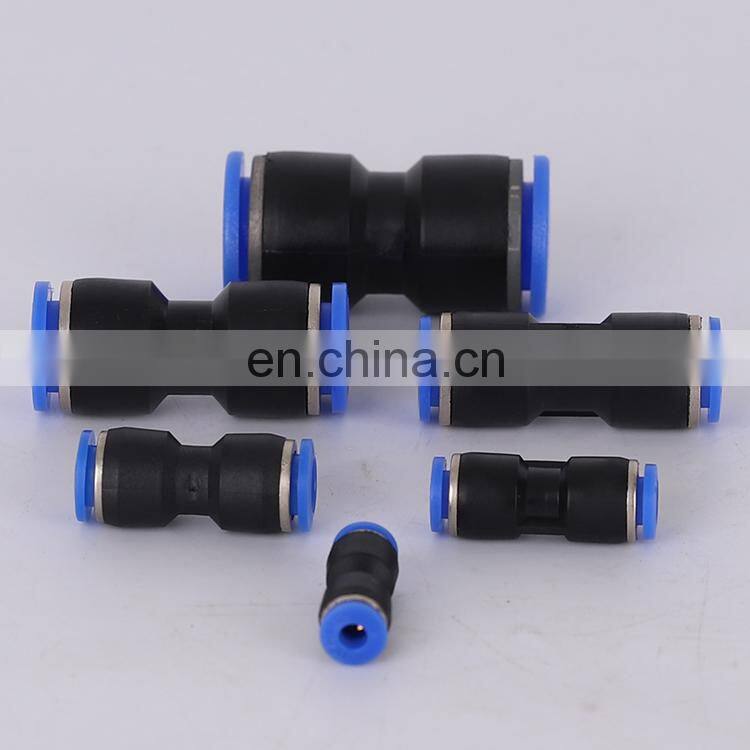

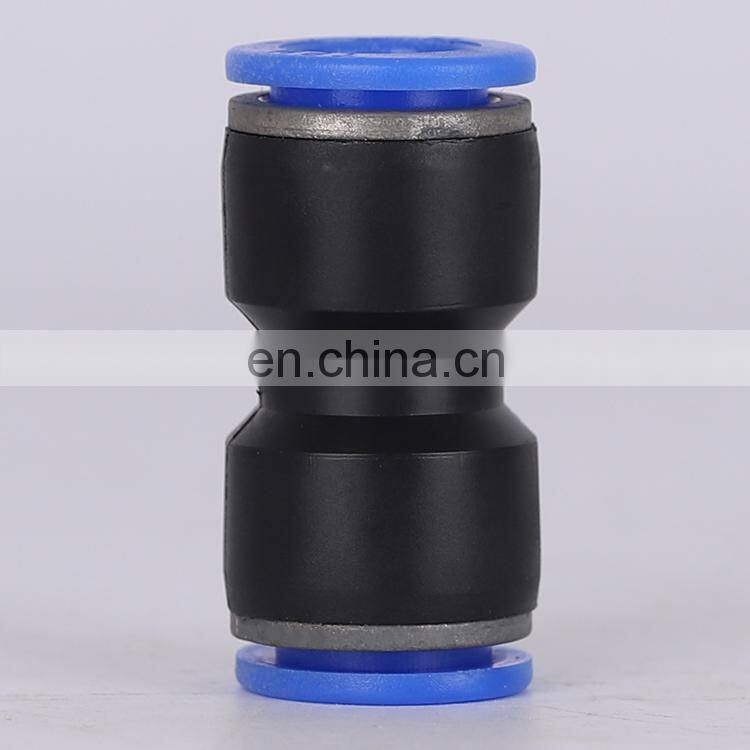

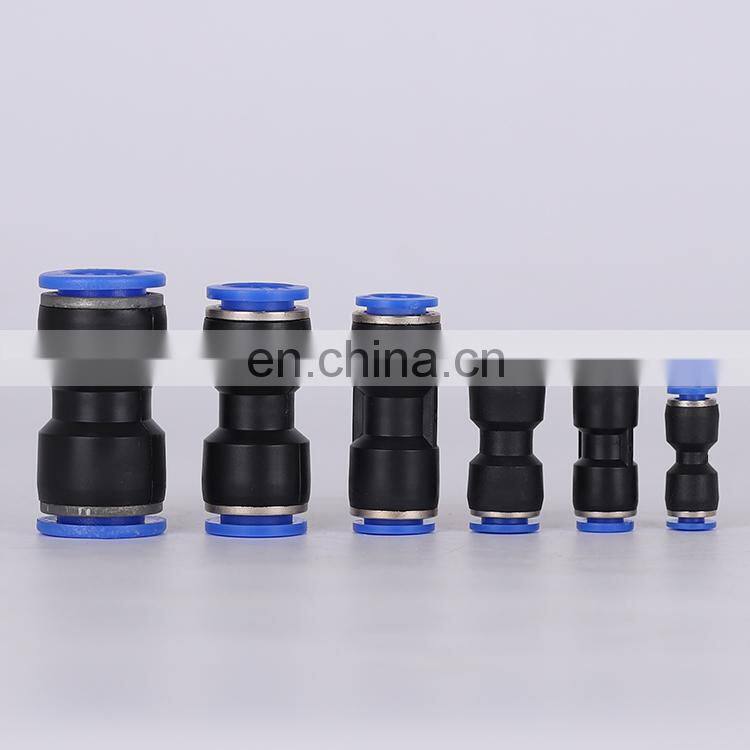

M4 M6 M8 M10 M12 PU Types Of Push In Straight Connector Plastic One Touch Air Hose Fittings Pneumatic
Product Feature
1, High Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.
2, The Product is Sturdy and Durable and Has a Long Service Life.
3, Easy Installation and Disassembly, Good Sealing Performance.
4, It Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
5, You Can Easily Insert or Pull out the Trachea Without Any Tools
6, The Clip of Connecting Air Pipe is Made of Strong Plastic Material, Which is Not Easy to Fall off After Connection Adopt Sealing Component, Keep Good Sealing, Not Easy to Leak.
7, Freely Change Pipeline Direction After Installation,Easy to Insert or Pull Trachea Manually Without Tools.
Directions for use!
1, The Tube Fitting is Prohibited Where Spark and Fire Might Be Occurred.
2, Do Not Exceed 145Psi Pressure.
3, Working Temperature: 0-60°c,do Not Use Outside the Service Temperature Range to Prevent Deformation of the Sealing Material and Easy Leakage.
4, Do Not Use in Places with Too Much Dust or Particles
5, Do Not Use Any Medium Other Than Air. the Product is Limited to Air or Vacuum Environment.
6, After Completing the Connection, Please Gently Pull the Tube with Your Hand to Make Sure That It is Completely Connected Without Falling Off.

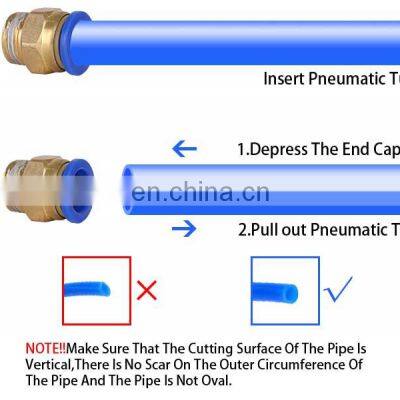

7, Make Sure That the Cutting Surface of the Pipe is Vertical, There is No Scar on the Outer Circumference of the Pipe and the Pipe is Not Oval.
8, Never Apply Tube Joint with Additional External Load(bending,twist or Pulling),otherwise Damage or Leakage Will Be Occurred.
9, When Inserting the Pipe, It Must Be Inserted into the Bottom of the Joint. Failure to Insert the Pipe into the Bottom May Lead to Air Leakage.
Status of Use
What model would you like? Click here to send us an enquiry,we will reply you ASAP.
Model:
Specifications:
| Operating Pressure | 0-1.0MPa | 0-150psi |
| Operating Temperature | 0 - 60 °C |
| Medium | Air - Water - Vacuum |
| Applicable Tube | PU / PA / PE / PVC |
| Features |
1.Designed for Polyurethane or Nylon tubing. 2.Simple installation pneumatic push in connector. 3.After installation, the direction of the tube can be changed freely. 4.Elliptical release ring help to connect tube easily by manual, no special tools required. 5.Outside (and Inside where applicable) hexagonal wrench tightening. 6. PV fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment. |
| Note |
1.Due to the difference between different monitors, the picture may not reflect the actual color of the item. and quantities for your choice,the more your purchase the best price you get. Thank you! |
Q1. What is your terms of packing? Air Pneumatic Fitting
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
If you have any other questions, please send us an enquiry,we will reply you ASAP.
