Product Description

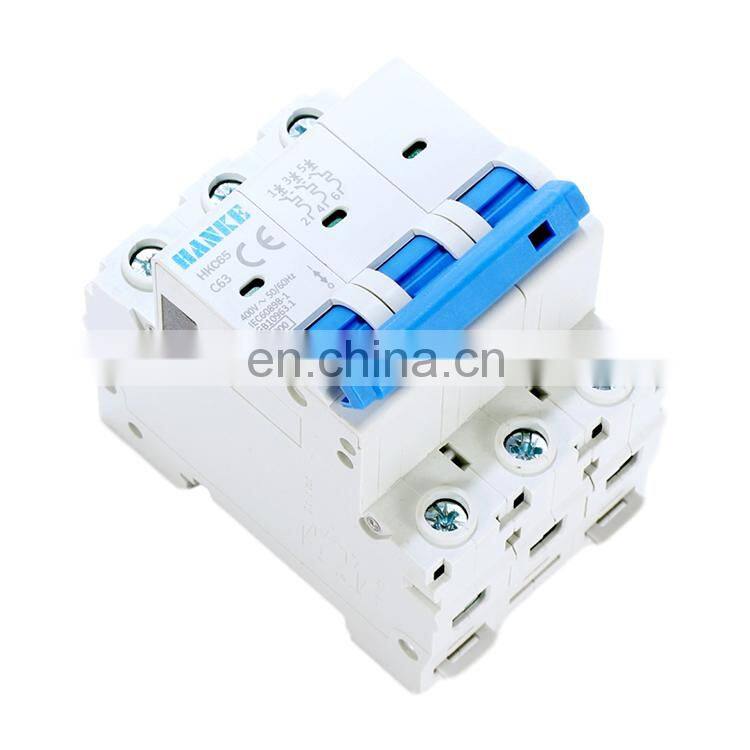

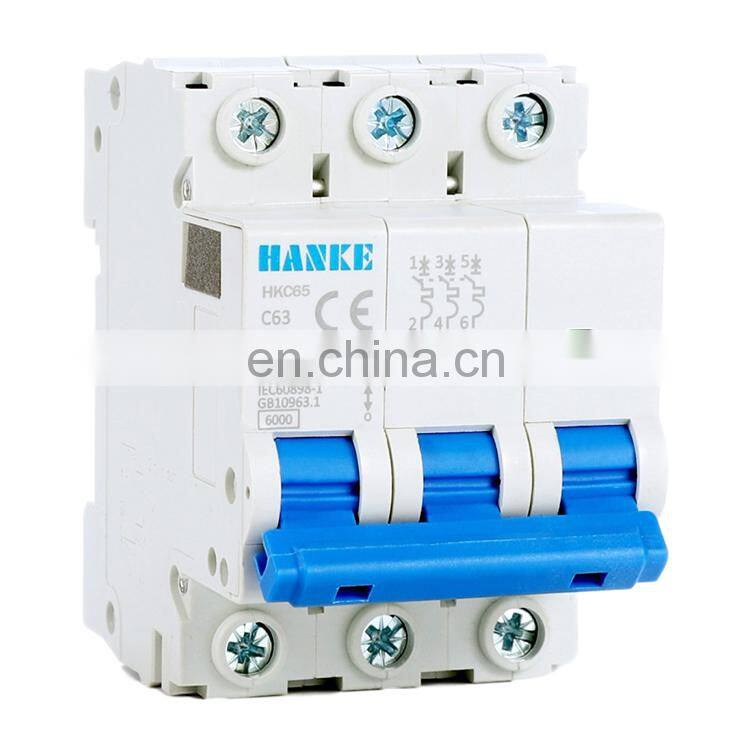

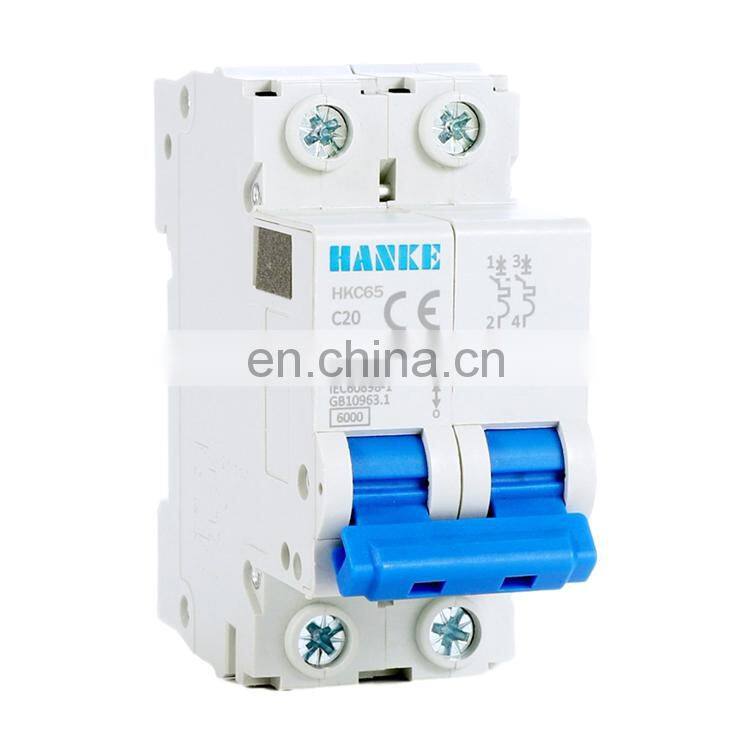

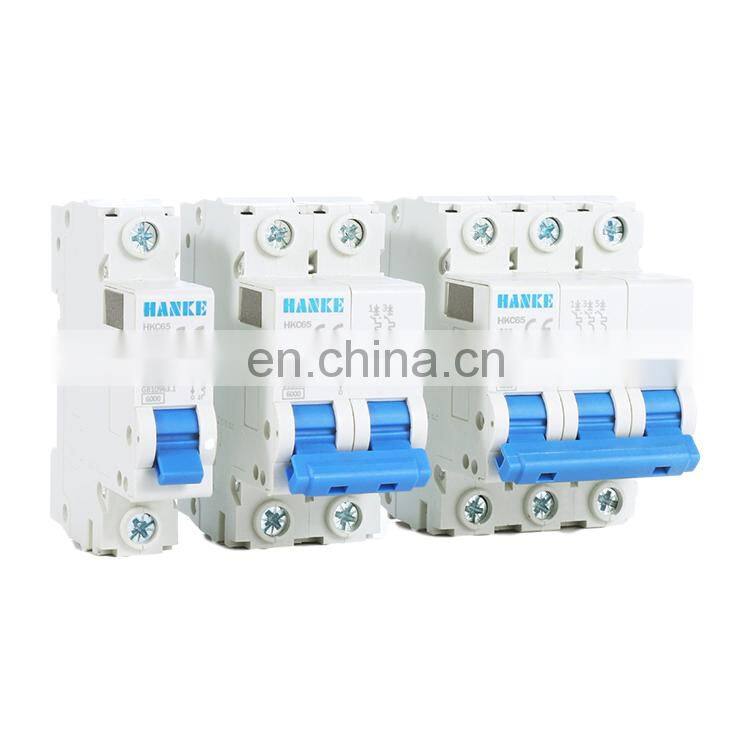

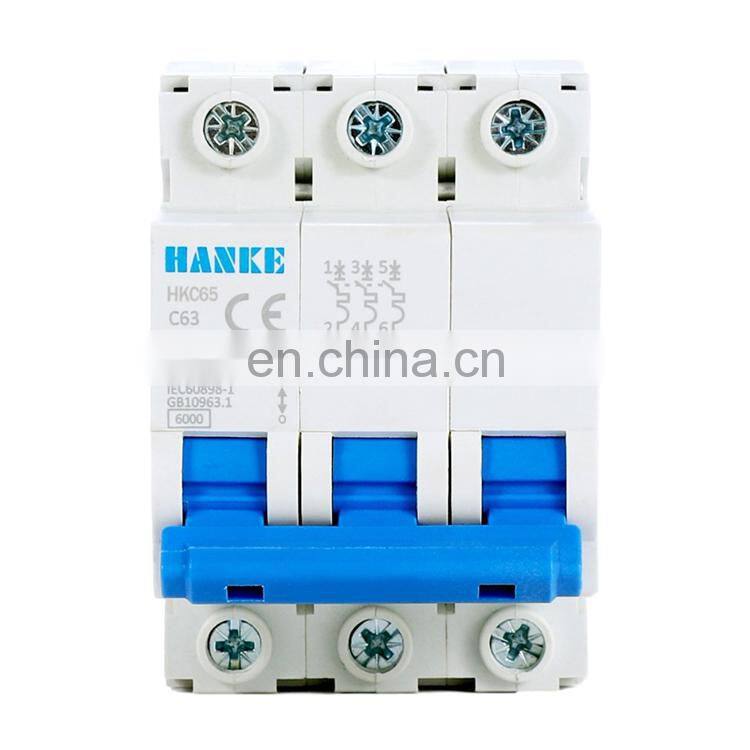

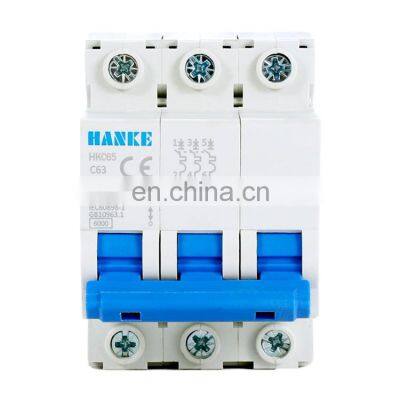

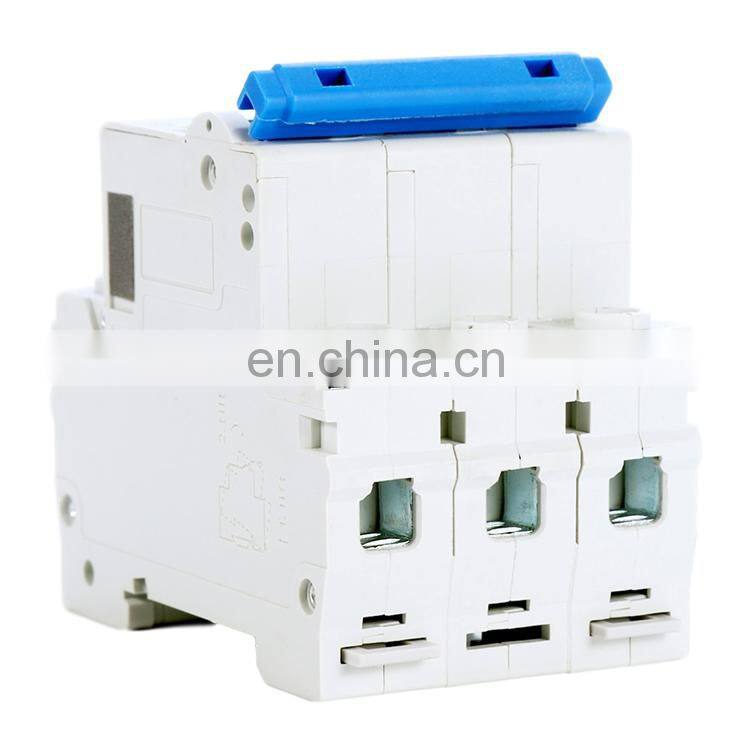

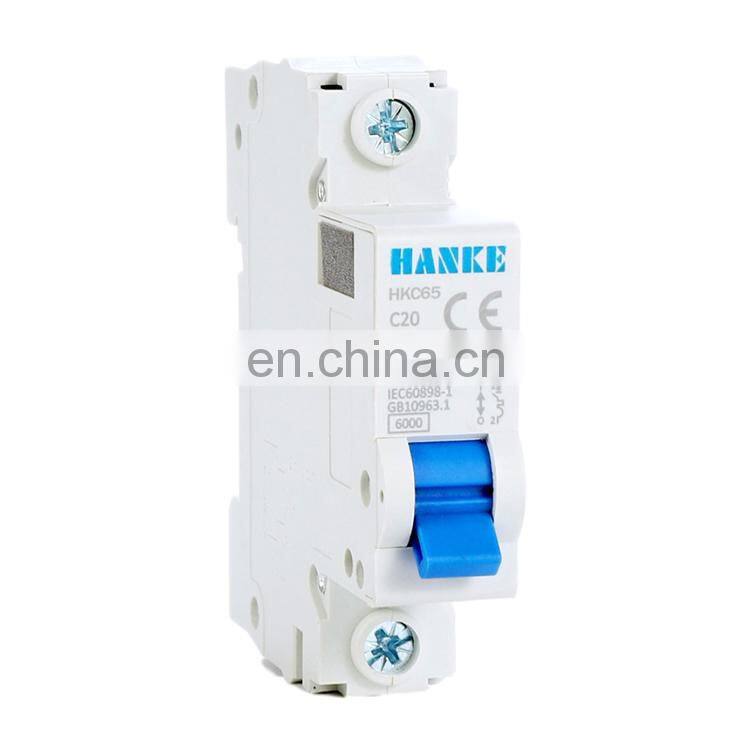

HKC65 Series Miniature Circuit Breaker

1. Application

HKC65 are applicable to a line of AC 50Hz/60Hz, 230V in single pole, 400V in double, three,four poles for protecting overload and short circuit, and rated current up to 63A. It can also beused for infrequent line conversion under the normal condition. The breaker is applicable tolighting distribution system in industrial enterprise, commercially district, high-rise building anddwelling house. It conforms with the standards of IEC60898.

2. Main Technical Parameter

Type	HKC65
Pole	1P	2P, 3P, 4P
Rated current (A)	6,10,16,20,25,32,40,50,63
Rated voltage(V)	230	400
Ambient temperature	-5^oC~+40^oC
Type of instantaneous release	B,C,D
Rated short circuit breaking capacity Icn(KA)	6

3. Applicable conducting wire

Rated current(A)		Norminal cross section of wire mm2
1-6A		1
10A		1.5
16,20A		2.5
25A		4
32A		6
40,50A		10
63A		16

4. The over-current protection property

Ambient Temperature	Initial Status	Test Current	Expected Result	Expected Result	Note
30±2^oC	Cold position	1.13In	t≥1h	Non-release	-
	Carried out immediately after previous test	1.45In	t<1h	Release	-
	Cold position	2.55In	1s<t<60s	Release	Current smoothly rises to specified value within 5s
	Cold position	2.55In	(In≤32A)	Release
	Cold position	2.55In	1s<t<120s	Release
	Cold position	2.55In	(In>32A)	Release
-5^oC~+40^oC	Cold position	3In	t≥0.1s	Non-release	Type B
	Cold position	5In	t<0.1s	Release	Type B
	Cold position	5In	t≥0.1s	Non-release	Type C
	Cold position	10In	t<0.1s	Release	Type C
	Cold position	10In	t≥0.1s	Non-release	Type D
	Cold position	20In	t<0.1s	Release	Type D
