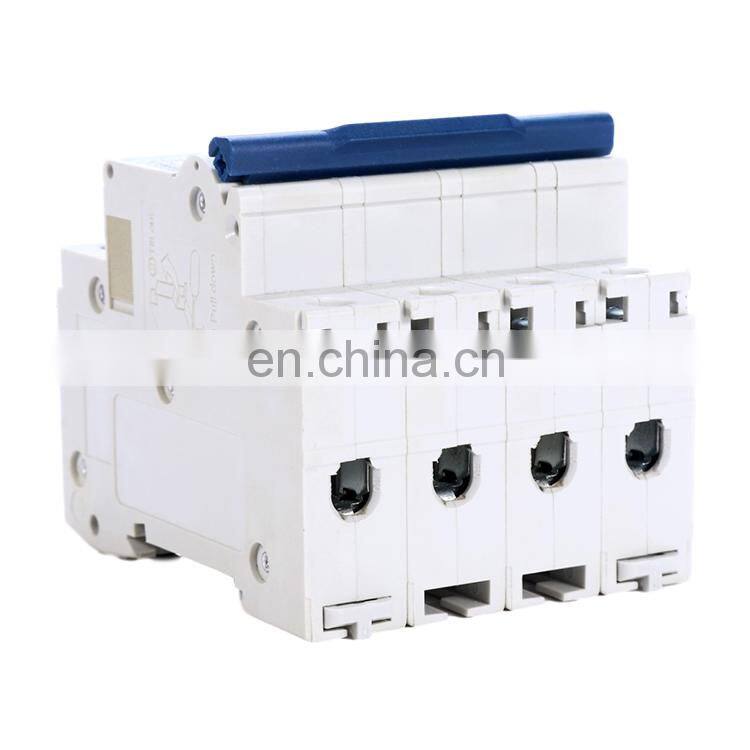

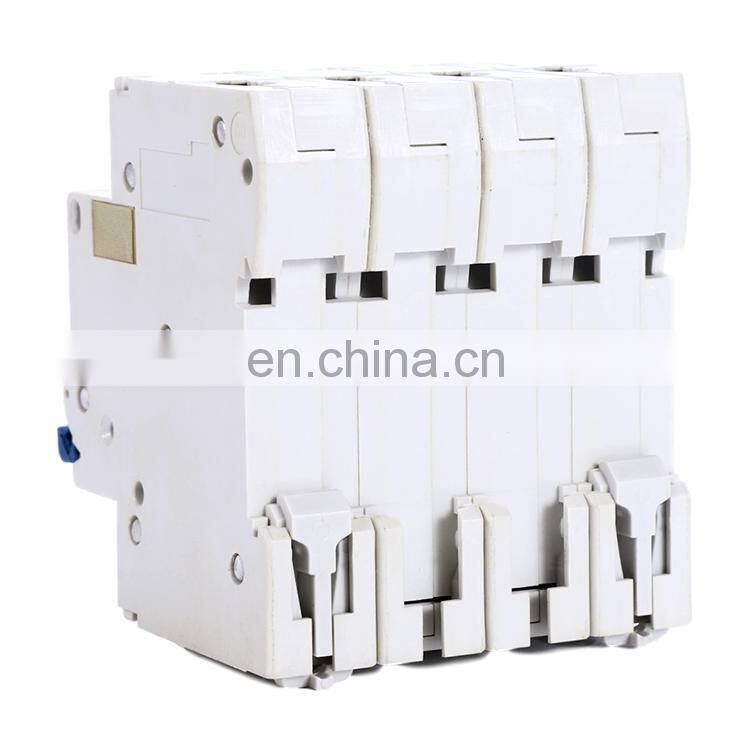

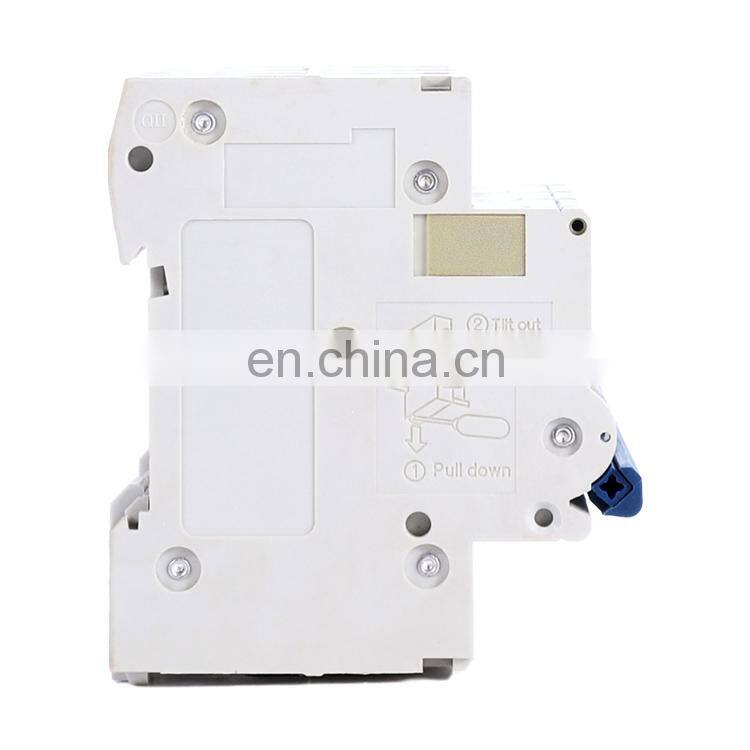

Miniature Circuit Breaker C65N C60N OEM & ODM Micro Mini Circuit Breaker MCB Overload Protection Breaker
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Standard Breaker Circuit Latest Arrival dc China Circuit BreakerNegotiableMOQ: 1 -
Custom Oem China Safety Circuit Breaker Promotional Circuit Breaker PriceNegotiableMOQ: 1
-
Newest Selling Safety Breaker Circuit Breaker Types China Cheap Circuit Breaker PriceNegotiableMOQ: 1
-
Hot Popular Circuit Breaker Device New Innovative Product Circuit Breaker McbNegotiableMOQ: 1
-
New Innovative Product White Circuit Breaker High Standard Safety Circuit BreakerNegotiableMOQ: 1

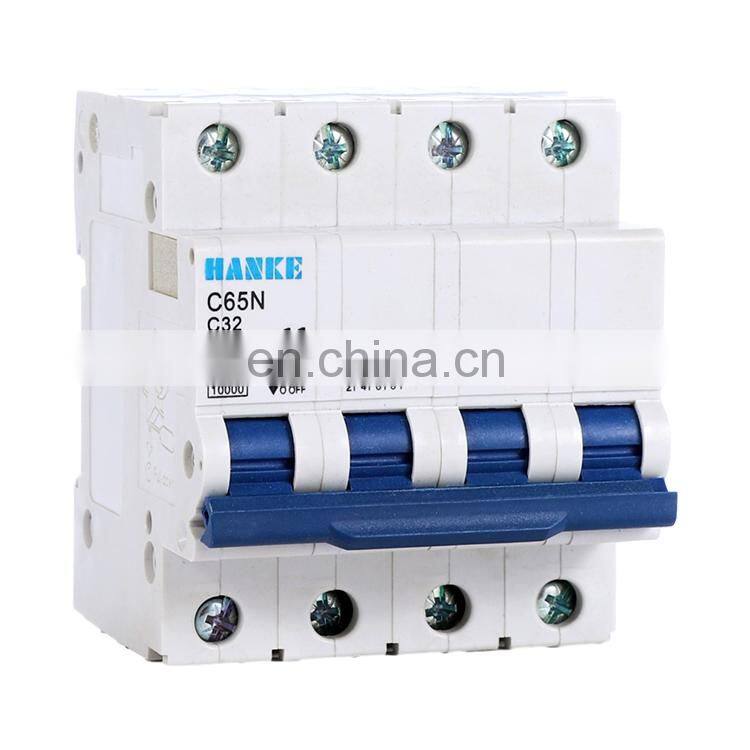

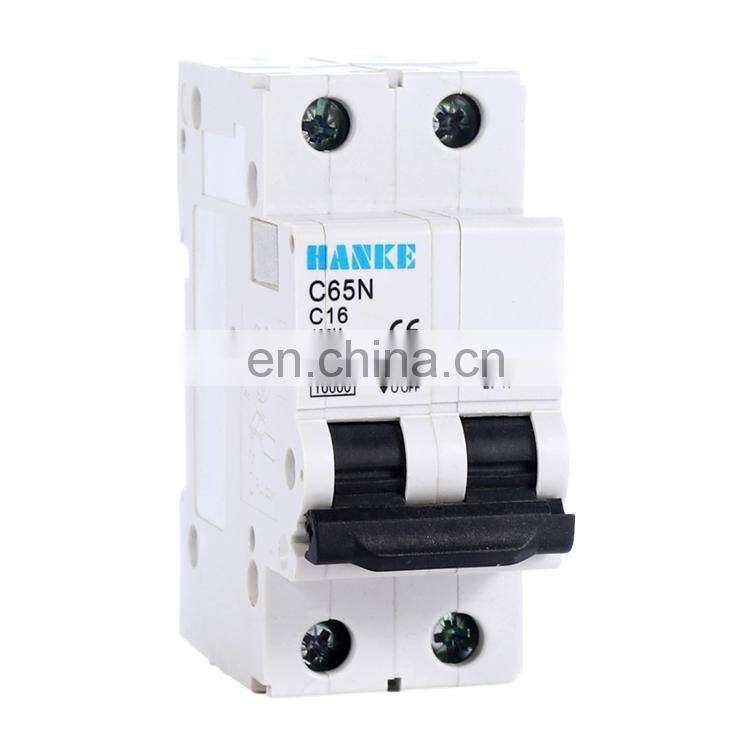

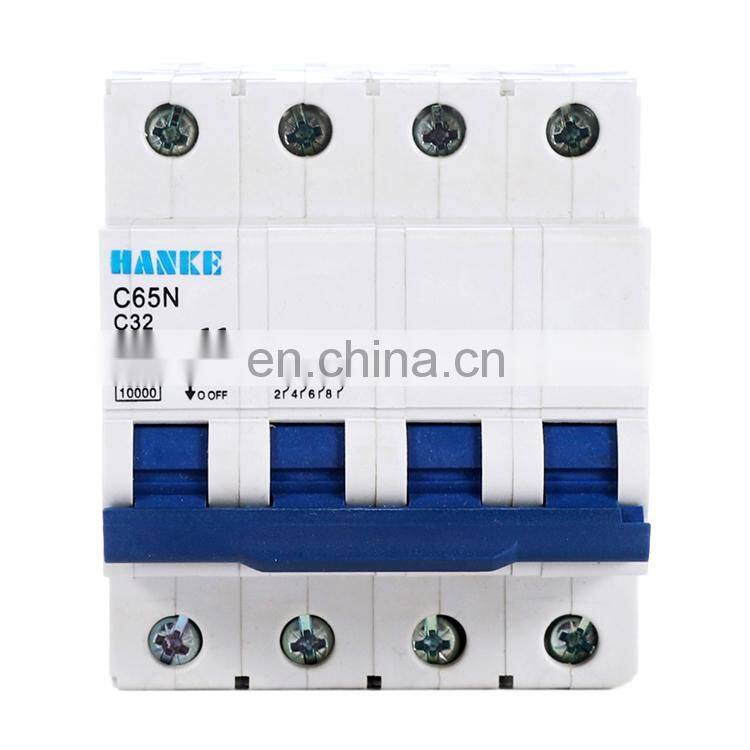

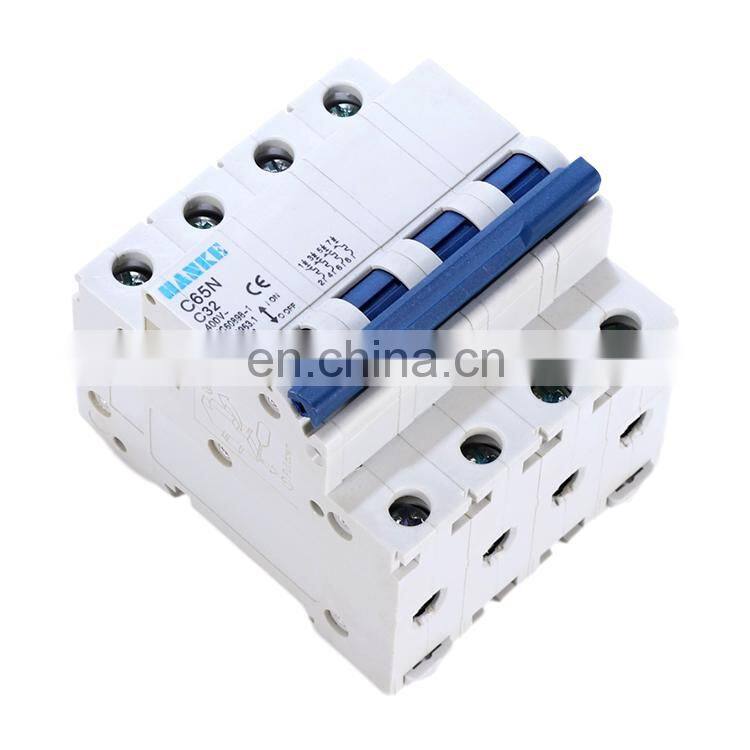

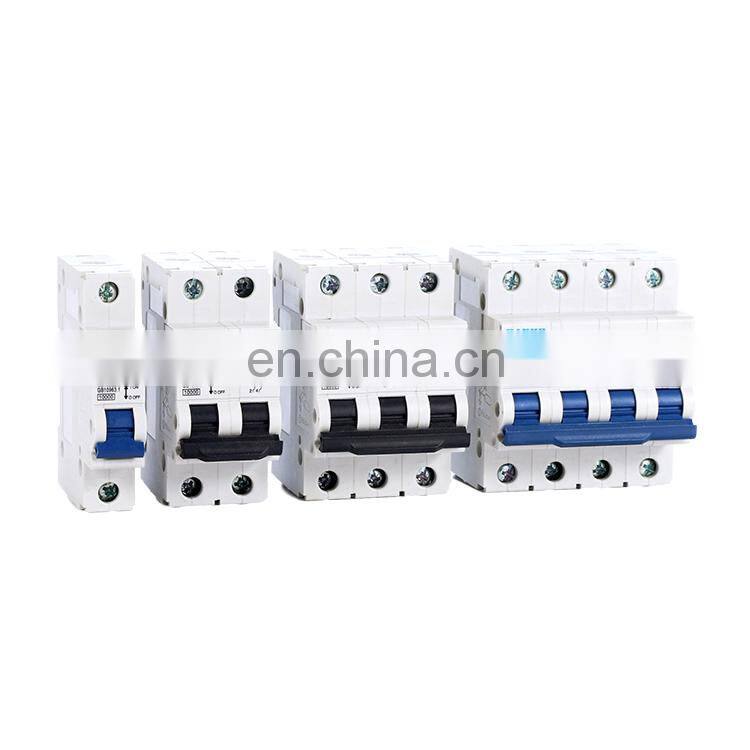

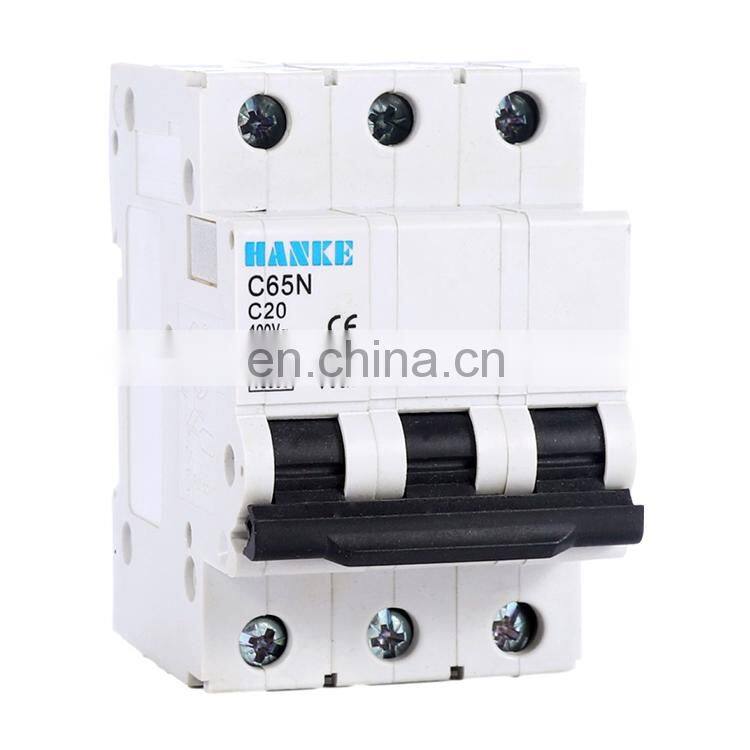

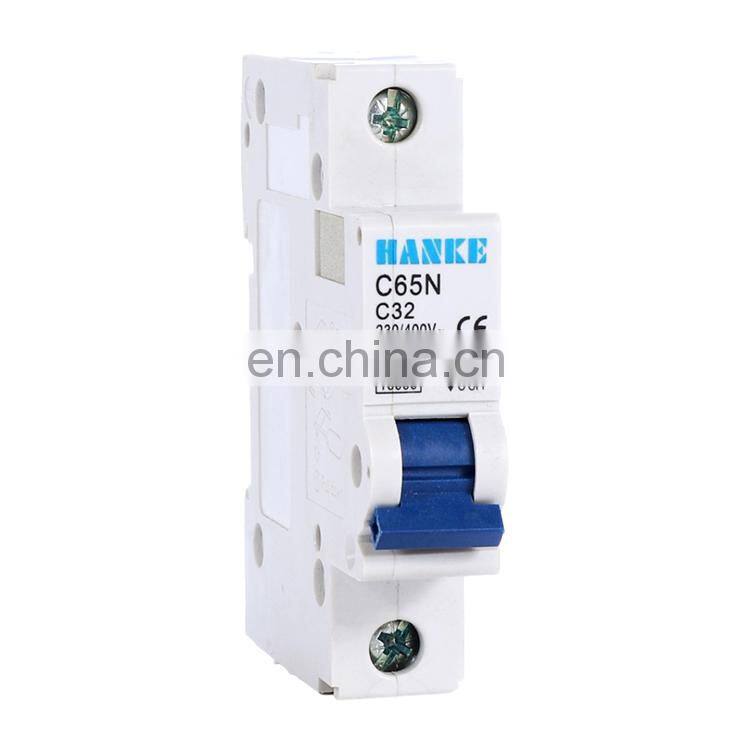

| C65N Series Miniature Circuit Breaker |
|
| C65N Series is applicable to a line of AC 50Hz/60Hz, 230V in single pole, 400V in double, three,four poles for protecting overload and short circuit, and rated current up to 63A. It can also beused for infrequent line conversion under the normal condition. The breaker is applicable tolighting distribution system in industrial enterprise, commercially district, high-rise building anddwelling house. It conforms with the standards of IEC60898. |
| 2. Main Technical Parameter |
| Type | C65N | ||||
| Pole | 1P | 2P, 3P, 4P | |||
| Rated current (A) | 6,10,16,20,25,32,40,50,63 | ||||
| Rated voltage(V) | 230 | 400 | |||
| Ambient temperature | -5oC~+40oC | ||||
| Type of instantaneous release | B,C,D | ||||
| Rated short circuit breaking capacity Icn(KA) | 6 | ||||
| 3. Applicable conducting wire |
| Rated current(A) | Norminal cross section of wire mm2 | ||||
| 1-6A | 1 | ||||
| 10A | 1.5 | ||||
| 16,20A | 2.5 | ||||
| 25A | 4 | ||||
| 32A | 6 | ||||
| 40,50A | 10 | ||||
| 63A | 16 | ||||
| 4. The over-current protection property |
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | Note |
| 30±2oC | Cold position | 1.13In | t≥1h | Non-release | - |
| Carried out immediately after previous test | 1.45In | t<1h | Release | - | |
| Cold position | 2.55In | 1s<t<60s | Release | Current smoothly rises to specified value within 5s | |
| (In≤32A) | |||||
| Cold position | 2.55In | 1s<t<120s | Release | ||
| (In>32A) | |||||
| -5oC~+40oC | Cold position | 3In | t≥0.1s | Non-release | Type B |
| Cold position | 5In | t<0.1s | Release | Type B | |
| Cold position | 5In | t≥0.1s | Non-release | Type C | |
| Cold position | 10In | t<0.1s | Release | Type C | |
| Cold position | 10In | t≥0.1s | Non-release | Type D | |
| Cold position | 20In | t<0.1s | Release | Type D |

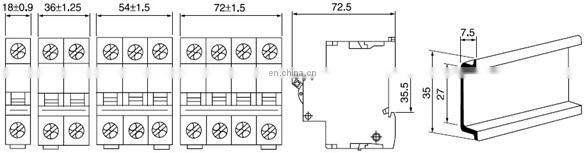

| 5. Dimension |
Q1: Are you a circuit breaker factory or a circuit breaker from a trading company?
A1: We are a factory of circuit breaker.
Q2: Can samples be provided for free?
A2: Samples can be provided, but the sample cost should be paid by you. Sample fees will be refunded after further ordering.
Q3: Do you accept customized orders?
A3: Yes. We can provide OEM, ODM services.
A4: We accept TT, 30% deposit and 70% balance before give delivery.
Q5: When is the delivery time?
A5: It usually takes 15-25 days to confirm payment after LY, but the specific time should be based on the order quantity.
Q6: Tell me the standard of package?
A6: Export standard package or special package according to customer requirement.
