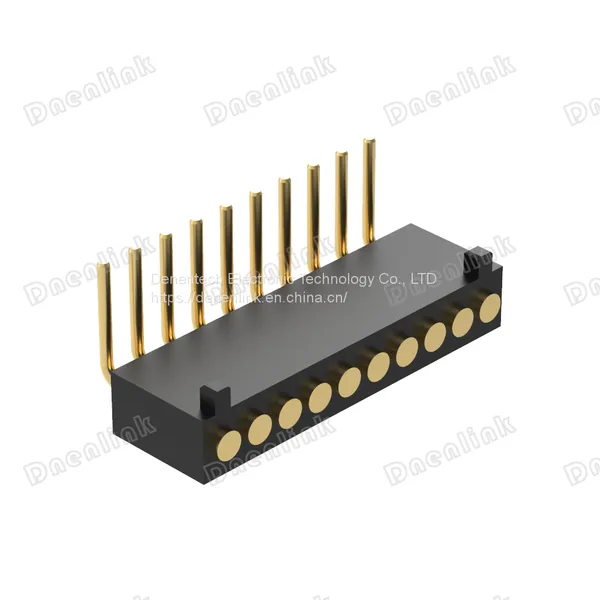

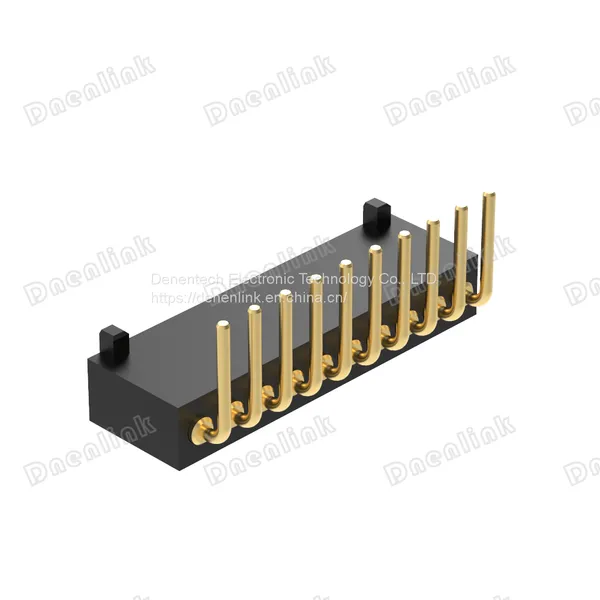

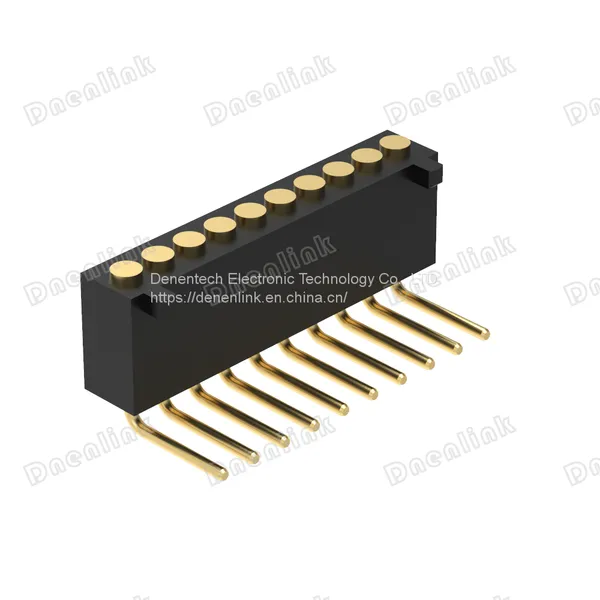

Dnenlink 1.27mm Pitch Single Row H4.0mm Plane Contact Right Angle DIP Type Female Header PogoPin Header With Peg
US$ 1 - 1.3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Dnenlink
Place of Origin:
China
Model Number:
HPF1-XXS41XXXPYX
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dnenlink 2.54mm Pitch Triple Row H4.0mm Concave Contact Right Angle Female Header DIP Type PogoPin Header With PegUS$ 3 - 3.9MOQ: 100 Pieces -
Dnenlink 2.54mm Pitch Triple RowH2.5mm Plane Contact Straight Female Header DIP Type PogoPin HeaderUS$ 1.2 - 2.1MOQ: 100 Pieces
-
Dnenlink 2.00mm Pitch Single Row H4.0mm Solder Male Header PogoPin ConnectorUS$ 1.4 - 1.7MOQ: 100 Pieces
-
Dnenlink 3.00mm Pitch Single Row H4.0mm Right Angle Male Header DIP Type PogoPin HeaderWith PegUS$ 0.9 - 1.2MOQ: 100 Pieces
-
Dnenlink 2.54mm Machined Pin Connector Single Row H3.00mm Straight DIPUS$ 0.65 - 0.8MOQ: 100 Pieces
Brand Name
Dnenlink
Place of Origin
China
Model Number
HPF1-XXS41XXXPYX
Type
Other, pogo pin
Application
PCB
Gender
Female
| Pin Material | Brass(C3604) |
| Plastic material | HIGH TEMPERATURE PLASTICS UL94V-0 |
| Pin Salt fog | 48H |
| Pin Plated | Gold plated(1-30u")(can customized) |
| Connector type | Male/Female |
| Pin | Per Row 1-80pin(depends on customer requirements) |
| Color | Black |
| Pitch | 1.27mm/2.00mm/2.54mm/3.00mm (depends on customer requirements) |
| Cycle life | 100000times |
| Contact resistance | 50m Ohm Max. |
| Rated current&voltage | 1-3A/12V(can customized) |
| Applications | PCB,AV equipment,medical equipment,military communication,aerospace,Phone watch, electronic cigarette |
| Certificate | ISO9001/ROHS2.0/REACH/MSDS/SGS |
| Packing | 1000pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal,HSBC |
| Freight | Air,Sea,Express |
| Sample Lead Time | inventory sample 2-3Working day/customized sample 5-10Working day |
| Production Lead Time | 10-15Working day |
| Made For | America,Europe,Asia,South African |
| Trade Term | EXW |
| Service | High quality with reasonable price. |
| OEM service, any special size, color, designs are acceptable. | |
| Original sample can be re-made. | |
