coconut charcoal making machine Charcoal production horizontal airflow carbonization stove

Name: coconut charcoal making machine Charcoal production horizontal airflow carbonization stove
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Product Overview

Horizontal Airflow Carbonization Furnace

The new environmentally friendly horizontal airflow carbonization furnace adds a flue gas recovery device on the basis of the original carbonization furnace. After the flue gas is recovered, it can be dust-free and smoke-free. The recovered flue gas can be ignited like liquefied gas for heating, cooking, and Dryer use. At present, there are three types of carbonization furnaces, common type (can only be used to produce charcoal, not to collect gas); wood carbonization equipment (used to carbonize branches, wood blocks, coconut shell blocks, scrap pieces in furniture factories, etc.) This equipment can be configured The gas recovered by the gasification furnace device can be turned into fuel gas for the carbonization furnace's own use or other); the new horizontal environmentally friendly carbonization furnace has the effect of one machine and two purposes, and the materials can also be directly carbonized, or can be carbonized after rods.

FEATURES AT A GLANCE

The main features of the new horizontal jet carbonization furnace:

①Continuity of production ②Good sealing performance ③The water cooling replaces the traditional natural cooling. ④Composite materials with high heat transfer and wear resistance form a highly efficient carbonization chamber ⑤All gas is returned to the furnace for combustion without waste gas pollution

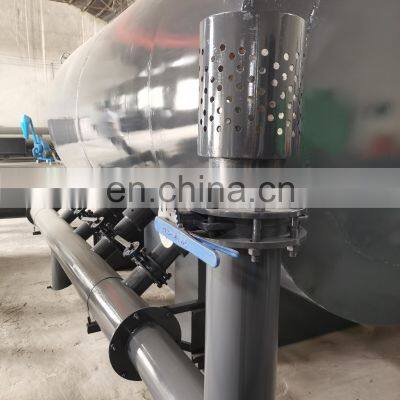

burners and stove top

condenser

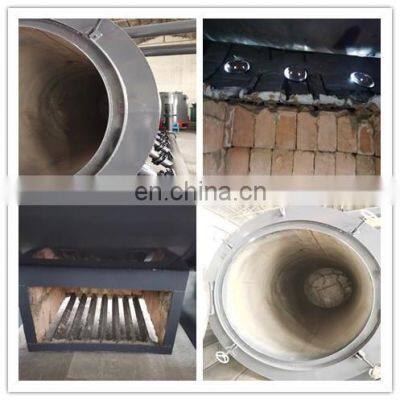

inside of stove

PRODUCT SPECIFICATIONS

The main technical parameters
Model	HR1545
Fan machine	2.2KW
Fuel	Firewood, nature gas, coal gas, etc
Volume	7.9CBM
Machine dimension	φ1.5 length：4.5m
Final capacity	1.5-2ton per day
Carbonization and cooling time	6-12h
Weight	4.5ton
Weight	carbon steel

PRODUCT CONFIGURATION

fan machine

boiler cover and thick rock wool seal

Thicken the wall thickness

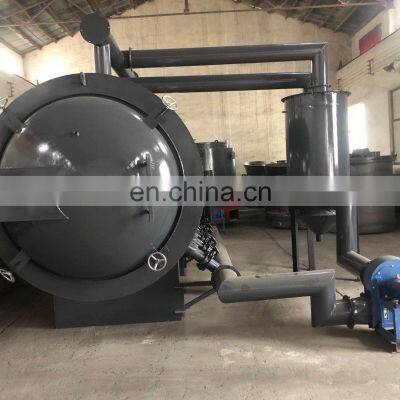

Product show of horizontal airflow carbonization furnace：

Advantages of horizontal jet carbonization furnace 1. The carbonization furnace adopts a horizontal manufacturing process. The carbonization furnace workers have a total of 30% structure, and there are light insulation materials in the interlayer, which can always keep the temperature in the furnace without dissipating 2. The furnace door is sealed with a boiler cover and filled with thick rock wool, no air will enter, and the carbon output rate is much higher than that of a conventional carbonization furnace 3. The reason why it is called an environmentally friendly carbonization furnace is because the wood rods will produce a lot of light yellow combustible gas during the carbonization process. These gases can divert the combustible gas to the combustion zone of the carbonization furnace through the pipes of the carbonization furnace for secondary heating. , More environmentally friendly and fuel-efficient 4. The excess gas from the carbonization furnace can be used to dry sawdust or burn the boiler 5. The carbonization furnace finishes the charcoal burning and the cooling time is shorter, and the space between the interlayer is used to cool the carbonization furnace with water, which is faster and more convenient. 6. The environmental protection horizontal airflow carbonization furnace can match the corresponding track and kiln car according to the needs of customers.Customers buying this kind of carbonization furnace have achieved simple operation, low labor intensity, convenient charging and discharging, and the cooling time is greatly reduced. The output of the carbonization furnace can be greatly improved.
