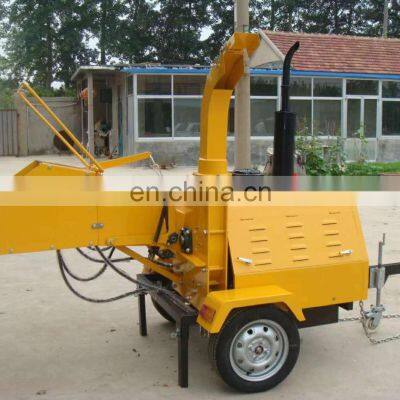

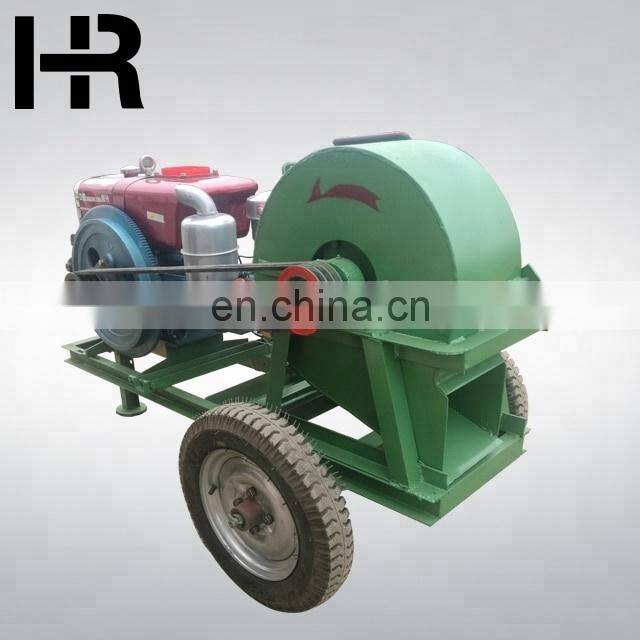

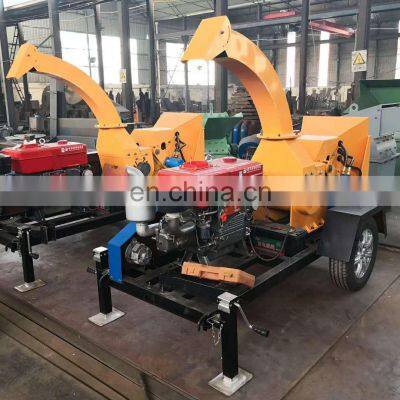

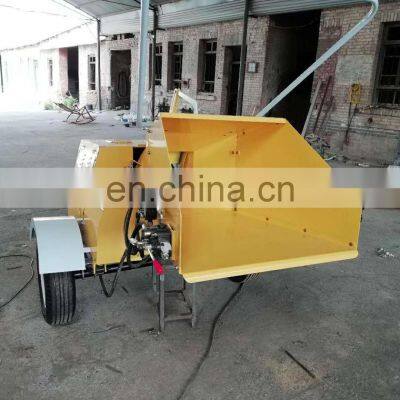

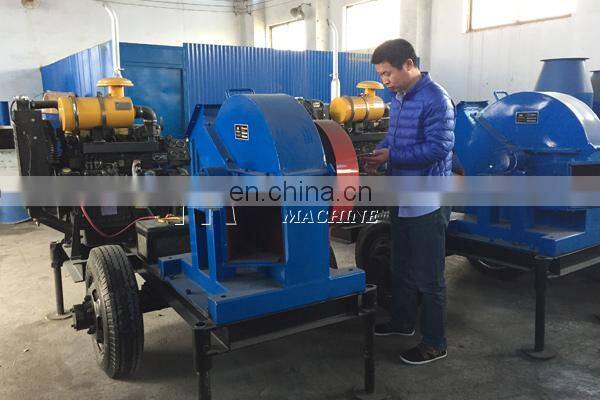

Mobile type diesel generator portalbe wood crusher chipping machine
The diesel generator mobile wood crusher is widely used now in the market in different area, like the wood cutting,forest wood recycling, this moible wood crusher can be moved any time any where you want, normally we use the moible wood crusher go with one truck in the forest, while we chopping the woods,then we can spray the final wood chips into the truck directly.
Working principle of the mobile type wood crusher with diesel generator

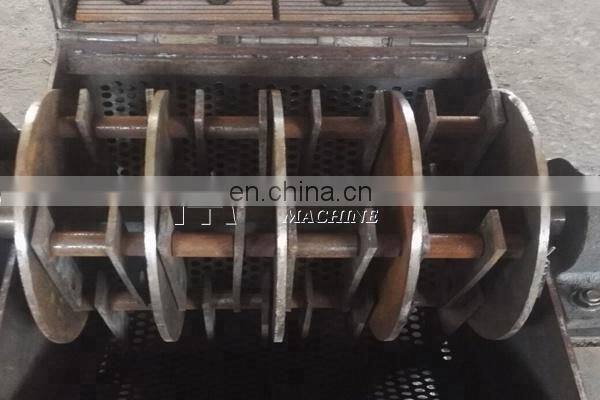

the machine is composed of the body machine,frame,generator engine,wheels.and the spare parts is blades and screen,we feed the woods into the machine,then the baldes can shred them into 3-5mm,then it can spray the wood chips into the truck.that is more convenient to delivery.
The parameters:
| Model | Power Kw |
Capacity Kg |
Cutter Diameter | Cutter No. | Weight | Dimension m |
|---|---|---|---|---|---|---|
| HR40 | 7.5 | 480 | 0.4m | 4 | 350kg | 1.25×0.65×0.75 |
| HR60 | 18.5 | 1000 | 0.6m | 6 | 500kg | 1.8×1.3×0.9 |
| HR80 | 22 | 1300 | 0.7m | 6 | 800kg | 2.1×1.5×1.3 |
Spare parts:
Contact us:
