Factory Supply Wood Sawdust Machine Industrial Bamboo Straw Wood Sawdust Crusher Sugarcane Bagasse Crusher
Introduction of Wood Sawdust Machine

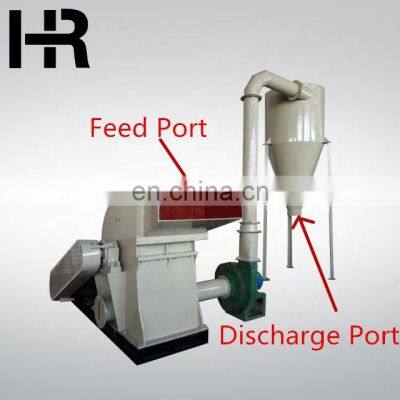

This wood sawdist machine is mainly composed of five parts: crushing, grading, wind conveying, unloading and dust removal. It eliminates the traditional screening process and uses wind energy to form powder at one time. Machine performance has been greatly improved compared to other similar products.

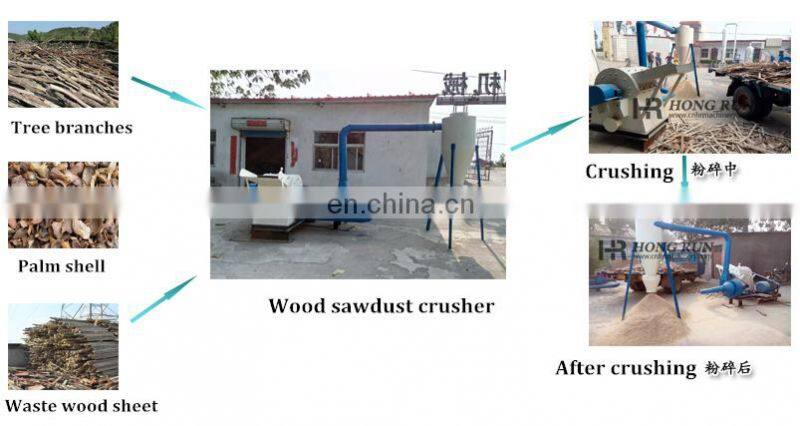

The wood sawdust crusher is used to crush the Biomass material like wood, straw, stalk, wood chip, strips, tree branch and wood waste into powdered materials with particle size less than 3-5mm.
Technical Parameters of Wood Sawdust Crusher
|
Sawdust Crusher Technical Parameters |
|||||
|
Model |
HR400 |
HR600 |
HR800 |
HR1000 |
HR1200 |
|
Dimension |
1.85*1.2*0.92m |
2.3*1.6*1.25m |
2.56*2.1*1.55m |
2.8*2.5*1.7m |
2.8*2.9*1.7m |
|
Power |
18.5kw |
37kw |
45kw |
55kw |
75kw |
|
Output |
500-700kg |
1000-2000kg |
2000-3000kg |
3000-4000kg |
4000-5000kg |
|
Floor |
5 |
7 |
9 |
13 |
18 |
Working structure principles of sawdust crusher machine
The wood sawdust machine makes fine, the processing technology is high, it uses the double-layer body, the machine body infuses the tap water to play the water cooling function, it also loaded a new material can get function of the sound insulation and the heat dissipation . Therefore, the noise of this machine is small and vibration-free in production and use.Beautiful appearance, durability and high output, 50% higher than the traditional wood powder machine efficiency, it is best ideal powder crusher production equipment currently.
|
|
|
| VIEW PRODUCT | VIEW PRODUCT |
|
|
|
| VIEW PRODUCT | VIEW PRODUCT |
Packing
Shipping
The machine will be shipped with wooden case which has the plastic film inside, and will be delivered in 15 days after receives the payment.
Gongyi hongrun machine was established in 1989,and acquire the CE certificates in 2001.we are Chinese manufacturer & exporter of all kinds of machines.we have over 20 years experience of charcoal making machines,our customers come from different countries and we get the same good evaluation,if you need these kinds of machines,we are the best choice for you!
