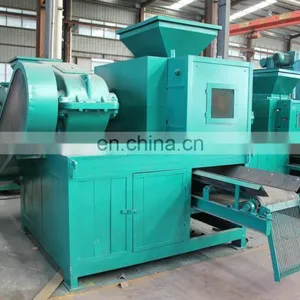

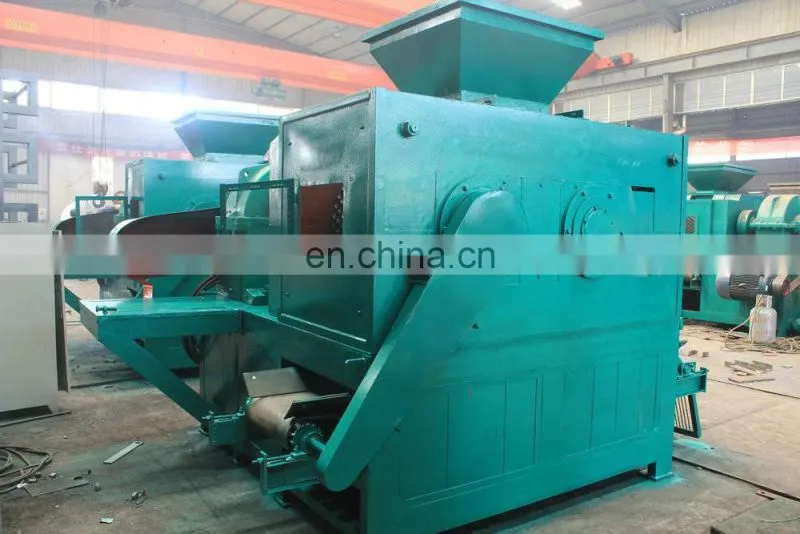

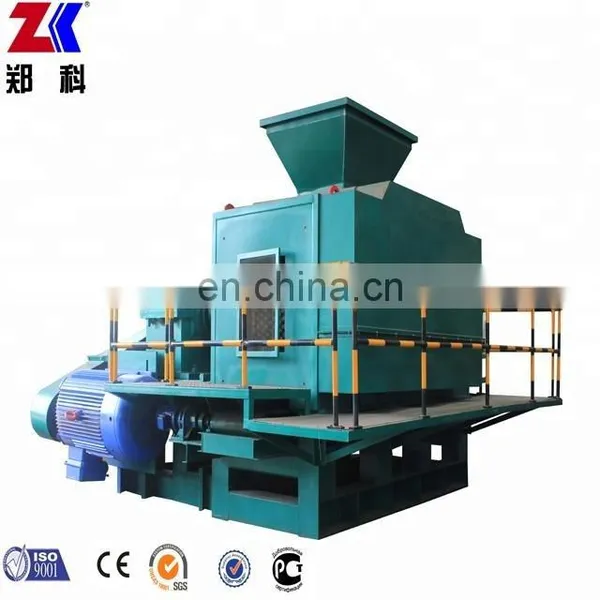

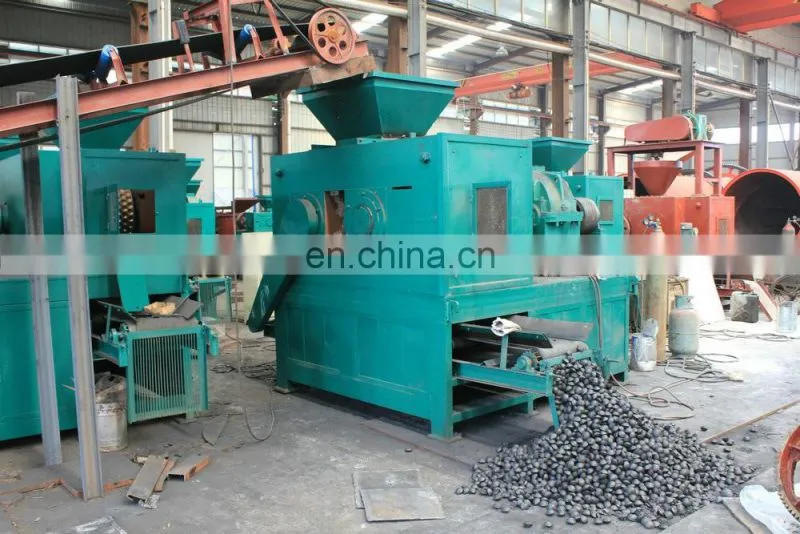

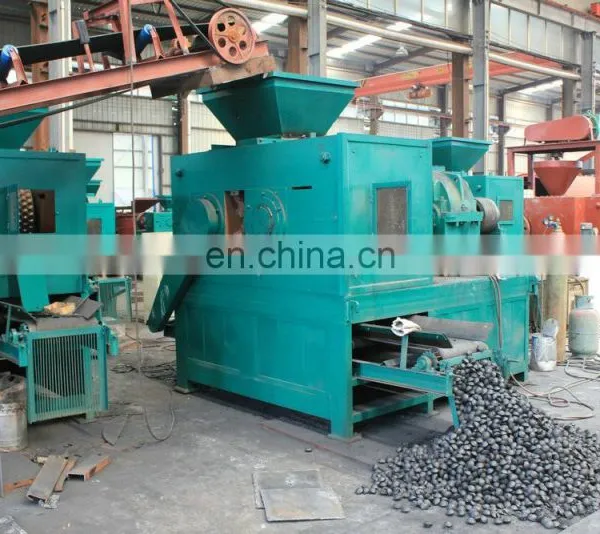

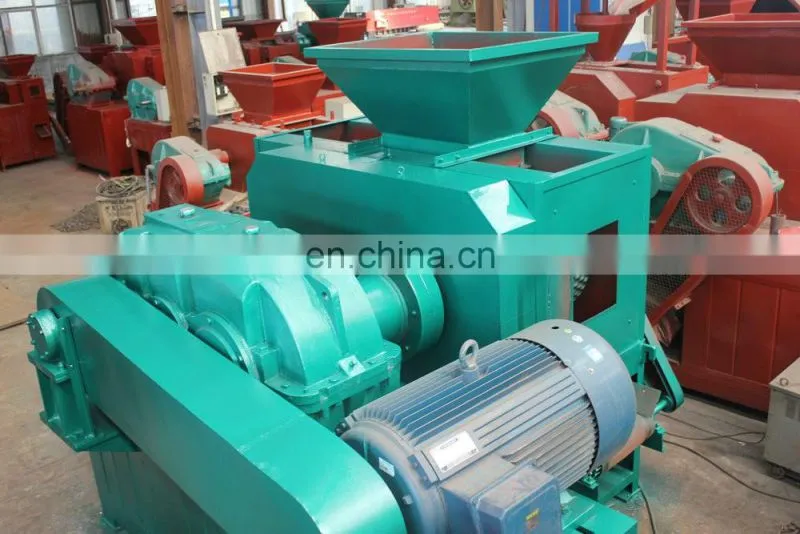

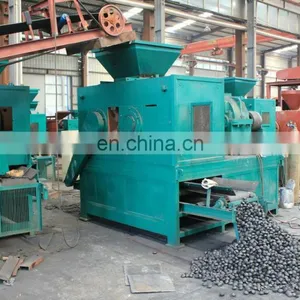

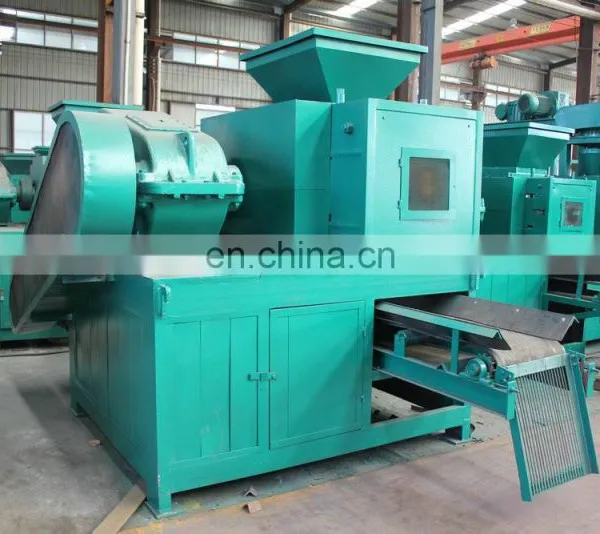

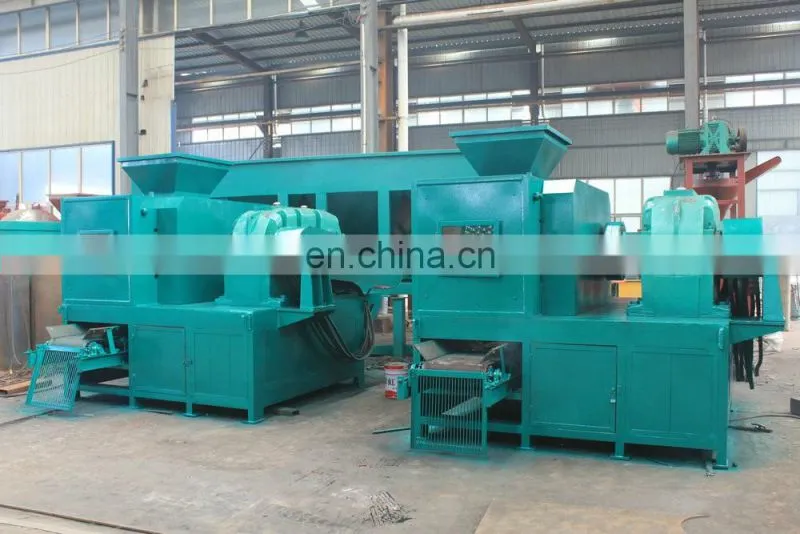

Widely used ball press machine/carbon black pellet briquette press
production description
Widely used ball press machine/carbon black pellet briquette press can press coal fines, coke fines, charcoal powder, carbon black, iron ore fines, mill scale, manganese ore fines, phosphor gypsum powder into briquettes.

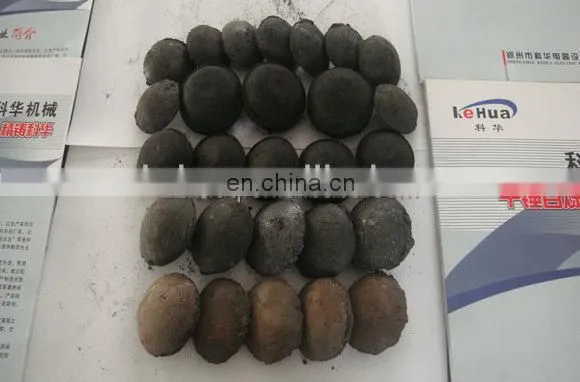

These briquettes can be designed of oval shape, egg shape, pillow shape etc. This machine is widely used in coal industry and metallurgy industry.
Product Features
1. High efficiency coal briquetting machine
2. Apply for many kinds of powder like charcoal, coal, mineral, etc
3. Make round type , pillow type, square shape, oblong type charcoal ball,oval shape
4. The products have high density, high strength, and high hardness

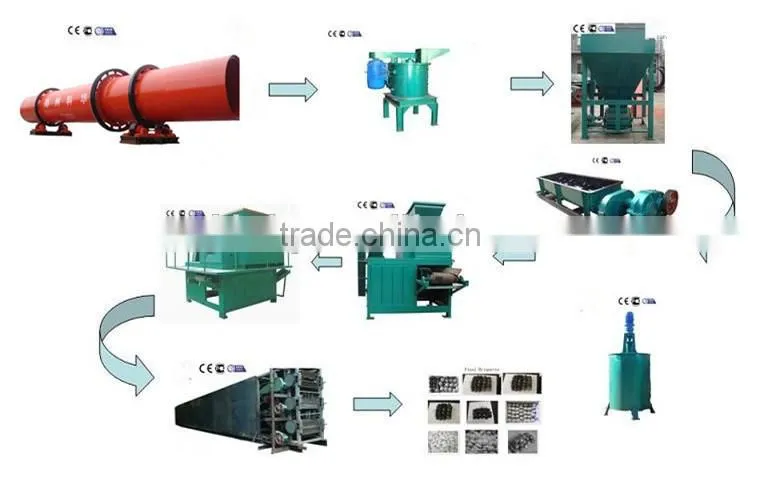

Technological process
The raw material which has high content water will be dried by the rotary dryer. If there were several mixed kinds of materials, the materials after been dried will be reasonable distributed by the electrical dosing machine. And they will be conveyed to the crusher to be crushed into fines via belt conveyor. The crushed fines will be mixed by the double shaft mixer with some binder. These mixed materials will be conveyed to increasing density machine through belt conveyor. After that, the materials will be transmitted to briquetting machine to make briquettes. Final briquettes will be conveyed to vertical dryer or chain type dryer or belt dryer to be dried. After been dried, these briquettes will be delivered to storage area or directly loaded. The whole production line could be designed according to customer demand.
Main technical parameter
Model |
Roll diameter(MM) |
Capacity(T/H) |
Powder(KW) |
ZKBM290 |
290 |
5.5 |
1-3 |
ZKBM360 |
360 |
11/15 |
4-6 |
ZKBM430 |
430 |
18.5 |
6-8 |
ZKBM500 |
500 |
18.5/37/55 |
8-12 |
ZKBM500-3 |
500 |
37 |
5-8 |
ZKBM500-4 |
500 |
55 |
8-12 |
ZKBM650 |
650 |
37/45 |
10-15 |
ZKBM750 |
750 |
75/90/110 |
15-20 |
ZKBM850 |
850 |
90/110 |
20-25 |
ZKBM1000 |
1000 |
90/110/132 |
25-30 |
Company introduction
Zhengzhou kehua industrial equipment co., ltd is located in Gongyi , Zhengzhou city, Henan province, china, which is a professional manufacturer and has over 10 years working experience. We always keep honesty, quality as our service tenet, Efforts to provide good products to our customers.
Our main products briquetting equipment, series briquetting machine /briquetting press, briquetting production line machinery, briquettes drying machine, rotary dryer, vertical dryer, mesh belt dryer, chain plate dryer, rotary kiln etc.
If you are interested in our products, we welcome you to consult. At the same time, we will be dedicated to answer all your questions about the product.
ADDRESS:MIDDLE SECTION OF HELUO ROAD, GONGYI CITY ,HENAN PROVINCE ,CHINA
telephone:86-371-69576958
