Help CenterTriple Axis Solar Power Generation System 2.6KW
Related Products
-
Triple Axis Solar Power Generation System 2.6KWUS$ 19250 - 19250MOQ: 1 Set -
Triple Axis Solar Power Generation System 1.45KWUS$ 13,300 - 13,300MOQ: 1 Set
-
Single Axis Solar Power Generation SystemUS$ 16200 - 16200MOQ: 1 Set
-
Outdoor Solar Glass Advertising Light BoxUS$ 1580 - 1580MOQ: 1 Set
-
Solar Glass Wayfinding Light BoxUS$ 1950 - 1950MOQ: 1 Set
*The service life can reach more than 20 years.
* An integrated solar power generation system composed of 12 monocrystalline silicon solar panels, tracking system, inverter, and energy storage battery.
*Using the sun real-time tracking system. The smart sunflower always forms the best angle with the sun, so it can increase by 40% compared to the energy produced by traditional solar energy.

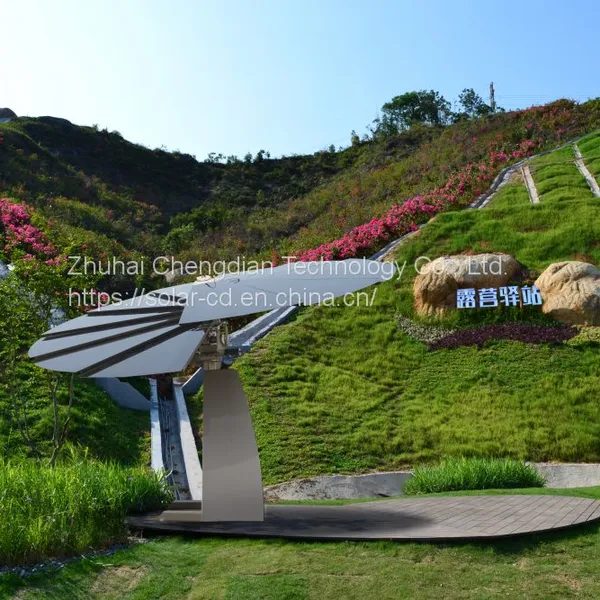

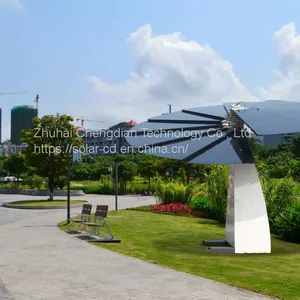

*When the sun rises in the morning, the smart sunflower will automatically unfold and start generating energy by setting the blades to a 90 degree angle. The blades "return to sleep" into the folded position at night, or when high winds make it unsafe to operate.
*Easy installation and novel appearance.
*Applicable to commercial exhibitions, homes, well-known hotels, exhibitions, science and technology exhibitions, science and technology museums, educational institutions, universities, etc.
*The annual average power generation can reach 7Kwh/day, preferably 9Kwh/day.
* Lithium battery can be configured to store the electric energy generated during the day in the battery to supply power for household loads.
| Triple Axis Solar Power Generation System （2.6kw） | |||||
| Product Details | |||||
| Composition | Blade components, tracking systems, inverters, energy storage batteries (lithium iron phosphate) | ||||
| Net weight | About 950KG(excluding battery and inverter) | ||||
| About1080KG(including battery and inverter) | |||||
| Solar panel parameters | Material | Monocrystalline silicon | |||
| Weight of a single piece | About 21KG/piece | ||||
| Monolithic Power | 11 pieces of 225W 1 piece of 170W | ||||
| Thickness of single piece | 5mm | ||||
| Access method | 12 pieces in series | ||||
| power | 2.6KW(standard model) | ||||
| Power generation (south) | 10kwh/day(annual average) 14kwh/day(best condition) | ||||
| dimension | 1440×1300×2710(Storage size) | ||||
| 5000×5000×5000(The minimum installation space) | |||||
| Tracking mode | Triple Axis | ||||
| battery capacity | 10kwh(Recommended configuration) 3kwh、5kwh（Optional） | ||||
| Maximum power consumption | 3kw(Recommended configuration)、5kw | ||||
| Warranty | 1 year for the whole machine | ||||
| Wind resistance rating | Level 6 lifts and shelters from the wind, level 7 collects shelter from the wind, and recovers in half an hour if there is no wind | ||||
| Protection level | IP55 | ||||
| DC output voltage | 250V DC | ||||
| AC output voltage | 220V AC | ||||
| Voltage of control system | 24V DC | ||||
