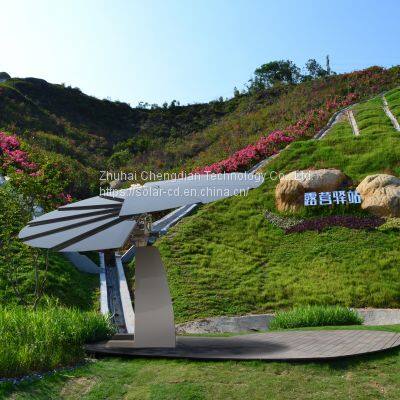

*Sunflower bionic design, beautiful and novel; suitable for a variety of application scenarios
*The service life can reach more than 20 years.
* An integrated solar power generation system composed of 12 monocrystalline silicon solar panels, tracking system, inverter, and energy storage battery.
*Using a real-time solar tracking system to achieve the most efficient power generation. The efficiency of photovoltaic power generation decreases with the increase of ambient temperature. When the temperature increases by 10°C, the power generation efficiency decreases by 5%. Sunflower rear-mounted heat dissipation modules, heat cannot be collected due to the structure, which means that they are 10°~15°C cooler than the roof system, and the power generation is increased by 5-10%.
* Keep safe and stable startup at -20°C; prevent wind and snow, sensor monitoring wind speed; one-key startup; solar real-time tracking system; automatic folding of blades; automatic cleaning;
* Flexible choice of installation location and convenient transportation; one-time hoisting saves labor costs
*It can be used in commercial exhibitions, home furnishings, hotels, exhibitions, power companies, national grids, parks, smart parks, rural construction, educational institutions, schools, etc.
*Sunflower can be built-in inverter, lithium battery, leakage protection function, and support grid-connected and off-grid system.
*The annual average power generation can reach 10Kwh/day, preferably 14Kwh/day.
* Lithium battery can be configured to store the electric energy generated during the day in the battery to supply power for household loads.
| Triple Axis Solar Power Generation System （2.6kw） | |||||
| Product Details | |||||
| Composition | Blade components, tracking systems, inverters, energy storage batteries (lithium iron phosphate) | ||||
| Net weight | About 950KG(excluding battery and inverter) | ||||
| About1080KG(including battery and inverter) | |||||
| Solar panel parameters | Material | Monocrystalline silicon | |||
| Weight of a single piece | About 21KG/piece | ||||
| Monolithic Power | 11 pieces of 225W 1 piece of 170W | ||||
| Thickness of single piece | 5mm | ||||
| Access method | 12 pieces in series | ||||
| power | 2.6KW(standard model) | ||||
| Power generation (south) | 10kwh/day(annual average) 14kwh/day(best condition) | ||||
| dimension | 1440×1300×2710(Storage size) | ||||
| 5000×5000×5000(The minimum installation space) | |||||
| Tracking mode | Triple Axis | ||||
| battery capacity | 10kwh(Recommended configuration) 3kwh、5kwh（Optional） | ||||
| Maximum power consumption | 3kw(Recommended configuration)、5kw | ||||
| Warranty | 1 year for the whole machine | ||||
| Wind resistance rating | Level 6 lifts and shelters from the wind, level 7 collects shelter from the wind, and recovers in half an hour if there is no wind | ||||
| Protection level | IP55 | ||||
| DC output voltage | 250V DC | ||||
| AC output voltage | 220V AC | ||||
| Voltage of control system | 24V DC | ||||
