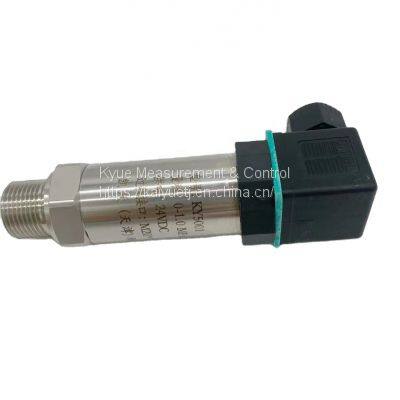

Standard Economical Pressure Transmitter 12-36VDC4-20mAM20*1.5 OEM

The pressure sensor KY5000 provides high-performance configurable pressure measurement solutions.The sensor is widely used in industrial pressure measurement as well as engine testing and hydraulic systems.The advantages of kyue sputtering film technology and analog circuits enable excellent performance in sensor stability, low power consumption and high frequency response.The adoption of modular design and lean production technology enables users to flexibly choose products to meet their special application needs and to deliver during standard products.

Measurements

Scale range: 0~50KPa to 0~7MPa.

Seal pressure measurement: optional from 0~1MPa  to 0~150MPa.Expression range: 0-50KPa to 0-150MPa. Differential pressure range: wet / dry one-way or two-way: 7KPa-3.5MPa wet / wet one-way latter two-way: 7KPa- 3.5MPa static pressure: maximum 7MPa

Atmospheric range: The minimum range of atmospheric pressure range is 35KPa.

Composite range: Composite pressure range is also available.Customers in need, please contact the manufacturer.

widely used in petroleum, chemical, metallurgy,Pressure measurement and control of industrial processes such as power, heavy industry machinery, hydraulic system, high-speed rail cleaning equipment and engine testing.

Performance parameters

· Range: -0.1MPa…0MPa~0.01MPa…150MPa

· Over pressure: 1.5 times full range pressure or 110MPa(take minimum value)

· Pressure type: gauge pressure or pressure or seal surface pressure type

· Pressure connection: M20× 1.5 Outer threaded waterline seal optional

· accuracy:±0.5%FS

· Zero-point temperature coefficient:

± 0.1%FS/℃ (≤ 100kPa); ± 0.05%FS/℃ (> 100kPa)

· Full degree temperature coefficient:

± 0.1%FS/℃ (≤ 100kPa); ± 0.05%FS/℃ (> 100kPa)

· Compensation temperature: 0℃~80℃

· Operating temperature: -30℃~150℃, -50℃~240℃)

· Power supply: 11V~28V DC

· Output signal: 4mA~20mA HART(two-line), 0 / 10V~5V DC(three-line)

· Protection level: IP65

· Electrical connection: DIN43650 inlet explosion-proof plug seat or cable cable (1.5m)

Product characteristics:

Zero point and full range output is adjustable

· With short-circuit protection and antipolar protection

· Table pressure, pressure and sealing reference pressure can be measured

· Simple in appearance, solid and durable

· All-steel stainless steel construction;

· Standard threaded lead pressure measurement method;

· Concurrent source power supply;

· Laser resistance adjustment compensation for zero point and temperature performance;

· Select solid state pressure sensor, high reliability and stability;

· Cable or connector lead mode.

· Laser resistance adjustment compensation for zero point and temperature performance;

· Suitable to non-conductive, non- corrosive liquids or gases;

· Multiple structures are available;

· Small in size and easy to install;

· Table pressure, isolation pressure and sealing gauge pressure;
