Home > Industrial Equipment & Components > Engine & Part > Engine Parts > F70MC Single-axis Medium Accuracy Military Standard Fiber Optic Gyroscope

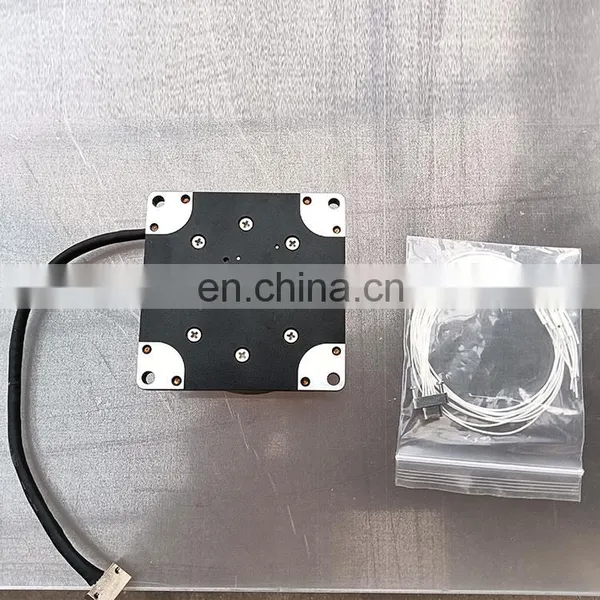

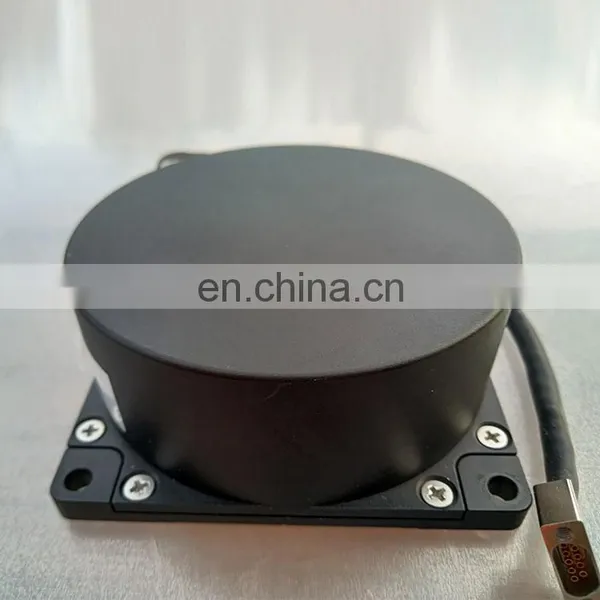

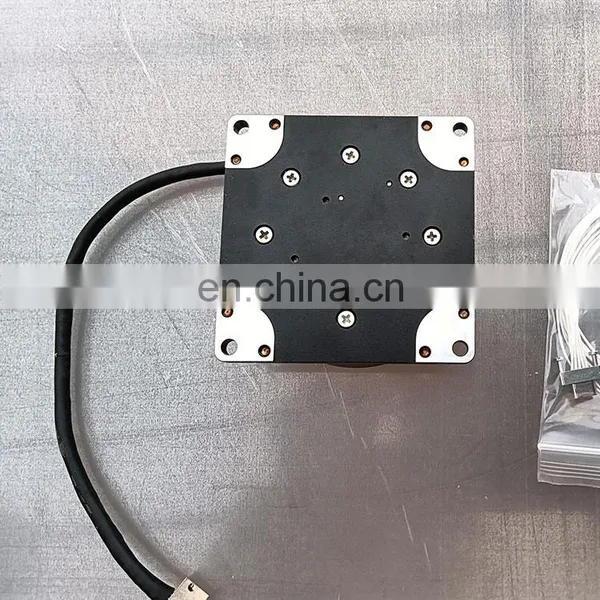

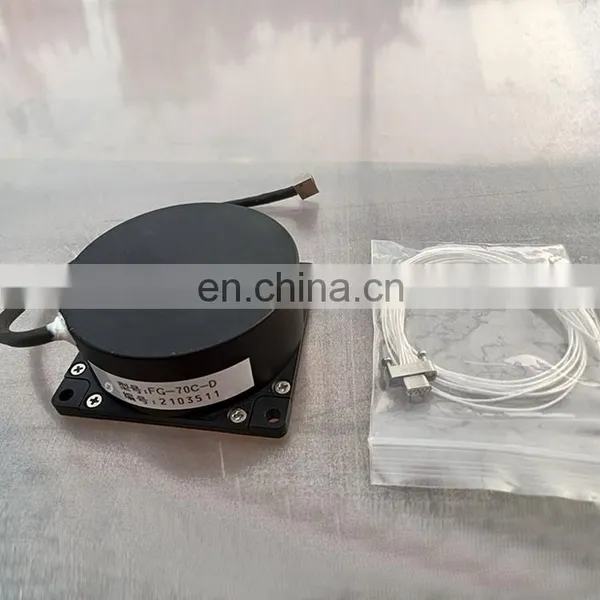

F70MC Single-axis Medium Accuracy Military Standard Fiber Optic Gyroscope
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F70HA 0.05 Degree/hr Single-axis Medium Accuracy Military Standard Fiber Optic GyroscopeNegotiableMOQ: 1 -
F120HB 0.01 Degree /hr Single-axis Medium Accuracy Military Standard Fiber Optic GyroscopeNegotiableMOQ: 1
-
F98HB 0.02 Degree/hr Single-axis Medium Accuracy Military Standard Fiber Optic GyroscopeNegotiableMOQ: 1
-
High Accuracy Navigational Accessory GyrosphereNegotiableMOQ: 1
-
Model 111-006 Brand New Or Anschuetz Std-22 Gyropshere With WarrantyNegotiableMOQ: 1
F70MC single-axis medium accuracy military standard fiber optic gyroscope
Item | Index | Testing conditions | |
01 | Bias Drift at fixed temperature （°/h） | ≤0.1 | 2H continuous test, 10s smooth (1σ) results |
02 | Bias repeatability （°/h） | ≤0.1 | Six test data calculations (1σ) |
03 | Bias Drift at full temperature （°/h） | ≤0.2 | After compensation |
04 | Maximum measured angular rate （°/s） | ≥500 | Adjustable |
05 | Scale Factor Non-Linearity at fixed temperature （ppm） | ≤50 | |
06 | Scale Factor Repeatability at fixed temperature （ppm） | ≤50 | Normal atmospheric temperature（1σ） |
07 | Bias change during vibration（°/h） | ≤0.2 | 4.2g,20Hz～2000Hz |
08 | Bias Drift Repeatability at full temperature range （°/h） | ≤0.1 | |
09 | Magnetic field sensitivity （°/h/Gauss） | ≤0.1 | |
10 | Standby time （s） | ≤5 | From power on to accuracy achieved |
11 | Bandwidth （Hz） | ≥100 | |
12 | Operating Temperature （℃） | -40～+60 | Optional：-55～+85 |
13 | Storage temperature （℃） | -55～+85 |
