Home > Products > Nautical parts > High accuracy Navigational accessory Gyrosphere

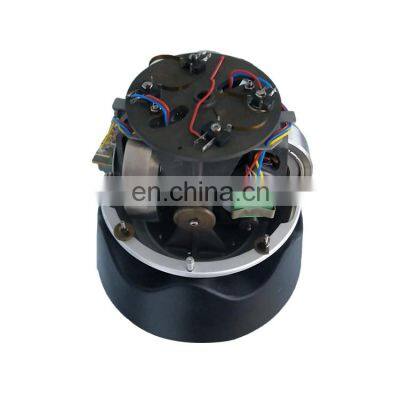

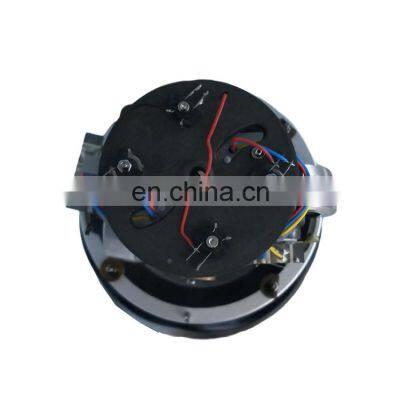

High accuracy Navigational accessory Gyrosphere
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Model 111-006 Brand New Or Anschuetz Std-22 Gyropshere With Warranty
- YOKOGAWA CMZ-500/700 GYROSPHERE KT-005 New or with warranty
- YOKOGAWA CMZ-900 GYROSPHERE KT-007 New or with warranty
- Tokyo Keiki TG-8000 Navigation Gyrosphere New or with warranty
- CCS Germamy Gyrosphere New or Std-22 Gyropshere with warranty
- PTK- 20 Inertial Measuring System Fiber Optic Gyro Compass System for Pipeline Surveying
Product Description
High accuracy Navigational accessory Gyrosphere
1.1 Accuracy
Settle point error | 0.1°secLat., RMS | |
Static error | 0.1°secLat., RMS | |
Dynamic error | 0.4°secLat., RMS | |
(periodic roll and pitch+horizontal acceleration) | ||
secLat.=1/cosLatitude |
1.2 Supply voltage
24 V DC (18 – 36 V DC)
1.3 Power consumption
80 W to 140 W (start-up) sensor unit
36 W distribution unit
6 W operator unit
7 W per analogue repeater
36 W distribution unit
6 W operator unit
7 W per analogue repeater
1.4 General data
Permissible ambient temperature | |
Operation | –10° C to +55° C |
Storage | –25° C to +70° C without supporting liquid |
without supporting liquid | |
Settling time | 1h ( < 3°) with «Quick settling» |
«Quick settling» | |
Max. rate of follow-up | 100 °/s |
Permissible periodic | |
roll and pitch angle | ±45° |
