Home > Products > Fiber optic gyrocompass > FG-800A Model Fog Attitude And Heading Reference
FG-800A Model Fog Attitude And Heading Reference
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- F70MC single-axis medium accuracy military standard fiber optic gyroscope
- F70HA 0.05 degree/hr single-axis medium accuracy military standard fiber optic gyroscope
- F120HB 0.01 degree /hr single-axis medium accuracy military standard fiber optic gyroscope
- F98HB 0.02 degree/hr single-axis medium accuracy military standard fiber optic gyroscope
- High accuracy Navigational accessory Gyrosphere
- Model 111-006 Brand New Or Anschuetz Std-22 Gyropshere With Warranty
Product Description

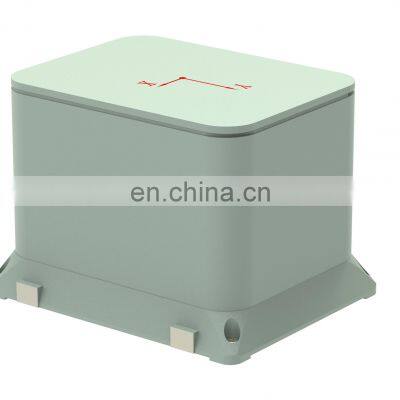

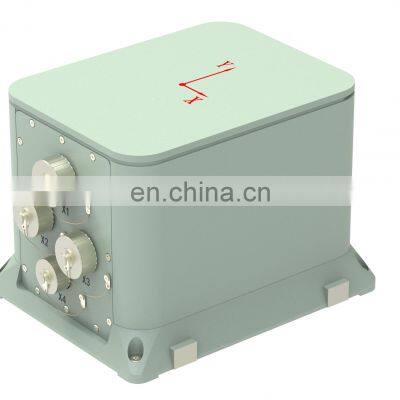

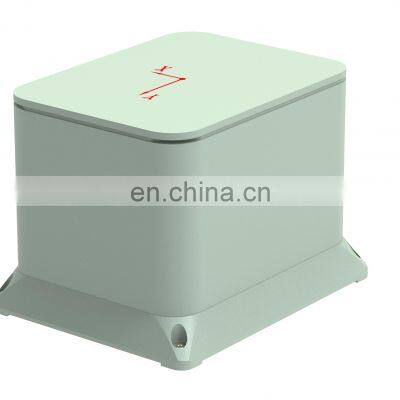

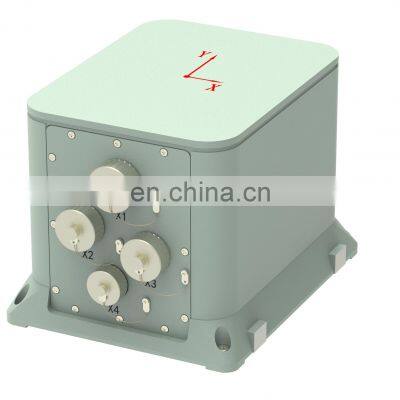

Fg-800A Model Fog Attitude And Heading Reference
Performances | Settling Time | 5min |
Attitude | 0.02 deg, 1σ | |
Heading accuracy | 0.1 sec(Lat) , 1σ autonomous 0.05 °sec(Lat), with GPS aiding | |
Heave | 5cm or 5% | |
Measuring Ranges | Rotation rate | ±400deg/s |
Acceleration | ±20g | |
Work Environment | Work Temperature | ‐40℃~+70℃ |
Storage Temperature | ‐55℃~+85℃ | |
Vibration | 0.04g2/hz @ 20~2000hz | |
Shock | 30g @ 6ms, keep accuracy 50g @ 11ms, no damage | |
Electrical Characteristics | Power supply | 18~36VDC |
Consumption | ≤15W | |
Physical Characteristics | Size(W x D x H) | 180×180×150 mm |
Weight | ≤4.8kg | |
Water proof | IP 66 | |
Interfaces | RS 232/RS 422 port | 4 outputs/2inputs |
Interfaces | Ethernet port | 4 outputs/ 2 inputs |
Interfaces | Pulse port | 2 outputs/4 inputs |
Data formats | NMEA 0183, ASCII, BINARY | |
Reliability | MTBF | 80000 hrs |
Warranty | Three years |
