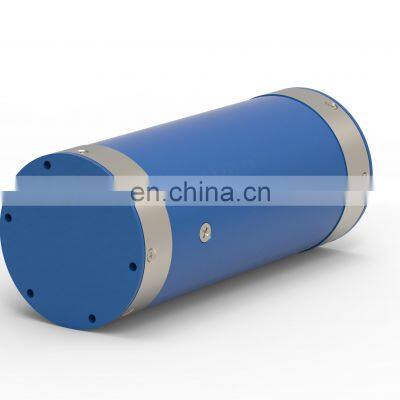

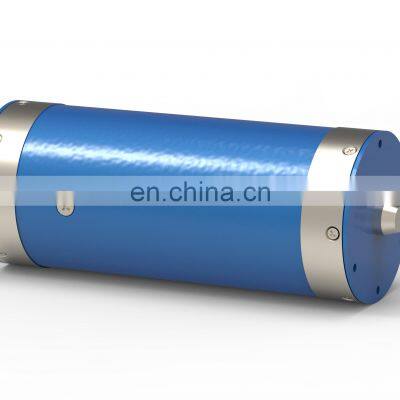

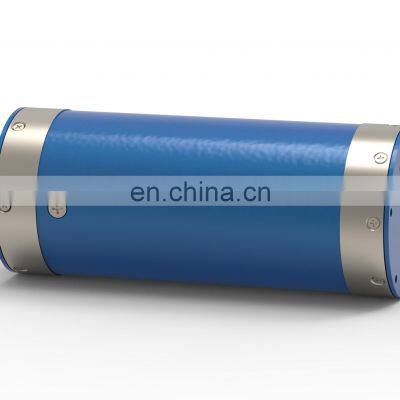

PTK-20 Fiber Optic Gyro Compass System Inertial Measuring System for Pipeline Surveying
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FG-800A Model Fog Attitude And Heading ReferenceNegotiableMOQ: 1 -
FG-500C Fast Dynamic Response Fiber Optic Gyrocompass Gyro Compass SystemNegotiableMOQ: 1
-
FG-500C High Reliability Low Cost Fast Dynamic Response Fiber Optic Gyro Compass SystemNegotiableMOQ: 1
-
FG-500C Fast Dynamic Response Fiber Optic Gyrocompass Gyro Compass SystemNegotiableMOQ: 1
-
FG-500C Fiber Optic Solid Fully Digital Gyro Compass And Inertial Navigation System For Ships And BoatsNegotiableMOQ: 1
PTK-20 Fiber Optic Gyro Compass System Inertial Measuring System for Pipeline Surveying
Performance |
Alignment |
5min |
|
Attitude |
0.05deg, 1σ |
||
Heading |
0.5deg, 1σ |
||
Storage |
≥32G |
||
Reading speed |
USB2.0, ≥35Mb/s |
||
Accuracy |
1.8m....3.6m over 1 km....2km aiding |
||
Measuring Range |
Velocity |
±400deg/s |
|
Acceleration |
±20g |
||
Environment |
Working Temp |
-40℃~+70℃ |
|
Storage Temp |
-55℃~+85℃ |
||
Vibration |
0.04g2/hz @ 20~2000hz |
||
Shock |
30g @ 6ms, keep accuracy; 50g @ 11ms, survival |
||
SWaP |
Size |
Φ80 x 190 mm |
|
Power supply |
24VDC |
||
Weight |
≤2.5kg |
||
Power consumption |
≤15W |
||
Interface |
RS232，USB |
||
