Product Description

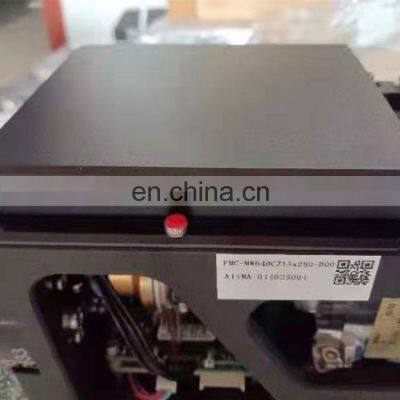

15-300mm F5.5 Optical Laser Zoom Surveillance Thermal Hunting Imaging Camera640x480
1.1 Detector
Detector | MCT 640 ×512 |
Spectral range | 3.7 ~4.8μm |
Pixel pitch | 15μm |
Cooling method | Stirling Refrigerator |
1.2 Lens
Focal length | 15 ㎜～300 ㎜ continuous zoom |
F | 5.5 |
1.3 Performance
FOV range | 1.83°(H) ×1.46°（V）to 36.5°(H) ×29.2°（V） |
Cooling time | ≤8 minutes in normal temperature |
Video Output | standard PAL format analog video signal |
Frame Frequency | 25Hz |
NETD | ≤25mk@25℃ |
Power source | DC 24 ~32 V, with power reverse polarity protection |
Power consumption | ≤15W@25℃, steady state ≤30W@25℃, start-up peak |
Operation Temperature | -30℃~55℃ |
Storage Temperature | -40℃~70℃ |
Table 1. Connector (HARWIN:M80-5401605) pin definitions
Pin Number | Definitions |
1,9 | Power +, input |
2,10 | Power -, input |
3 | Video + output |
11 | Video GND |
4 | RS422_A |
12 | RS422_B |
5 | RS422_Z |
13 | RS422_Y |
6 | RS232_RX |
14 | RS232_TX |
7 | GND |
15 | GND |
8 | SER_LVDS_OUT- |
16 | SER_LVDS_OUT+ |
4.1 Electrical Interface Description for Communication
Channel
Communication between the thermal infrared imager and the host is
achieved via an RS232 asynchronous serial communication interface,
whose serial port setting is as follows:
Baud rate: 19200 bps
Start bits 1 bit
Stop bits: 1 bit
Verification: None
Data bits: 8 bit
The parameters listed above may be different in practice, subject to requirement of the client.
4.2 Software Interface Description for Communication
Protocol
a) The host controls the certain action of the thermal infrared imager
by sending commands to the thermal infrared imager through the serial
port; communication command is sent in given packet format; if theinterval between characters of the packet sent from the host to
the thermal
infrared imager is over 10ms, the imaging system may decline to
implement the command.
b)
Packet Protocol
Packet protocol is defined in Figure 4: Packet Protocol.
Channel
Communication between the thermal infrared imager and the host is
achieved via an RS232 asynchronous serial communication interface,
whose serial port setting is as follows:
Baud rate: 19200 bps
Start bits 1 bit
Stop bits: 1 bit
Verification: None
Data bits: 8 bit
The parameters listed above may be different in practice, subject to requirement of the client.
4.2 Software Interface Description for Communication
Protocol
a) The host controls the certain action of the thermal infrared imager
by sending commands to the thermal infrared imager through the serial
port; communication command is sent in given packet format; if theinterval between characters of the packet sent from the host to
the thermal
infrared imager is over 10ms, the imaging system may decline to
implement the command.
b)
Packet Protocol
Packet protocol is defined in Figure 4: Packet Protocol.
