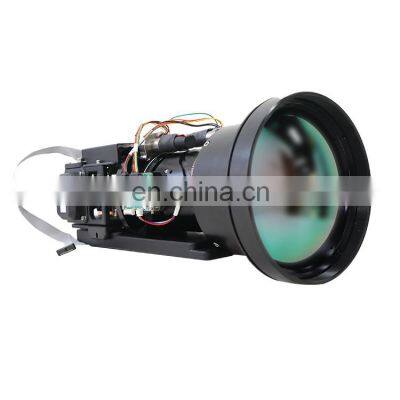

23-450mm F4 Continuous Zoom MWIR LEO Detector Night Vision Infrared Thermal Imaging Camera System
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
110-1100mm F5.5 MWIR Continuous Zoom LEO Detector Thermal Imaging Camera SystemNegotiableMOQ: 1 -
150-1500mm F5.5 MWIR Continuous Zoom LEO Detector Thermal Imaging Camera SystemNegotiableMOQ: 1
-
40-200mm F4 Continuous Zoom MWIR LEO Detector Thermal Imaging Camera SystemNegotiableMOQ: 1
-
86-860mm F5.5 Continuous Zoom MWIR LEO Detector Thermal ImaginNegotiableMOQ: 1
-
35-700mm F4 Continuous Zoom LEO Detector Thermal Imaging Camera SystemNegotiableMOQ: 1
23-450mm F4 Continuous Zoom MWIR LEO Detector Night Vision Infrared Thermal Imaging Camera System
1.1 Detector
Detector |
MCT 640 ×512 |
Spectral range |
3.7 ~4.8μm |
Pixel pitch |
15μm |
Cooling method |
Stirling Refrigerator |
1.2 Lens
Focal length |
23 ㎜～450 ㎜ continuous zoom |
F |
4 |
1.3 Performance
FOV range |
1.22°(H) ×0.98°（V）to 23.5°(H) ×18.9°（V） |
Cooling time |
≤8 minutes in normal temperature |
Video Output |
standard PAL format analog video signal |
Frame Frequency |
50Hz |
NETD |
≤25mk@25℃ |
Power source |
DC 24 ~32 V, with power reverse polarity protection |
Power consumption |
≤15W@25℃, steady state ≤30W@25℃, start-up peak |
Operation Temperature |
-30℃~55℃ |
Storage Temperature |
-40℃~70℃ |
Table 1. Connector (HARWIN:M80-5401605) pin definitions
Pin Number |
Definitions |
1,9
|
Power +, input |
2,10
|
Power -, input |
3 |
Video + output |
11
|
Video GND |
4 |
RS422_A |
12
|
RS422_B |
5 |
RS422_Z |
13
|
RS422_Y |
6 |
RS232_RX |
14 |
RS232_TX |
7 |
GND |
15
|
GND |
8 |
SER_LVDS_OUT- |
16
|
SER_LVDS_OUT+ |
4.1 Electrical Interface Description for Communication
Channel
Communication between the thermal infrared imager and the host is
achieved via an RS232 asynchronous serial communication interface,
whose serial port setting is as follows:
Baud rate: 19200 bps
Start bits 1 bit
Stop bits: 1 bit
Verification: None
Data bits: 8 bit
The parameters listed above may be different in practice, subject to requirement of the client.
4.2 Software Interface Description for Communication
Protocol
a) The host controls the certain action of the thermal infrared imager
by sending commands to the thermal infrared imager through the serial
port; communication command is sent in given packet format; if theinterval between characters of the packet sent from the host to
the thermal
infrared imager is over 10ms, the imaging system may decline to
implement the command.
b)
Packet Protocol
Packet protocol is defined in Figure 4: Packet Protocol.
Channel
Communication between the thermal infrared imager and the host is
achieved via an RS232 asynchronous serial communication interface,
whose serial port setting is as follows:
Baud rate: 19200 bps
Start bits 1 bit
Stop bits: 1 bit
Verification: None
Data bits: 8 bit
The parameters listed above may be different in practice, subject to requirement of the client.
4.2 Software Interface Description for Communication
Protocol
a) The host controls the certain action of the thermal infrared imager
by sending commands to the thermal infrared imager through the serial
port; communication command is sent in given packet format; if theinterval between characters of the packet sent from the host to
the thermal
infrared imager is over 10ms, the imaging system may decline to
implement the command.
b)
Packet Protocol
Packet protocol is defined in Figure 4: Packet Protocol.
