Help CenterChina Manual Brick Machine Onnoh QTJ4-40 Semi-automatic Brick Making Machine
Related Products
-
Cement Brick Making Machine Small Color Paver Machine Concrete Brick Machine - Onnoh Manual Brick Moulding MachineNegotiableMOQ: 1 Set -
Small Cement Brick Making Machine - Onnoh Manual Brick Moulding MachineNegotiableMOQ: 1 Set
-
QT8-15 Brick Making Machine Paver Machine Interlock Machine Curbstone MachineNegotiableMOQ: 1 Set
-
Automatic Concrete Brick Making Machine Big Model QT10-15 ONNOH Block Machine Line Paver Blcok MachineNegotiableMOQ: 1 Set
-
QT6-15 Hollow Block Forming Machine Solid Brick Machine Medium Block MachineNegotiableMOQ: 1 Set

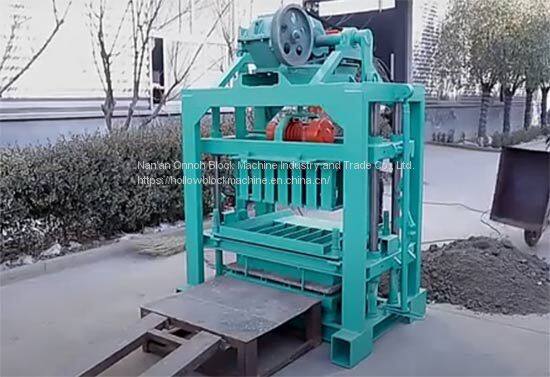

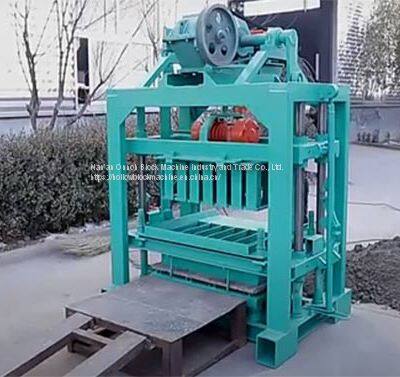

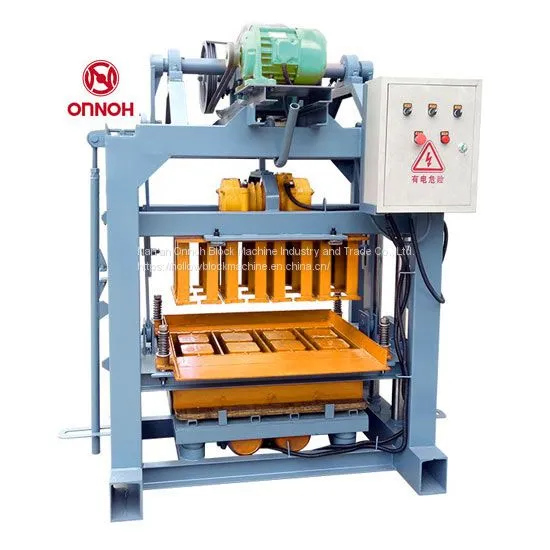

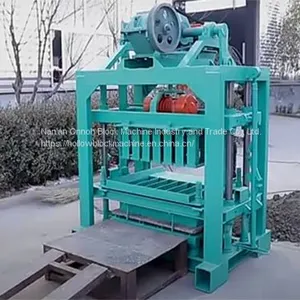

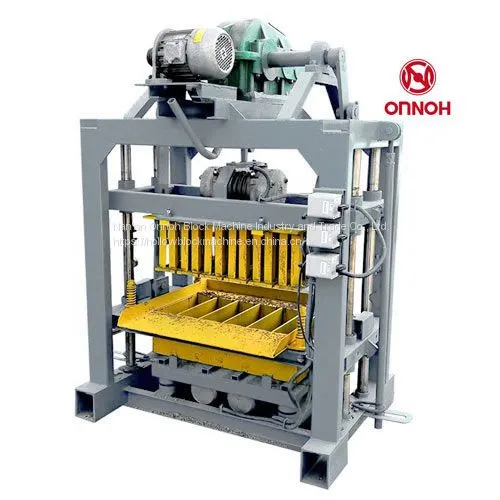

Qtj4-40 manual concrete block making machine is a very common manual block making machine in the Philippine market. It can produce hollow blocks, solid blocks and simple pavers. The materials are usually concrete, cement, sand and fly ash.
Qtj4-40 block forming machine is one of the best-selling manual brick machines, which is easy to operate. A large high-quality reducer is equipped, its key rotating parts are changed into bearings, the thickened square steel frame is adopted, and the inner sleeve is made of wear-resistant material to orient and position the four guide columns, which greatly prolongs the service life of the machine.
Dimension of host machine |
1350*1460*1800mm |
Molding time |
30-40s |
Vibration form |
Platform and mold vibration |
Vibration frequency |
2800 r/min |
Capacity |
16.3KW |
Vibration force |
30KN |
Host machine power |
8.8KW |
Weight |
1.8T |
Rated voltage |
380V |
Pallet size |
850*450*30mm |
Type |
size(mm) |
Molding time |
Pcs/mold |
Pcs/h |

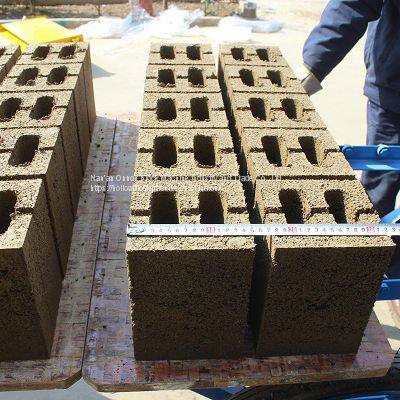

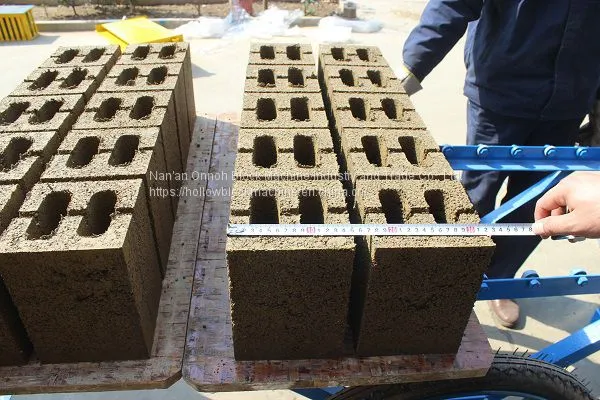

Hollow block |
400*150*200 |
30-40s |
5 |
450 |
Hollow block |
400*200*200 |
30-40s |
4 |
360 |
Hollow block |
400*240*190 |
30-40s |
3 |
270 |
Solid brick |
240*115*53 |
30-40s |
18 |
1620 |
1) The linear structure is simple and easy to install and maintain.
2) The pneumatic part, electrical part and operation part adopt world advanced famous brand components.
3) The high-pressure double crank controls the opening and closing of the die.
4) It operates in a highly automated, intelligent and pollution-free environment

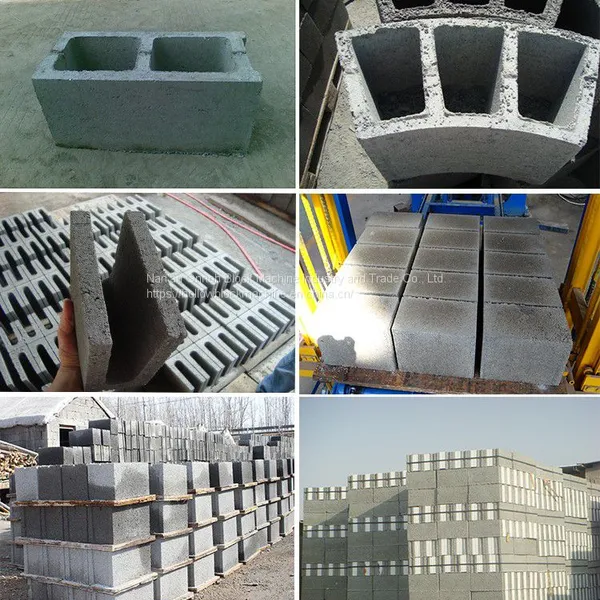

5) Changing the mold can produce a variety of cement bricks, hollow bricks, paving bricks and so on.
