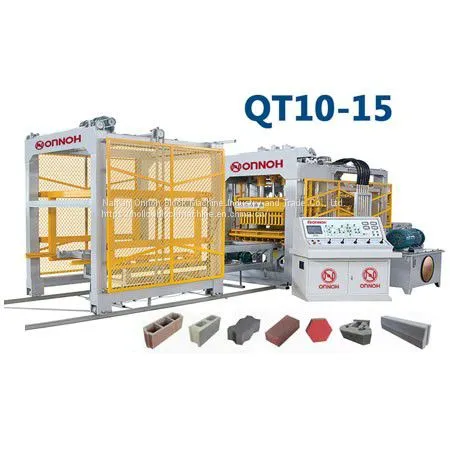

Automatic concrete brick making machine big model QT10-15 ONNOH block machine line paver blcok machine
- 30 Set / Sets per Month
- XIAMEN
- T/T L/C
- 45 days
- QT6-15 hollow block forming machine solid brick machine medium block machine
- Road construction mixing plant concrete batching mixing plant
- Ready mixing plant concrete batching mixing plant mix equipment
- Stabilized soil mixing plant for road WBS300
- QLB series Asphalt concrete mixing plant for road asphalt batching plant
- Mini asphalt concrete mixing plant QLB60
Product Details
Brand Name: | ONNOH | Place of Origin: | China | Model Number: | QT10-15 |
Certification: | CE | Type: | Interlock Block Making Machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 year | Dimension(L*W*H): | 3200*2510*2750MM | Voltage: | 125KVA |
Power: | 53.9kw | Condition: | New | Automatic: | Yes |
Capacity: | 10Pcs/time for 400*200*200mm | Method: | Hydraulic Pressure | Processing: | Brick Production Line |
Brick Raw Material: | Concrete |
Product Description
QT10-15 automatic brick machine production line maintains automatic, simple, orderly and efficient block brick production and manufacturing in one step. All production lines are reasonable, properly arranged and compact, covering a small area and indoor space. Automatic production and manufacturing saves a lot of labor costs, and the water flow process is simple and clear, further improving production efficiency;
QT10-15 Block brick making machine simple produce line:
QT10-15 BRICK MACHINE TECHNICAL SPEC.:
QT10-15 Technical speciafications | |
Vibration trequency | 3800-4500(r/min) |
Total weight | 16(T) |
Machine Size | 11500*4050*2800(mm) |
Total power | 48.9(kw) |
Cycle time | 12-20(s) |
Rated pressure | 31.5MPa |
Vibration force | 105KN |
Pallet site | 1100*880*25(mm) |
Vibration type | Hydraulic vibration |
Stacking machine power | 3.0KW |
Qt10-15 ONNOH brick machine adopts high-efficiency servo vibration: it adopts double servo motors with forced synchronization mechanism, which has fast response speed, low noise and good synchronization. The forming parameters can be set according to the requirements of different brick types, and the forming speed is fast; The whole cement brick production process of cement brick machine is generally divided into several stages: raw material → metering → batching → mixing → conveying → forming → storage yard → stacking → curing → delivery, etc. in each stage, the hydraulic system is required to provide different pressure and flow. The traditional oil pump motor determines the power according to the maximum pressure and the maximum flow demand of the equipment, and provides a constant flow at a constant speed.
In different pressure and flow demand stages, the excess hydraulic oil flows back through the overflow valve, resulting in a lot of energy waste. In addition, the servo motor is a high-efficiency rare earth permanent magnet synchronous motor, and the traditional oil pump motor is a three-phase asynchronous motor. Due to the low efficiency and power factor of three-phase asynchronous motor, the efficiency of servo motor is 10% higher than that of traditional oil pump motor under the average working condition of brick making machine.
Fully automatic line as following:
1. Automatic weighing system
2. Twin shaft compulsory mixer
3. Mitsubishi PLC, Touch screen control unit
4. Hydraulic proportional relief valve automatically adjust the oil flow and speed
5. Heave duty frame of steel structure for heave working
6. Mould heat treatment with wire cutting
7. One production line can make all kinds block, just only change the mould
Block sample:
Change different moulds can make different blocks, we can design mould up to client required

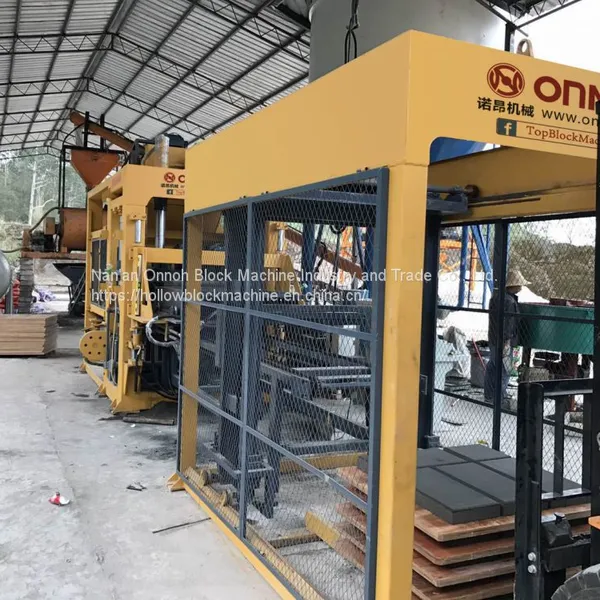

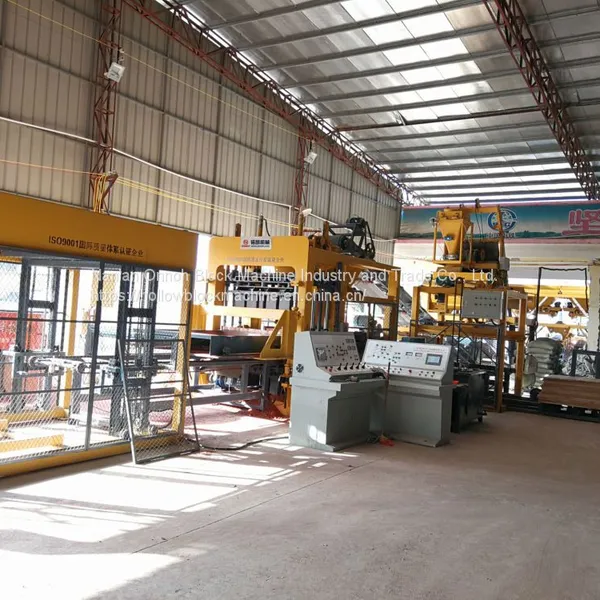

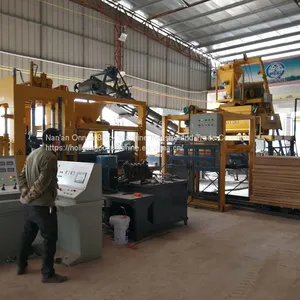

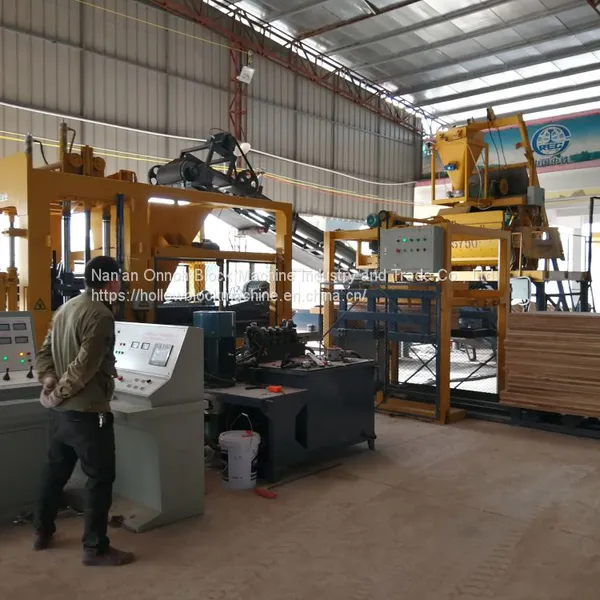

Client case:
