Fiber Optic Equipment Splicing Machine Fiber Optic Fusion Splicer With Auto Core Alignment
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FTTH Core to Core Fusion Splicer Fiber Optic Splicer Fusion Splicing MachineNegotiableMOQ: 1 -
2021 New Automatic ARC FTTH Optical Fiber Fusion Splicer Splicing MachineNegotiableMOQ: 1
-
Mini Fiber Optic Splicing Machine Splicing Machine Fusion Splicer Fiber Optic EquipmentNegotiableMOQ: 1
-
6 Motor Fully Automatic FTTH Fiber Optic Welding Splicing Machine Optical Fiber Fusion SpliceNegotiableMOQ: 1
-
Fusion Splicer With Touch Screen and High Quality Cheap Price for Single Optic Fiber Splicing MachineNegotiableMOQ: 1
Offer

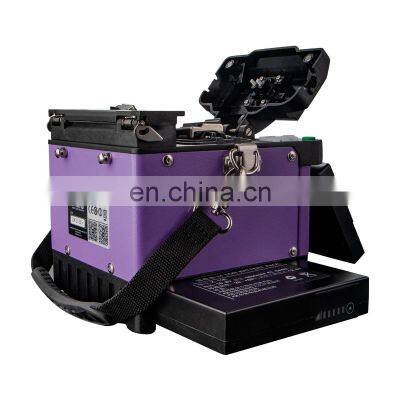

X-500 Fusion splicer
Small and light, easy to carry
4 motors accurate core to core alignment
7 seconds splicing & 26 seconds heating
Automatic & real-time ARC calibration
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Apply to bare fiber, pigtails, drop cable etc.
Suitable for FTTx, FTTH, CATV projects etc.
4 motors accurate core to core alignment
7 seconds splicing & 26 seconds heating
Automatic & real-time ARC calibration
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Apply to bare fiber, pigtails, drop cable etc.
Suitable for FTTx, FTTH, CATV projects etc.
| Alignment method | 4 motors core to core alignment |
| Applicable fiber | SM(G.652),MM(G.651),DS(G.653),NZDS(G.655) |
| Cladding diameter | 80~150μm |
| Coating diameter | 160~1000μm |
| Cleaved length | 5~16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) |
| Typical splice loss | SM: 0.02dB;MM: 0.01dB;DS: 0.04dB;NZDS: 0.04dB |
| Return loss | >60dB |
| Splicing program | 40 groups |
| Operation mode | Manual/ Automatic |
| Auto- heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X(X or Y view), 125X(X and Y view) |

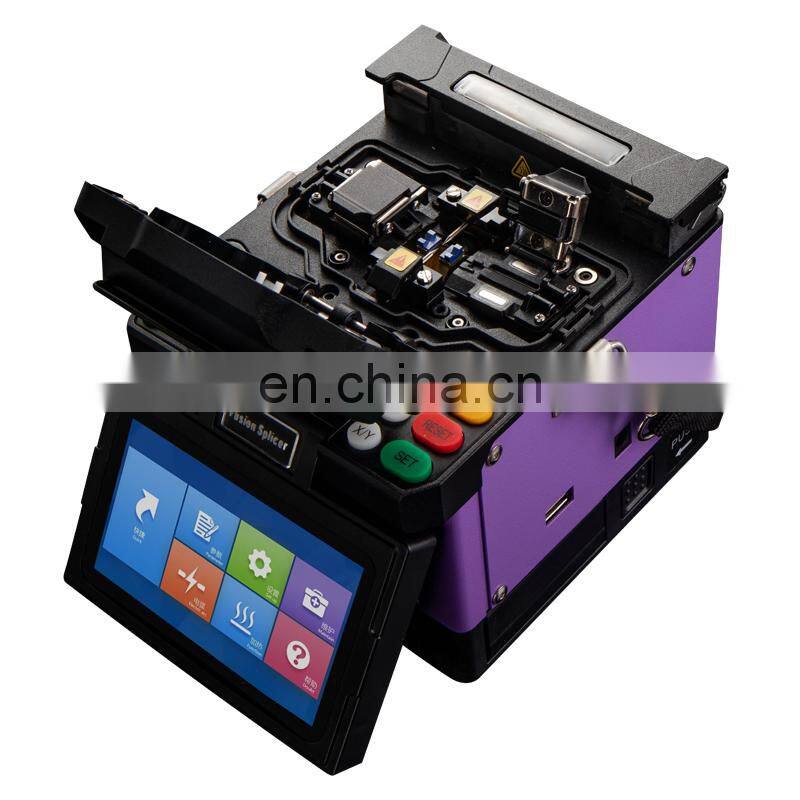

| Viewing display | Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor |
| Data storage | 4000 groups data records |
| Battery capacity | 5200mAh Li-battery, 250 cycles splicing and heating |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, easy to replace |

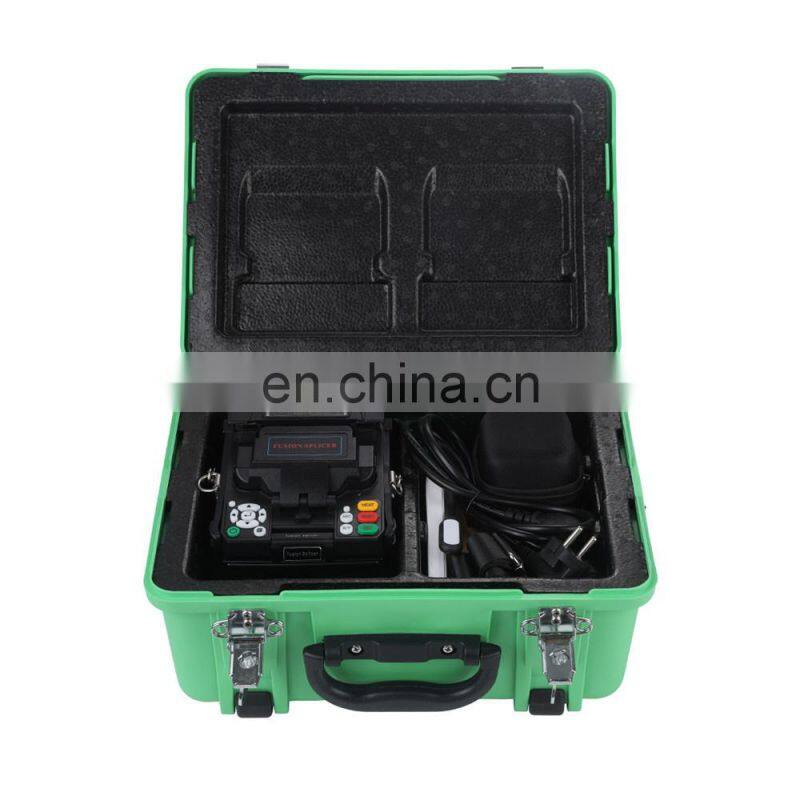

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
Gross weight for one package: 6.50KG
Carton size: 43*37*27cm
will be provided.
Gross weight for one package: 6.50KG
Carton size: 43*37*27cm
