Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Outdoor 1550 CATV Signal Amplifier CATV Line Amplifier CATV Sale Trunk Line Amplifier

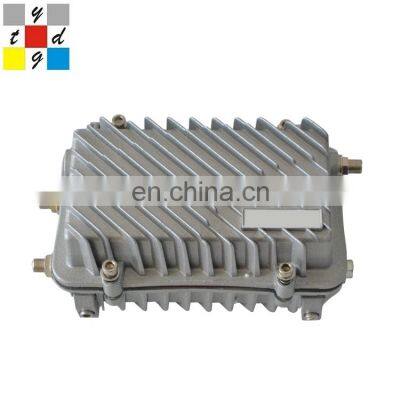

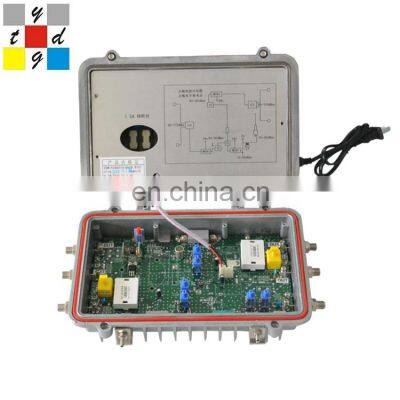

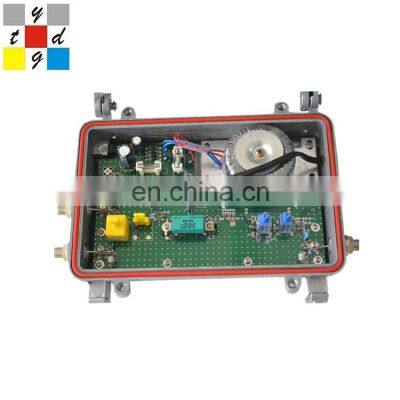

Outdoor 1550 CATV Signal Amplifier CATV Line Amplifier CATV Sale Trunk Line Amplifier
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Outdoor 1550 Nm Catv Trunk Line Amplifier Sale Trunk Line AmplifierNegotiableMOQ: 1 -
Outdoor/Indoor 2 Outputs Catv Signal Amplifier Line Power Signal tv rf Catv Trunk AmplifierNegotiableMOQ: 1
-
High Quality Indoor Outdoor rf Cable tv 2 Outputs Catv Trunk AmplifierNegotiableMOQ: 1
-
Factory 12VA Die Casting Mmic rf Catv Enclosure Power Outdoor tv Trunk AmplifierNegotiableMOQ: 1
-
Different Models Of 1550 Nm Catv Trunk Line Amplifier Sale Trunk Line AmplifierNegotiableMOQ: 1
|
Item : |
Unit |
YTG7134 |
YTG8134 |
reverse parameters |
|
Frequency Range |
MHZ |
47/750 |
47-860 |
5-30/42/65 |
|
Frequency Division ( Selected by the user ) |
MHZ |
30/47,42/58 ,65/87 |
||
|
Rated Gain |
dB |
30 |
30 |
-2 |
|
Flatness In Band |
dB |
±0.75 |
±0.75 |
+0.3 |
|
Rated Input Level |
dBµV |
72 |
72 |
98 |
|
Rated Output Level |
dBµV |
102 |
102 |
96-80 |
|
Gain Adjustment Range |
dB |
0-20 |
-2-18 |
|
|
Slope Adjustment Range |
dB |
0~20 |
-3dB/ grade |
|
|
Noise figure |
dB |
≤8 |
≤10 |
≤6 |
|
(CTB)/59CH input |
dB |
63 |
61 |
78 |
|
(CSO)/59CH input |
dB |
62 |
61 |
70 |
|
Temperature Range (-15℃~45℃) |
dB |
-1.5dB-1dB |
Reverse parameters take SA8134 as example |
|
|
Return Loss |
dB |
≥16 |
|
|
|
Lightning Resistance |
KV |
5(10/700S) |
|
|
|
Power Voltage |
V |
AC 220±10%or AC 30~90v |
|
|
|
Power Consumption |
VA |
12 |
|
|
|
Dimensions |
mm |
190×260×90 |
|
|
|
Working Temperature |
℃ |
-20±50 |
|
|
|
Weight |
Kg |
1.82 |
|
|
|
Bidirectional transmission function |
|
(35/47M or 65/87M)optional |
||
