Features:
l Conform to ITU-T G.984 GEPON standards.
l Two WIFI antenna: a internal antenna , a External antenna
l Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
l Support frame filtering and suppression
l Support standard 802.1Q Vlan function, support VLAN conversion
l Support 4094 VLANs (802.1Q)
l Support Dynamic Bandwidth Allocation (DBA) function
l Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc
l Single ONU supports up to 1 LLID.
l Support IGMP Snooping
l Support Ethernet port ratelimit loop detection
l Support power failure alarm
l Support lightning protection for power supply and lightning protection for service port
l Complies with 2.4GHz IEEE802.11n v2.0 and bacKWFard compatible with IEEE 802.11b/g standards
l Supports NAT/NAPT IP sharing
l WAN Protocols: PPPoE/StaticIP/PPTP/DHCP
l Supports advanced 2T2R MIMO technology to enhance the throughput and coverage range significantly
l High speed data rate - up to 300Mbps
CATV service function:
CATV |
RF Frequency Range: 45~ 865 MHz Optical receiver (CATV): -12 to 3 dBm Reflection loss of light : > 45dBm CATV Operating Wavelength: 1550nm Optical connector type: SC/APC Output Level: > 86 dBμV (0dBm) Output impedance: 75Ω Power Consumption: <3W Temperature: -20~+55℃ |

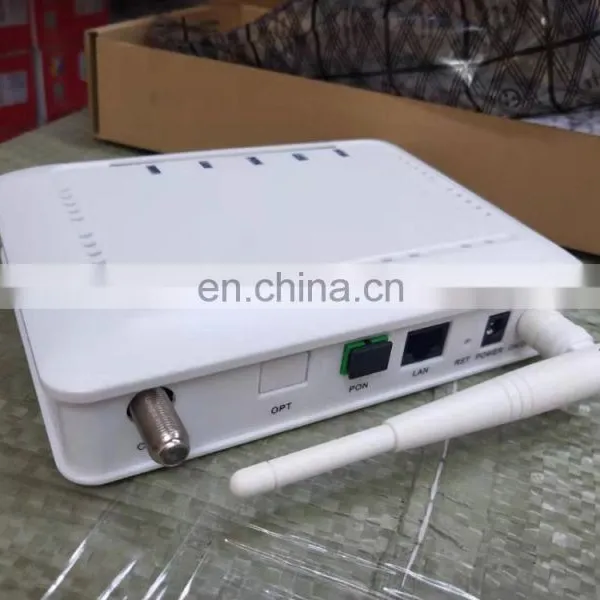

Port features:
l 1 PON ports (2.5G)
l 1 10/100/1000M port
l 2 WLAN Port: a internal antenna , a External antenna
l 1 CATV Port
Physical features:
l Power supply: 12VDC
l Power consumption: 4W
l Dimension: 161mm*38mm*115mm(W*H*D)
l Packing Dimension: 192mm*68mm*128mm(W*H*D)
l Net weight :0.22Kg
l Packing weight :0.35Kg
l Temperature:
Working temperature:0~55℃
Storage temperature: -30~60℃
l Relative humidity: 10~90% (non-condensing)
