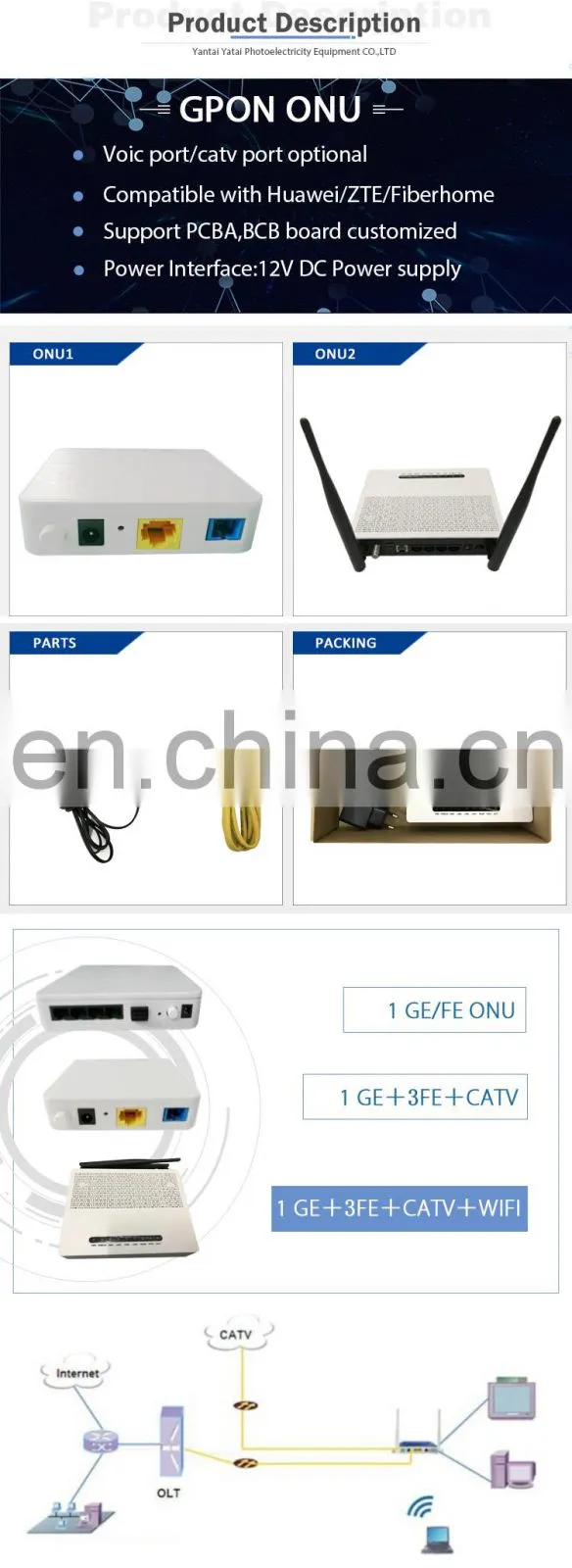

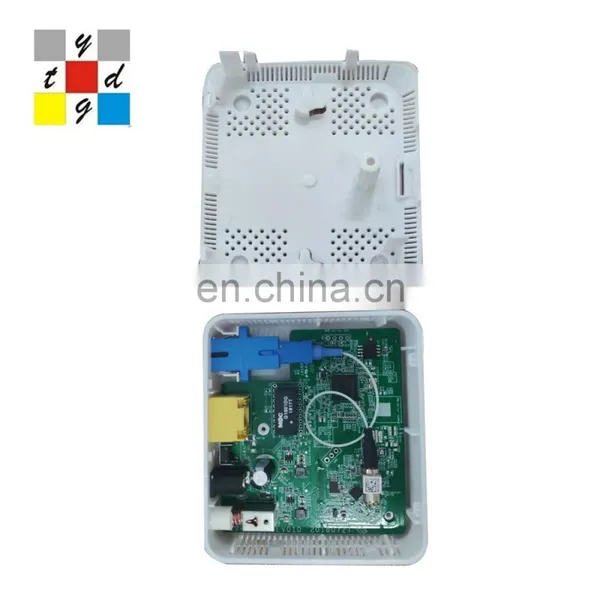

Help CenterEasy Installation White Single Port Plastic Gpon Onu One Port Onu
Related Products
-
1550Nm Catv 1550 Edfa 16 Port 22 Dbm With WDM FunctionNegotiableMOQ: 1 -
Ftth Tool Kit Optical Tools Aluminum Customized Single Fiber Single Mode Yatai Normal ISO9001 Fiber Cleaver and Optical PowerNegotiableMOQ: 1
-
Factory Price Catv Modulator Cable Tv ModulatorNegotiableMOQ: 1
-
Industrial Product Modulator Uhf Vhf Agile ModulatorNegotiableMOQ: 1
-
Yantai Yatai Wholesale White Catv Wifi Gepon Onu OEM / ODMNegotiableMOQ: 1
GPON Interface Specifications
|
Parameter |
Nominal |
|
Connector style |
SC/PC |
|
PON quantity |
1 |
|
Fiber style |
Single mode |
|
Wavelength |
TX:1310 +/-20nm RX:1490 +/-10nm |
|
PON interface standard |
ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+ |
|
PON interface receiving rate |
1.244Gpbs |
|
PON interface transmitting rate |
2.488Gpbs |
|
Output optical power |
Min: 0dBm Max: +5dBm |
|
Opticalreceiver sensitivity |
Precede -28dBm |
|
The length of the optical link |
Max 20km |
EPON Interface Specifications
|
Parameter |
Nominal |
|
Connector style |
SC/PC |
|
PON quantity |
1 |
|
Fiber style |
Single mode |
|
Wavelength |
TX:1310 +/-20nm RX:1490 +/-10nm |
|
PON interface standard |
IEEE802.3-2005 1000BASE-PX20+ |
|
PON interface receiving rate |
1.244Gpbs |
|
PON interface transmitting rate |
1.244Gpbs |
|
Output optical power |
Min: 0dBm Max: +4dBm |
|
Opticalreceiver sensitivity |
Precede -27dBm |
|
The length of the optical link |
Max 20km |
