Home > Products > Ready to ship > Warranty period of 3 years!!China Yatai YHP-1550-32P 32 ports optical amplifier Gpon edfa with wdm

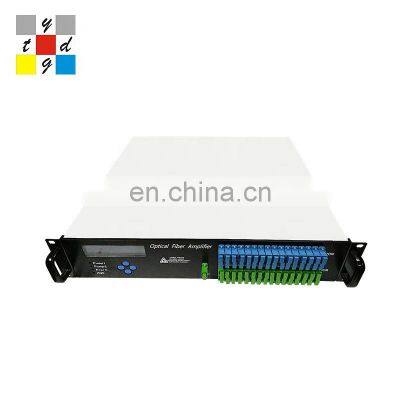

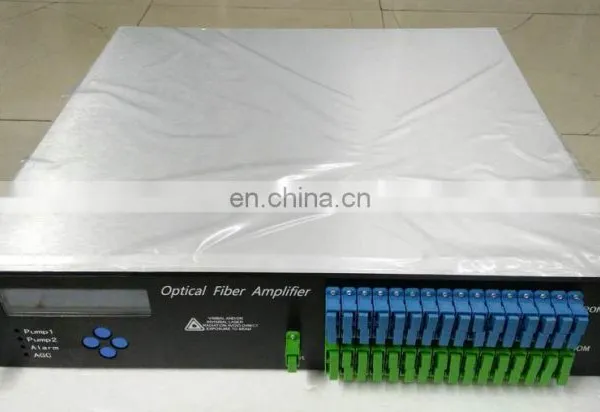

Warranty period of 3 years!!China Yatai YHP-1550-32P 32 ports optical amplifier Gpon edfa with wdm

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Company Information

Warranty period of 3 years!!

Product Description

Parameter	Symbol	Min	Typ	Max	Unit
Wave Length*	λc	1530	1550	1565	nm
Saturated Output Power(1)	Po	10	------	33	dBm
Input Power	Δλ	-3	------	+10	dBm
Noise Factor(2)	NF	------	4.6@0dBm Input	5	dB
Output Power Stability	ΔPo	-----	±0.05	±0.3	dB
Optical Return Loss	RL	45	-------	------	dB
Input Isolation	ISOi	30	-------	------	dB
Output Isolation	ISOo	30	-------	------	dB
Polarization Dependent Gain	PDG	------	-------	0.5	dB
Input/Output Optical Connector	SC/APC	------	------	------	------
C/N	------	50	------	------	dB
C/CTB	------	63	------	------	dB
C/CSO	------	63	------	------	dB

Applications

Analog CATV long distance transmission

For video optical Transmission system

Optical Distribution System

FTTH system

Features

Low noise figure: Typical<4.5dB (0dBm input)

Extremely low CSO distortion:<-70dBc

Dual Power can plug high quality power:220V Mixed interpolation with 48V

High stability and reliability: MTBF>100000 hours

Network management Agent use hot swap

Perfect Network management interface: Ethernet,RS-485 and RS-232

Support Telnet and standard SNMP Network management

High precision AGC/APC circuit: Precision is ±0.05dB

Intelligent Temperature Control System: Power consumption and hot radiation reduce

30% than common products

Flexible mechanical and circuit structure(including pure module, Electric module, desktop and 1U structure)

OEM is available

Compatible with BellcoreGR-1312-CORE
