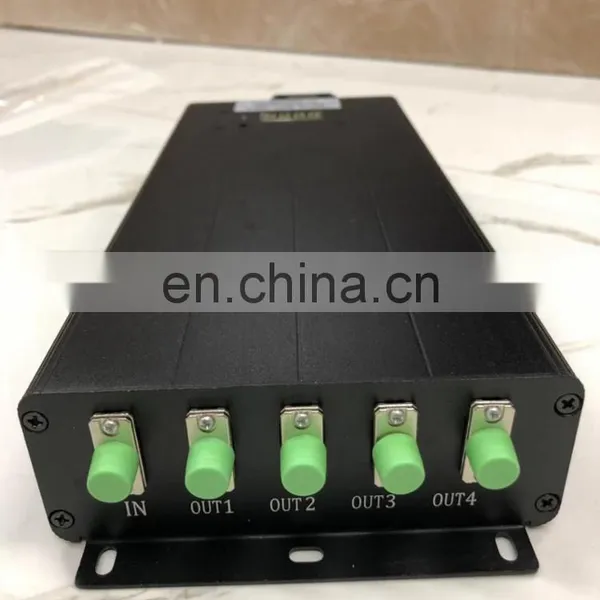

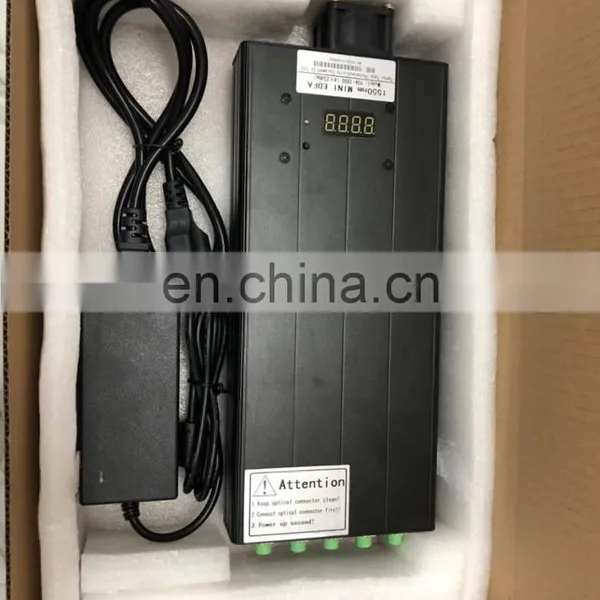

Warranty Period of 3 Years!YMN-1550 Multimode PUMP Laser Mini Power Amplifier EDFA Optical Amplifier For FTTH Optical Access
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Warranty Period of 3 Years! 8 Port 22dbm With WDM 1550nm Catv Optical Amplifier EDFA WITH WDM PON EdfaNegotiableMOQ: 1 -
Warranty Period of 3 Years 2019 Dual Powder 1550Nm Catv Edfa Optic Fiber Ftth Amplifier 1550Nm Fiber Optic EquipmentNegotiableMOQ: 1
-
Yatai Warranty Period of 3 Years!!YHP-1550-8P Optical Fiber Amplifier 8 Ports Edfa for Optical DistributionNegotiableMOQ: 1
-
Warranty Period of 3 Years!!2019 The Only Global 19db Cable Tv Edfa 1310 Ftth High Power EdfaNegotiableMOQ: 1
-
Free Project Design Catv Modulator Hotel System Av Rf ModulatorNegotiableMOQ: 1
Offer
Warranty period of 3 years!!!
Product Description
These products are widely used in CATV transmission system and the high power distributing system FTTH requirement. It can be used for CATV analog/digital signal distribution, or match with PON system to construction the triple network integration. (Triple wavelength WDM is optional)
Product Properties
| Parameter | Symbol | MN | TYP | MAX | UNITS |
| Operating Wavelengh | 1540 | 1550 | 1565 | nm | |
| Saturated Output Power Note1 | Po | 13 | ---- | 33 | dBm |
| Input Power | Pi | -3 | ---- | +10 | dBm |
| Gain | G | ---- | ---- | 30 | dB |
| Noise Figure Note2 | NF | ---- | ---- | 6 | dB |
| Output Power Stability | Po | ---- | ±0.05 | ±0.2 | db |
| Input Isolator | ISOi | 30 | ---- | ---- | dB |
| Output Isolator | ISOo | 30 | ---- | ---- | dB |
| Imput pump Leakage | PLi | ---- | ---- | -35 | dBm |
| Output pump Leakage | PLo | ---- | ---- | -45 | dBm |
| Return Loss | RL | ---- | ---- | -45 | dB |
| Polariziation Dependent Gain | PDG | ---- | ---- | 0.3 | dB |
| Polarization Mode Dispersion | PMD | ---- | ---- | 0.5 | ps |
| Oprating Tempreture | Tw | -5 | ---- | 60 | ℃ |
| Storage Tempreture | Ts | -40 | ---- | 80 | ℃ |
| Humidity Note | ---- | 10 | ---- | 90 | % |
| Input Power Supply | Vps | 100 | ---- | 240 | VAC |
| Output Power Supply | Vps | 5 | ---- | 12 | VDC |
