Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal

Jinan Mingshi Machinery Equipment Co., Ltd
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal thumbnail-1
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal thumbnail-2
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal thumbnail-3
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal thumbnail-4
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal thumbnail-5
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal photo-1
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal photo-2
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal photo-3
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal photo-4
Jinan Mingshi Machinery 1000W CNC Fiber Laser Cutting Machine Metal Laser Cutting Machine for Cutting Metal photo-5
US$ 16000 - 18000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Mingshi
Place of Origin:
China
Model Number:
MSL3015
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Yiwu/Daian/Guangzhou/Tianjin/Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mingshi
Place of Origin China
Model Number MSL3015
Certification CE, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Control Software Cypcut control system
Cooling Mode Water Cooling
CNC or Not Yes
Cutting Speed 100m/min
Cutting Area 3000*1500mm
Cutting Thickness According to material
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type Fiber Laser

Jinan Mingshi Machinery Equipment Co., Ltd

Our company was established in 2010, we have 11 years of experience in CNC and Industrial laser equipment integrating R&D, design, sales, and production.
We have CE and SGS certification, units that value quality and keep promises.
We have a CNC router, wood router, fiber/pipe laser cutting machine, plate and tube cutting machine, and industrial laser equipment.
Team
We have professional technical and salesman. participates in more than 50 large-scale industrial exhibitions at home and abroad, showing machines to more than 30,000 potential customers.
Factory
Our factory covers an area of 10000 square meters and has a modern workshop. There is about 100 production technical personnel and more than 15 research personnel.

Advantages of Fiber Laser Cutting Machine

1. Professional laser optical system and imported lenses, stable and reliable;
2. Efficient and stable programming and control system, easy to learn and humanized, compatible with a variety of CAD drawing formats, intelligent layout to save costs, automatic cutting paths, matching, and saving processing time.
3. The product has low energy consumption and low use cost; the equipment has high stability, simple and convenient maintenance, and low maintenance cost; no mold is required, flexible processing, and can meet the processing requirements of various special-shaped workpieces.
4. High cutting efficiency, high cutting quality, no noise; high speed, high efficiency, cutting sheet speed up to several 30 meters per minute; cutting edge quality, small deformation, smooth and beautiful appearance.

5. Imported high-precision servo motors, guide rails, and German-made gear racks, while ensuring processing efficiency and processing accuracy, greatly improve the stability and reliability of the equipment operation.


Main configuration list

Laser source

1000W Laser source

1 set

MAX

Laser head

Laser head

1 set

RAYTOOLS

Machine tool host machine

Table structure

1 set

Time treatment pipe welding/plate welding bed body


XY gear rack

3 sets

High-precision grinding


Z-axis ball screw

1 set

Taiwan (TBI)


X/Y/Z-axis guide rail

4 sets

Taiwan (PMI)


Pneumatic component

Several

Japan SMC


Electrical part

Several

Schneider


Servo motor

4 sets

Japan Fuji


Reducer

3 sets

Japan SHIMPO


Water chiller

1 set

        Hanli

CNC and software

Laser cutter system

1 set

Weihong control system

xy axis 850w, Z 400w with brake motor

Main parameters

Model

F3015

Laser type

Fiber laser

Laser working medium

Optical fiber

Laser wave length

1060-1080nm

Output rating

1000w

X-axis travel

1500mm

Y-axis travel

3000mm

Maximal acceleration

1.5G

Plate effective cutting range

3000*1500mm

positioning accuracy

0.03mm/m

Repeat the positioning accuracy

±0.02mm/m

Maximum empty speed

100m/min

Power supply rating parameters

3 phase current 380V 50Hz

Common used vulnerable parts

NO

Name

1

Protective lens

2

Focus mirror

3

ceramic body

4

Nozzle

Application industries

Metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, spe-cial automobiles, household appliances manufacturing, tool processing, IT manufacturing, petroleum ma-chinery manufacturing, food machinery , Diamond tool
welding, gear welding, metal material surface treatment, decorative advertising, laser external process-ing services and other machinery manufacturing and processing industries.

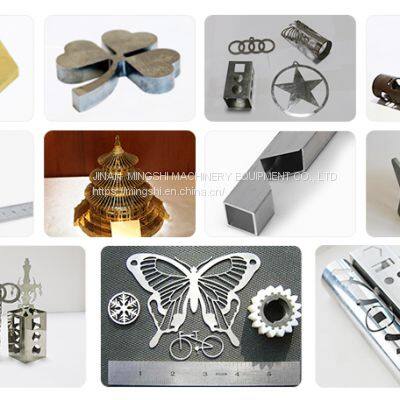

Applicable materials
Professionally used to cut a variety of medium and thin metal plates, high-quality cutting carbon steel pl-ates, and can also cut stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum-zinc plates and other metal materials.

After-sales service

Mingshi laser team can provide 24/7 online service, free technical support. We have professional Pre-sales and after sales service. Mingshi laser team can provide oversea service all over the wo-rld.



Shipping and packing


Please contact us
