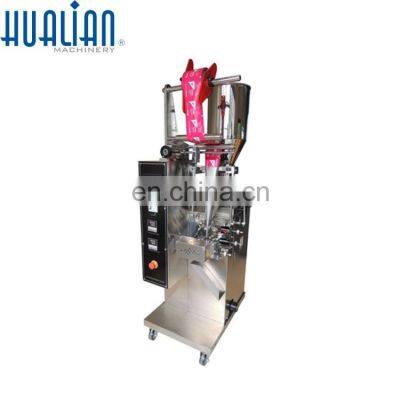

Home > Packaging & Printing > Packing Machinery > Filling Machine > DXDK-40II HUALIAN Tea Herb Bags Packing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2009
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FLG-2000A HUALIAN Screw Blanking Powder Filling Machine For FactoryNegotiableMOQ: 1 -
FLG-20A HUALIAN Powder Filling MachineNegotiableMOQ: 1
-
DXDK-40II HUALIAN Packing MachineNegotiableMOQ: 1
-
DXDK-500II HUALIAN Sugar Package MachineNegotiableMOQ: 1
-
DXDK-2000II HUALIAN Granule Filling and Packing MachineNegotiableMOQ: 1
Product Description
Description:
DXDK series automatic granule packaging machine adopts PLC control bag length regulation and adjustable volumetric cups for
measurement. It is suitable for heat sealable compound materials such as single Paper/PE, Cellophane/PE, Aluminum foil /PE,
BOPP/PE, Nylon/PE etc.
Application:
DXDK series automatic granule packaging machine is widely used to pack soft bag of granular materials in the field of food, daily
chemical and medicine etc.
DXDK series automatic granule packaging machine adopts PLC control bag length regulation and adjustable volumetric cups for
measurement. It is suitable for heat sealable compound materials such as single Paper/PE, Cellophane/PE, Aluminum foil /PE,
BOPP/PE, Nylon/PE etc.
Application:
DXDK series automatic granule packaging machine is widely used to pack soft bag of granular materials in the field of food, daily
chemical and medicine etc.
Product Paramenters
DXDK-20II | DXDK-40II | DXDK-150II | |||
Voltage (V/HZ) | AC 220/50 110/60 | ||||
Power (W) | 1300 | ||||
Capacity (bags/min) | 50-100 | 50-80 | 35-75 | ||
Packing Capacity (ml) | 0.5-20 | 5-40 | 30-150 | ||
Length of Bag (mm) | 35-85 | 50-110 | 80-150 | ||
Width of Bag (mm) | 25-70 | 30-80 | 30-110 | ||
External Dimensions (L*W*H) (mm) | 930*720*1900 | 1060*720*1900 | |||
Net Weight (kg) | 200 | 220 | |||
DXDK-500II | DXDK-1000II | DXDK-2000II | |||
Voltage (V/HZ) | AC 220/50 110/60 | ||||
Power (W) | 1700 | 2000 | 2000 | ||
Capacity (bags/min) | 35-70 | 25-50 | 15-35 | ||
Packing Capacity (ml) | 20-500 | 50-1000 | 50-2000 | ||
Length of Bag (mm) | 50-220 | 50-250 | 50-300 | ||
Width of Bag (mm) | 30-150 | 50-200 | 50-220 | ||
External Dimensions (L×W×H) (mm) | 1150×860×1850 | 1150×860×2070 | 1150×860×2170 | ||
Net Weight (kg) | 320 | 330 | 350 | ||
DXDK-500V | DXDK-1000V | DXDK-2000V | |||
Voltage (V/HZ) | AC 220/50 | ||||
Power (W) | 1800 | ||||
Capacity (bags/min) | 20-30 | 15-25 | 10-20 | ||
Packing Capacity (ml) | 50-500 | 100-1000 | 200-2000 | ||
Length of Bag (mm) | 50-220 | 50-250 | 50-300 | ||
Width of Bag (mm) | 30-150 | 30-200 | 50-220 | ||
External Dimensions (L×W×H) (mm) | 1100x800x1900 | 1200x900x1900 | 1300x1000x2000 | ||
Net Weight (kg) | 320 | 350 | 400 | ||
Product packaging
Model | DXDK-40II |
Pcs/CTN (pc) | 1 |
Package Type | W/C |
Gr. Wt. (kg) | 256 |
Net. Wt. (kg) | 201 |
Dimensions(cm) | 81*77.5*182 |
Volume each set (cbm) | 1.143 |
Company Profile
FAQ
Q: Are you a factory or a trading company?
A: We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.
Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.
Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
