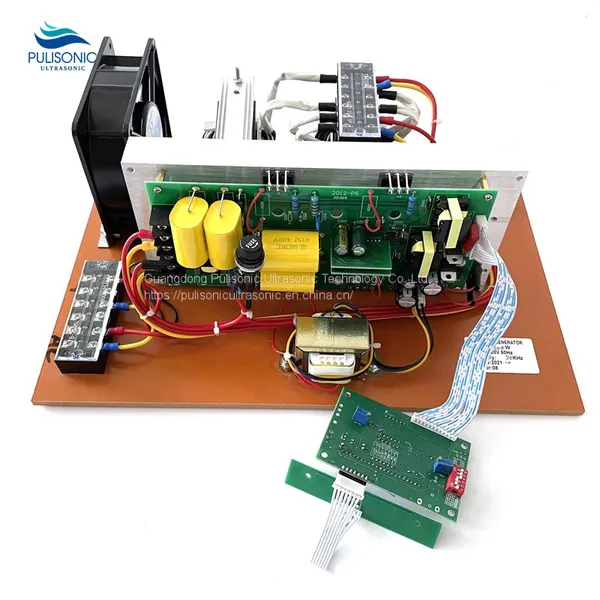

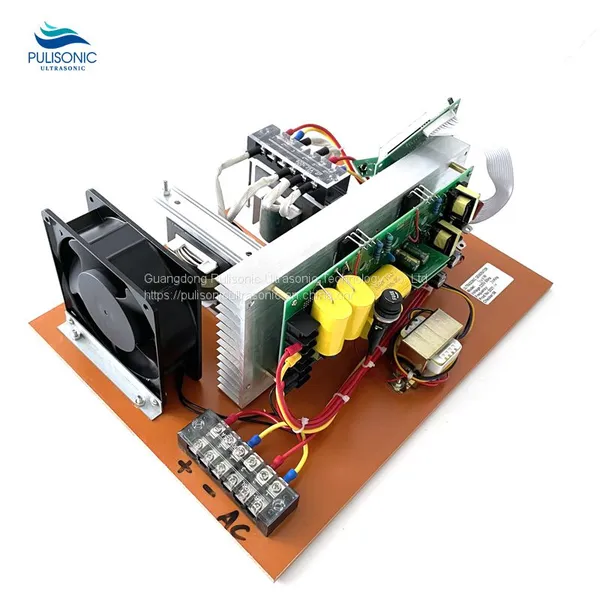

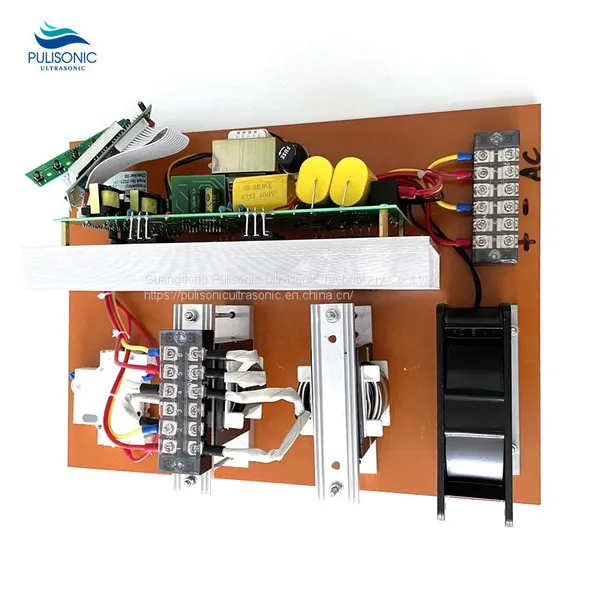

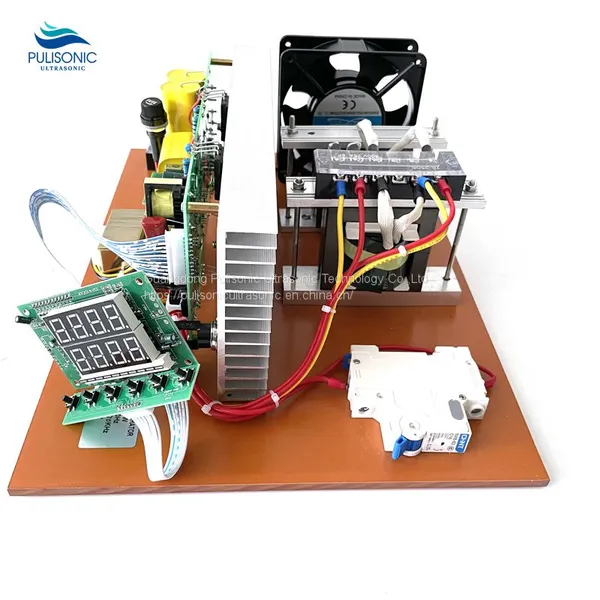

Help Center20KHz 25KHz 28KHz 33KHz 40KHz PCB Type Ultrasonic Cleaning Generator For Industrial Car Parts Cleaner
Related Products
-
28k/40k 300W Industrial Cleaning Machine Ultrasonic Generator PCB For DishwasherUS$ 110 - 130MOQ: 1 Piece -
Various Frequency Ultrasonic Cleaner Generator Circuit PCB 28K/300W Transducer Power SourceUS$ 110 - 130MOQ: 1 Piece
-
40K/60W Ultrasonic Frequency Generator PCB Vegetable/Fruits Cleaner Circuit BoardUS$ 30 - 35MOQ: 1 Piece
-
Cleaner Ultrasonic Frequency Generator PCB Work With 1PCS 40K 60W Piezoelectric TransducerUS$ 38 - 41MOQ: 1 Piece
-
28k/100W Ultrasonic Cleaner Generator PCB For Driving 2PCS Dishwasher TransducerUS$ 45 - 48MOQ: 1 Piece
The ultrasonic cleaning equipment is made up of ultrasonic generator and ultrasonic transducer. The ultrasonic generator is an important part of the ultrasonic cleaning equipment, which is responsible for providing energy to the ultrasonic transducer during the working process. In order to achieve a high efficiency of transducers, in addition to providing enough power, the frequency of the generator is also consistent with the resonant frequency of the transducer. But the resonant frequency of the transducer usually changes due to heat and aging in the working process, and the ultrasonic generator in the market usually tracks the resonant frequency of the ultrasonic transducer by manually adjusting the output signal frequency.
At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With a computer fault location and display system, its operation and maintenance are more convenient.
Mainly used in ultrasonic cleaners, automatic cleaning lines, laboratory ultrasonic cleaners, ultrasonic generators, ultrasonic transducers, electroplating equipment, industrial chillers, industrial pure water machines, industrial ovens, automated conveyor lines and other industrial equipment. Products are widely used in the electronics industry, hardware industry, die-casting industry, optical industry, automobile manufacturing, aerospace industry, and laboratories of colleges and universities.
Models include: single-tank and multi-tank ultrasonic cleaners; ultrasonic cleaners for the hardware industry; ultrasonic cleaners for the automobile and motorcycle industries; ultrasonic cleaners for the optical industry; ultrasonic cleaners for the electronics industry; ultrasonic cleaners for the LCD industry; high-pressure spray cleaning Machine; Hydrocarbon automatic ultrasonic cleaning machine.
| Type | Frequency(KHZ) | Power(W) | Dimension |
| (mm) | |||
| PLS-MBJ300 | 17,20,25,28,33,40,48, Frequency is adjustable | 300W | 350×300×140mm |
| PLS-MBJ600 | 17,20,25,28,33,40,48, Frequency is adjustable | 600W | 350×300×140mm |
| PLS-MBJ900 | 17,20,25,28,33,40,48, Frequency is adjustable | 900W | 350×300×140mm |
| PLS-MBJ1000 | 17,20,25,28,33,40,48, Frequency is adjustable | 1000W | 350×300×140mm |
| PLS-MBJ1200 | 17,20,25,28,33,40,48, Frequency is adjustable | 1200W | 350×300×140mm |
| PLS-MBJ1300 | 17,20,25,28,33,40,48, Frequency is adjustable | 1300W | 350×300×140mm |
| PLS-MBJ1500 | 17,20,25,28,33,40,48, Frequency is adjustable | 1500W | 350×300×140mm |
| PLS-MBJ1800 | 17,20,25,28,33,40,48, Frequency is adjustable | 1800W | 350×300×140mm |
| PLS-MBJ2000 | 17,20,25,28,33,40,48, Frequency is adjustable | 2000W | 350×300×140mm |
| PLS-MBJ2400 | 17,20,25,28,33,40,48, Frequency is adjustable | 2400W | 350×300×140mm |
| PLS-MBJ2500 | 17,20,25,28,33,40,48, Frequency is adjustable | 2500W | 350×300×140mm |
| PLS-MBJ2600 | 17,20,25,28,33,40,48, Frequency is adjustable | 2600W | 350×300×140mm |
| PLS-MBJ2800 | 17,20,25,28,33,40,48, Frequency is adjustable | 2800W | 350×300×140mm |
| PLS-MBJ3000 | 17,20,25,28,33,40,48, Frequency is adjustable | 3000W | 350×300×140mm |
| Ultrasonic PCB generator could to 3000W,welcome send the enquire | |||
| 600W-3000W Ultrasonic PCB frequency adjustable,with display board | |||
| Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | |||
