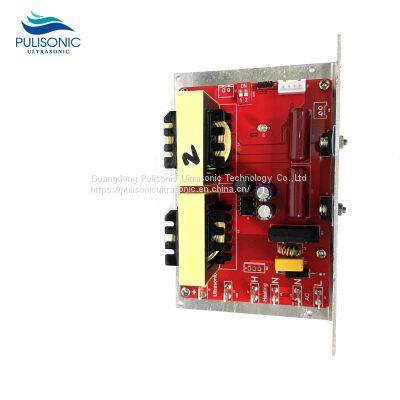

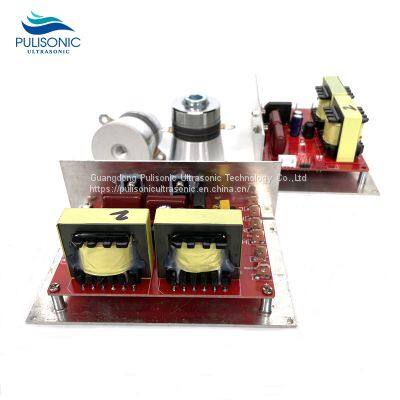

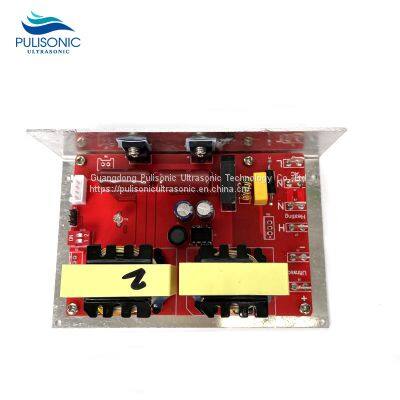

Help Center28k/100W Ultrasonic Cleaner Generator PCB For Driving 2PCS Dishwasher Transducer
Related Products
-
28K/40K 120W Jewelry Cleaner Ultrasonic Frequency Generator Circuit Board For CleaningUS$ 32 - 38MOQ: 1 Piece -
28K/40K 150W Ultrasonic Sweep Frequency Generator Circuit PCB For 3L/4L Jewelry/Dish CleanerUS$ 32 - 38MOQ: 1 Piece
-
200W Ultrasonic Frequency Generator PCB With Display Board For Jewelry CleanerUS$ 75 - 85MOQ: 1 Piece
-
28k/300w Pulse Wave Ultrasound Generator Circuit To Drive Ultrasonic Cleaner Power ManufacturerUS$ 75 - 85MOQ: 1 Piece
-
Industrial Cleaner PCB Driver Various Frequency Ultrasonic Generator Circuit Board 28K/40KUS$ 75 - 85MOQ: 1 Piece
Introduction of low-power ultrasonic generator: The control box adopts advanced technology such as other exciting circuit under the control of microcomputer, automatic frequency tracking and frequency sweeping working mode. Compared with the traditional control box, it has stable and reliable operation and continuously adjustable ultrasonic power, which can maximize the potential of the transducer. The working frequency is automatically tracked, so that the output matching is better, the power is stronger, and the efficiency is higher. The unique frequency sweeping working method makes the cleaning liquid form a small backflow under the action of frequency sweeping, and timely takes the dirt stripped off by the ultrasonic away from the surface of the workpiece, so as to achieve a faster and more thorough cleaning effect, and the ultrasonic cleaning efficiency is more high. At the same time, it has complete protection functions: overheat protection and overcurrent protection, which makes the work more reliable. Low-power ultrasonic generator with digital power adjustment can adapt to various cleaning requirements.
A. Product advantages:
1. Suitable for a small number of single transducers or less than 6 transducers;
2. Small size, easy to install in the washing machine shell or inside the power distribution cabinet;
3. Suitable for all kinds of small or micro cleaning machines.
4. The technology is stable and mature, and the similar miniature generator has a long service life.
B. Product features:
1. All power output components, IGBTs, are imported components, which have the advantages of small size, high power, and fast response;
2. Power tube: adopt imported Japanese Toshiba 90A/1200V imported tube to prevent the possibility of tube burning;
3. The externally excited control circuit has an output power of more than 93%, which greatly increases the ultrasonic cavitation density;
4. The output current is a sine wave, which can prolong the service life of the transducer and the generator itself;
5. Wide-range sweep frequency: 23KHZ-40KHZ adjustable, suitable for various transducers;
6. The power can be adjusted.
Application of micro ultrasonic generator (power supply):
Mainly suitable for: cleaning batch workpieces. Such as mechanical parts, mechanical gears, mechanical parts, auto parts, auto parts, auto gears, stainless steel tableware, parts cleaning before plating, watch straps, hardware mechanical parts, filter cores, silicon wafers, lenses, spectacle frames, jewelry, glass Utensils, surgical instruments, motor rotors, stators, exchangers, radiators, furniture accessories, fins, aluminum-iron-copper adzes, ductile iron parts, cylinder parts, shells, piston rings, hydraulic machinery, compressors, engine parts And so on, pressing and punching hardware parts, the cleaning of the production process or the terminal, such as hairdressing silk or hair on the model's head, real hair, etc. Etc. cleaning: high efficiency, good effect, amazing effect on oil stains, wax, dust on the workpiece and fine seams that cannot be cleaned by ordinary methods.
| Model | Power | Frequency | Voltage |
| PLS-WDLB50W | 50W | 28khz-40khz | 110V/120V/220V/240V |
| PLS-WDLB60W | 60W | 28khz-40khz | 110V/120V/220V/240V |
| PLS-WDLB100W | 100W | 28khz-40khz | 110V/120V/220V/240V |
| PLS-WDLB120W | 120W | 28khz-40khz | 110V/120V/220V/240V |
| PLS-WDLB150W | 150W | 28khz-40khz | 110V/120V/220V/240V |
