Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Mixer > Fully Automatic Plastic Heating Cooling Mixer SRL-Z300/600 High Speed PVC Raw Materials Hot Cold Mixing Machine Units

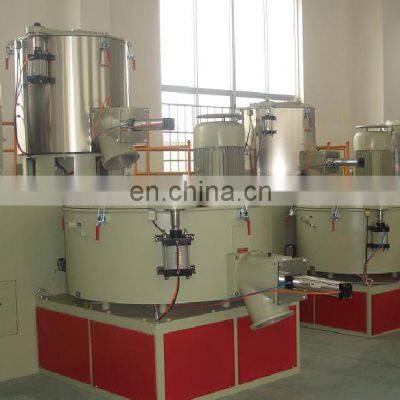

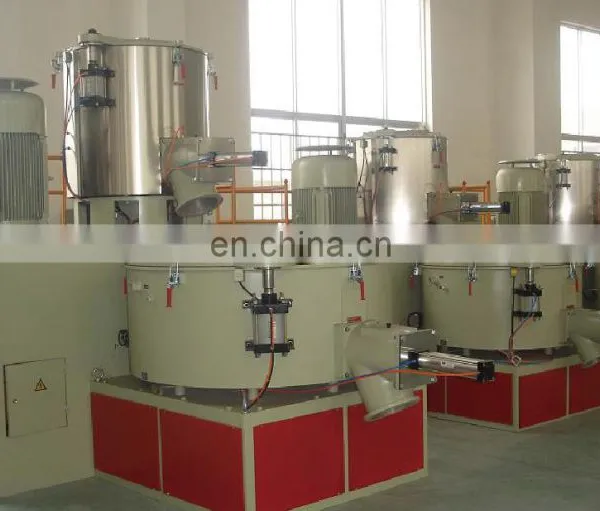

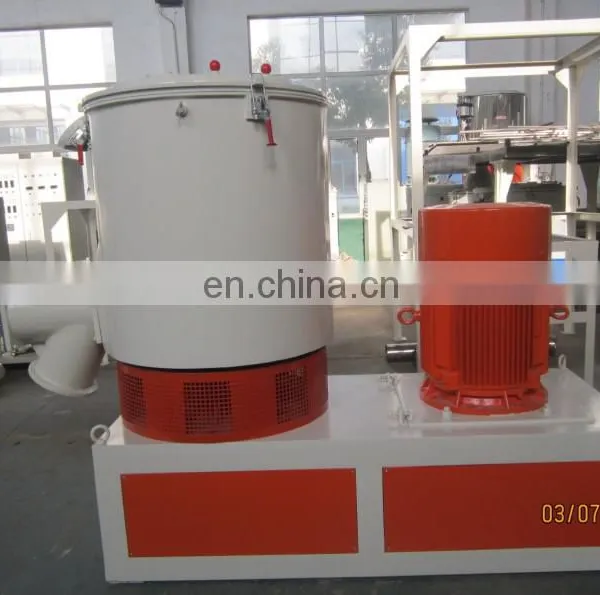

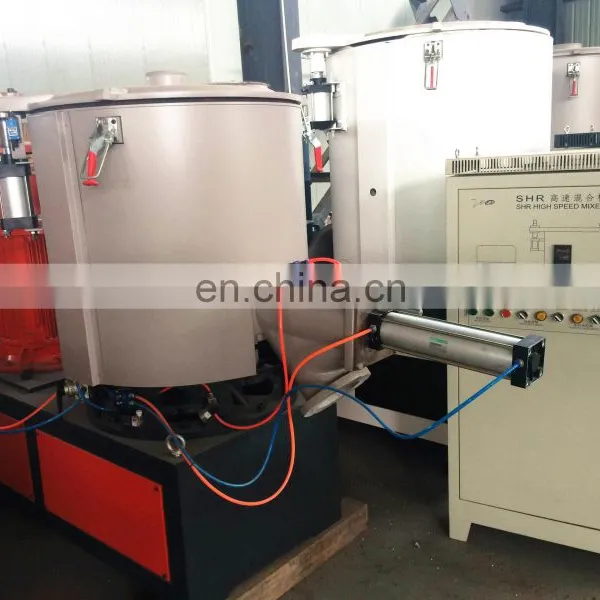

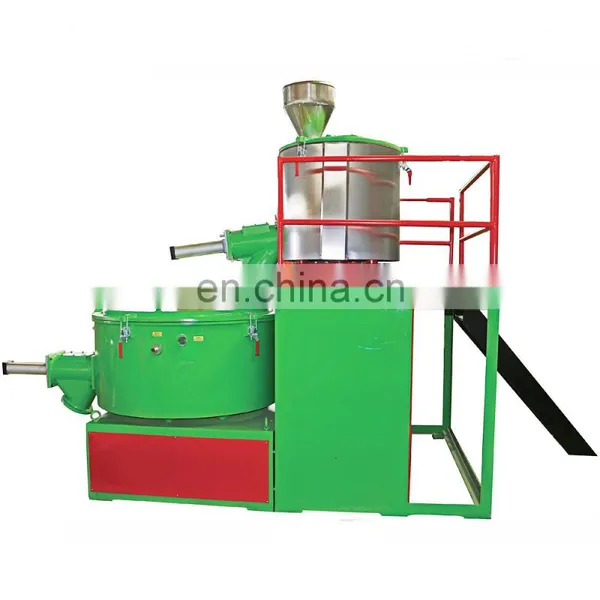

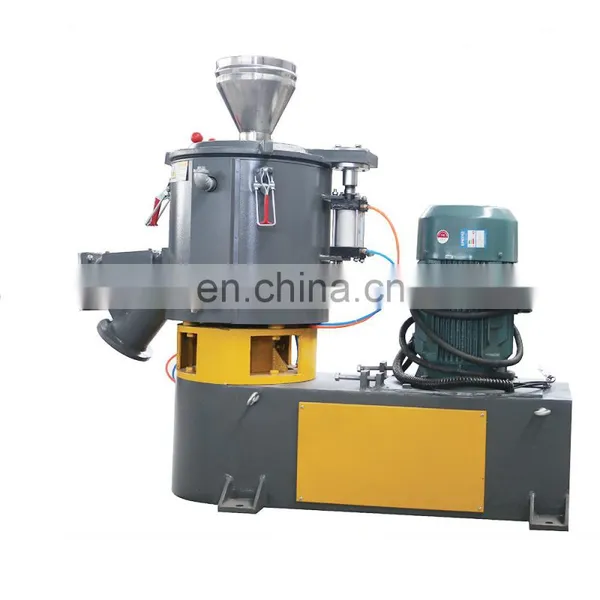

Fully Automatic Plastic Heating Cooling Mixer SRL-Z300/600 High Speed PVC Raw Materials Hot Cold Mixing Machine Units
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2003
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Recycled Plastic Sheet Waste Recycling Plant Plastic Waste Recycling MachineNegotiableMOQ: 1 -
Plastic Granules Making Machine Twin Screw Extruder Screw BarrelNegotiableMOQ: 1
-
Twin Extruder Screw Spare Parts Plastic Extruder Screw And Barrel For ExtrusionNegotiableMOQ: 1
-
High Precision Machining Customized Single Extruder Screw Barrels Plastic Machine Screw and Barrel for PP/PENegotiableMOQ: 1
-
High Wear Resistance Barrel For Single/Double/Triple Screw Extruder for SaleNegotiableMOQ: 1
Type | Volume(L) | Effective Volume(L) | Mixing time(min/batch) | Rotate speed(r/min) | Motor(KW) | Capacity(KG/H) |
GS-10A | 10 | 7 | 6-8 | 1500 | 3 | 20 |
GS-25A | 25 | 20 | 6-8 | 1500 | 5.5 | 50 |
GS-50A | 50 | 35 | 6-10 | 750/1500 | 7/11 | 100 |
GS-100A | 100 | 75 | 6-10 | 650/1300 | 14/22 | 200 |
GS-200A | 200 | 150 | 6-10 | 475/950 | 30/42 | 400 |
GS-300A | 300 | 225 | 6-10 | 430/860 | 40/55 | 500 |
GS-500A | 500 | 375 | 8-12 | 330/660 | 55/75 | 800 |
GS-800A | 800 | 520 | 8-12 | 395/790 | 83/110 | 1400 |
Model | Capacity(KG) | Power(KW) | Dimensions(mm) | Weight(KG) |
GS-H50KG | 50 | 1.5 | 830x830x1120 | 125 |
GS-H100KG | 100 | 3 | 1000x1000x1280 | 180 |
Plastic Granulator Machine Spare Parts
Screw element type for each function: Feeding, Melting, Mixing, Venting, Pressurization
The intermeshing screws co-rotate and wipe each other with narrow clearance so that no residues are left in the screw flights and cleaning effort is thus reduced.
The function of screw element is mainly used to convey materials. Feeding and degassing sections generally have the long pitch to improve the material conveying and degassing. For material of low bulk density, feeding sections can use deep channel components to increase feeding capacity. The metering extruded segmented screw elements generally adopt the small pitch which is used to pressurize, improve the density of the material at the die head, and make the extrusion more stable.
The kneading block is generally used for melting and mixing of the material. Heat energy is generated by mechanical shear.
Together with heating of the barrel, material can be melted and mixed quickly, with special elements to distribute the material more evenly.
The screw shaft system is characterized by the following:
1. Screw elements with various pitches and lengths
2. Kneading blocks with various angles of stagger, numbers of kneading disks and disk widths
3. Screw tips to fix the screw set axially
4. Gear teeth connection to ensure power flow between the screw shaft and screw elements.
MANUFACTRUING OF THE SCREW ELEMENTS
Advanced CNC equipment is used for processing to ensure teh precision of the products. Through the reasonable process, the consistency of the screw elements can reach 0.02mm, ensureing the interchangeability of the parts.
CUSTOMIZED SCREW ELEMENT
With the application of plastic industry constantly refreshed, more and more customized requirements are from our clients. We serve the customers for a long time, and we had rich experiences. According to the material requirements for the corresponding screw configuration, we can also customize components.
The intermeshing screws co-rotate and wipe each other with narrow clearance so that no residues are left in the screw flights and cleaning effort is thus reduced.
The function of screw element is mainly used to convey materials. Feeding and degassing sections generally have the long pitch to improve the material conveying and degassing. For material of low bulk density, feeding sections can use deep channel components to increase feeding capacity. The metering extruded segmented screw elements generally adopt the small pitch which is used to pressurize, improve the density of the material at the die head, and make the extrusion more stable.
The kneading block is generally used for melting and mixing of the material. Heat energy is generated by mechanical shear.
Together with heating of the barrel, material can be melted and mixed quickly, with special elements to distribute the material more evenly.
The screw shaft system is characterized by the following:
1. Screw elements with various pitches and lengths
2. Kneading blocks with various angles of stagger, numbers of kneading disks and disk widths
3. Screw tips to fix the screw set axially
4. Gear teeth connection to ensure power flow between the screw shaft and screw elements.
MANUFACTRUING OF THE SCREW ELEMENTS
Advanced CNC equipment is used for processing to ensure teh precision of the products. Through the reasonable process, the consistency of the screw elements can reach 0.02mm, ensureing the interchangeability of the parts.
CUSTOMIZED SCREW ELEMENT
With the application of plastic industry constantly refreshed, more and more customized requirements are from our clients. We serve the customers for a long time, and we had rich experiences. According to the material requirements for the corresponding screw configuration, we can also customize components.
We also provide other spare parts : screw shaft,screw element, screw segment, screw barrel for extrusion, screw and barrel, plastic screw, heater, hopper dryer, plastic mixer, laser caliper, laser diameter gauge, high speed mixer, extruder screw barrel, screw and barrel for plastic extruder machine, laser diameter measuring instrument...
Parameters
Model | Screw Major Diameter (D/mm) | D/d | Center distance (mm) |
GS-50 | 50.5 | 1.54 | 22-72 |
GS-65 | 62.4 | 1.54 | 22-96 |
GS-75 | 71 | 1.51 | 28-144 |
GS-95 | 93 | 1.51 | 44-144 |
Raw material | The finished product processing requirements |
38CrMOAlA, SACM645 | Nitriding treatment |
Cr12MoV, Cr12 | Alloy steel |
38CrmoAlA,SACM645,40Cr,AISI4140,42CrMo | Bimetallic of the inner hole centrifugal casting |
GH113,GH132/GH2132/A-286,GH145/InconelX-750 | High temperature alloy;300-1400degree |
Model | Screw Major Diameter(D/mm) | D/d | Center distance(mm) |
GS-50 | 50.5 | 1.54 | 22-72 |
GS-65 | 62.4 | 1.54 | 22-96 |
GS-75 | 71 | 1.51 | 28-144 |
GS-95 | 93 | 1.51 | 44-144 |
Model | Screw Diameter | Lenght | Material | Screw Type |
GS35 | 35.6mm | 150mm | 38CrMoAlA | Twin Screw |
GS50 | 50.5mm | 190mm | 38CrMoAlA | Twin Screw |
GS65 | 62.4mm | 240mm | 38CrMoAlA | Twin Screw |
GS75 | 71mm | 290mm | 38CrMoAlA | Twin Screw |
GS95 | 93mm | 360mm | 38CrMoAlA | Twin Screw |
SPECIFICATIONS FOR LASER DIAMETER CAUGE | ||||
Main performance parameters | Measurement range | 0.1-25mm | ||
Resolution | 0.001mm | |||
Accuracy | +/-0.002mm | |||
Power requirements | AC 180 ~ 260V , 50Hz | |||
Applications | Wire and cable Glass pipes Metal wire and line Extruder combines Drawing machine | |||
Model | Capacity(KG) | Heating Power | Blower | Voltage | Dimensions(mm) | Base Size(mm) | Approx.Net Weight(KG) |
GS-G50KG | 50 | 4.5 | 135 | 380/3φ | 900x600x950 | 160x160xφ73 | 45 |
GS-G75KG | 75 | 5.5 | 210 | 380/3φ | 900x600x1050 | 160x160xφ73 | 56 |
Model | Power(kw) | Output(kg/h) | Rotary cutter diameter * lenght(mm) | Number of sliced strips | Pellet size(mm) |
GS-25 | 0.75 | ≤30 | φ90*50 | ≤3 | φ3*3 |
GS-100 | 1.5/2.2 | ≤100 | φ120*96 | ≤8 | |
GS-300 | 4/5.5 | ≤300 | φ200*100 | ≤14 | |
GS-500 | 5.5/7.5 | ≤500 | φ200*200 | ≤30 | |
GS-900 | 11/15 | ≤900 | φ200*300 | ≤40 | |
GS-1800 | 15/18 | ≤1800 | φ200*400 | ≤80 |
Parallel Twin Screw Technical Parameter | ||
Hardness after hardening and tempering | HB260°-290° | |
Depth of nitriding | 0.55-0.85mm | |
Hardness of nitriding | HV 950-1020 | |
Fragility of nitriding | Less than grade2 | |
Depth of bimetallic layer | 2.0-3.0mm | |
Hardness of bimetallic | HRC59°-65° | |
Depth of chrome plating | 0.02-0.15mm | |
Roughness of the surface | Ra 0.4um | |
Linearity of screw and barrel | 0.015mm/m | |
Parrallel twin screw barrel size 50/65/75/95 | ||
