Help CenterHigh Quliaty CD1 MD1 1t 2t 3t 5t 10t 16t 20t Monorial Wire Rope Electric Hoist for Overhead Crane
Related Products
-
BCD Model 1t 2t 3t 5t 10t 16t 20t Monorial Wire Rope Explosion Proof Electric HoistUS$ 900 - 6500MOQ: 1 Set -
1t 2t 3t 5t 10t 16t 20t Monorial Wire Rope Low Headroom Electric HoistUS$ 1000 - 6500MOQ: 1 Set
-
2ton 3ton 5ton 10ton 16ton 20ton LH Model Electric Hoist EOT Double Girder Overhead Bridge CraneUS$ 12000 - 60000MOQ: 1 Set
-
32ton 50ton QD Model Heavy Duty Electric Top Running Double Girder Overhead Travelling Crane With HookUS$ 15000 - 300000MOQ: 1 Set
-
10+10ton 25+25ton QE Model Double Trolley Double Beam Electric Overhead Bridge Traveling Crane for Lifting Long PipeUS$ 25000 - 300000MOQ: 1 Set
Truss Type Double Beam Rail Traveling Gantry Crane with Electric Winch for Concrete Construction

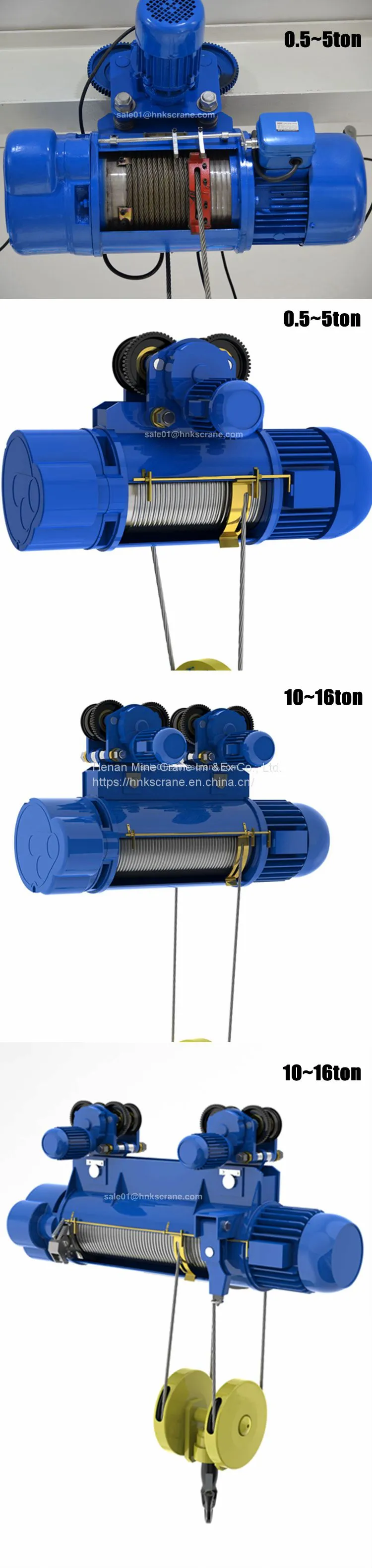

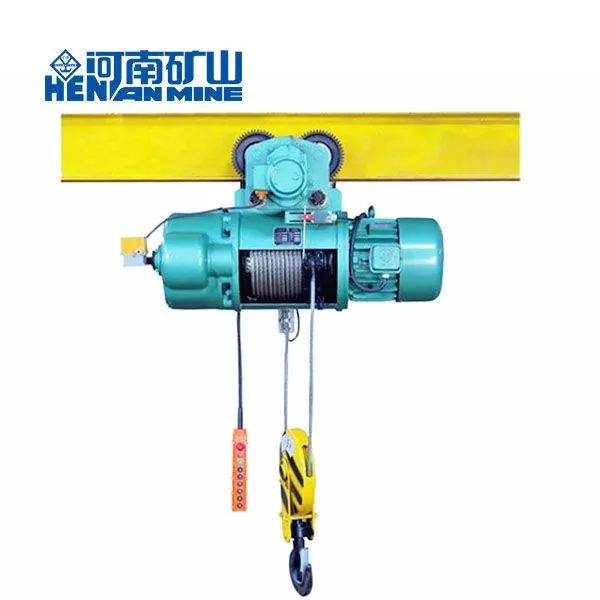

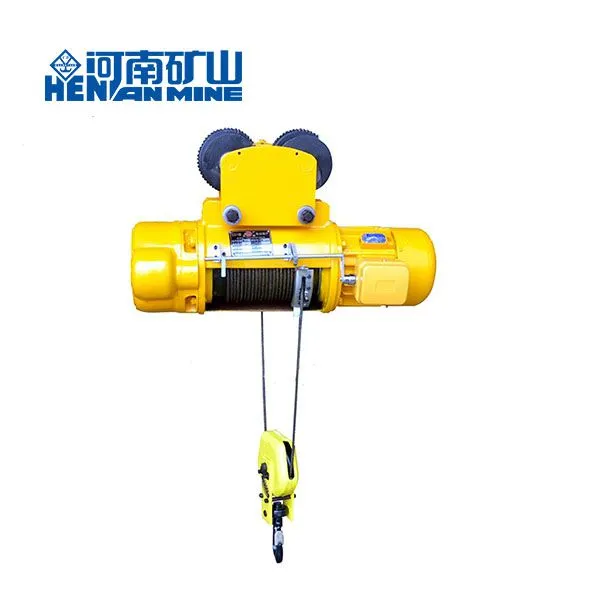

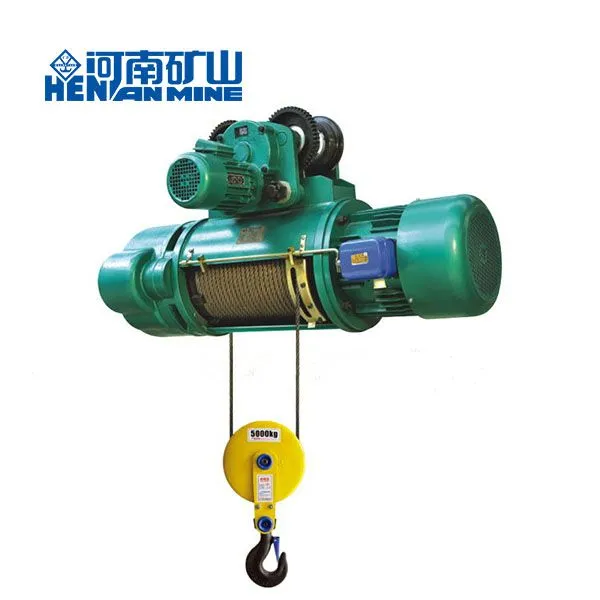

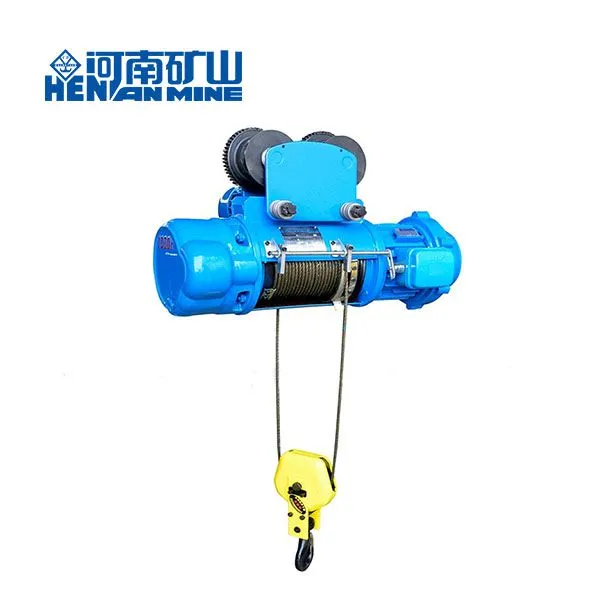

CD1 MD1 wire rope Electric hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and jib cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, is essential in raising working efficiency and improving working conditions.
Model CD1 electric hoist has only one normal speed and low speed, which can satisfy normal application, model MD1 electric hoist provides two speeds: Normal speed and low speed. Thus model MD1 electric hoist is more widely used than model CD1.
Electric wire rope Hoist is assembled from different independent units. All these units are separately accessible and promptly disassembled cost and downtime.
Motor: Hoist Motor is an taper type rotor motor with braking, it is made by Nanjing special motor factory, it is of the best quality motors, it has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.
Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
Wire Rope: Hoisting rope comply with the exporting standards. The leading rope taken by the Drum, does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.
Rope Drum: Grooved Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
Electric apparatus controlling system: Model CD1 and MD1 is composed of the contactor box, controlling switch, cut-off limiter.
Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.
Hook: The Hook Block is tested to 150 % of full load before assembly. The rope sheaves are fully guarded with protective steel casting. All sheaves rotate on ball bearing. The pulley is thicken and dilated than domestic common pulley.
Henan Mine Crane Co., Ltd. was established in 2002 with a registered capital of 1.177 billion yuan, construction area of 1.62 million square meters, more than 4500 employees and more than 3500 sets of advanced processing equipment.
Specializing in the R & D, production, sales and service of more than 110 kinds of cranes and supporting parts in three series of "Kuangyuan" brand bridge cranes, gantry cranes and electric hoists.
Our company is a national high-tech enterprise with a technical team composed of more than 10 industry top experts and more than 200 middle and senior engineers. It is responsible for the innovative design and development of products. At present, it has obtained more than 300 national patents and provincial scientific and technological achievements
In 2020, the production and sales of all kinds of single beam and double beam lifting equipment will be nearly 100,000 sets, with sales of 5.675 billion yuan and tax payment of 205 million yuan. The company has 428 sales and service organizations all over the country, serving more than 6000 medium and high-end customers, and has made remarkable achievements in more than 50 key industries such as aerospace, automobile and ship, steel smelting, petrochemical industry, electronic information, electric power industry, water conservancy, railway and military industry.
The developed intelligent storage crane, precision positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other sophisticated products serve Baosteel, China Railway, MCC, CNNC, AVIC and other large enterprises. The products cover more than 80 countries and regions.
We have rich experience in production and export:
We have exported our cranes to Australia, Bangladesh, Iraq, Pakistan, Philippines, USA, Egypt, Peru, India, Turkmenistan, Singapore, Ethiopia, South Africa, Saudi Arabia, Malta, Albania, Ukraine, Vietnam, Kenya, Nigeria, UAE, Cameroon, Uruguay, Bahrain, Thailand, Kazakhstan, Germany, Sultan,
Chile, Oman, Romania, Malaysia, Armenia, Jordan and so on, received good confirmation and welcomed from them!
