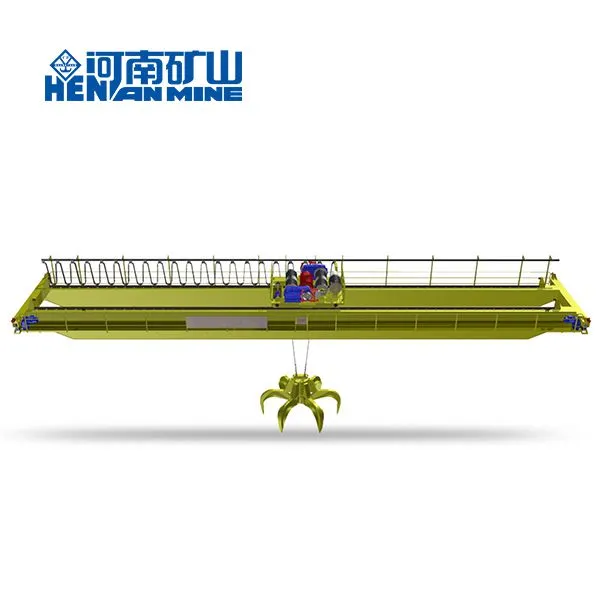

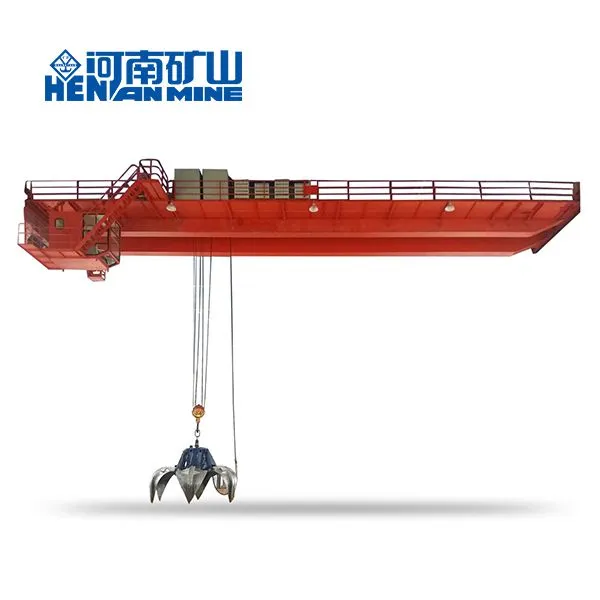

10ton QZ Model Hydraulic Orange Peel Grab Bucket Double Girder Electric Bridge Crane
- 30000 Set / Sets per Month
- Qingdao
- T/T L/C Other
- 65 days
- Pillar column type jib cantilever slewing crane light working duty equipment
- New type boxed single beam bridge crane hoist traveling on square beam
- European design electric hoist double beam bridge crane hard tooth VFD
- Boxed type single girder gantry crane hoist lifting mechanism for sale
- European design double girder overhead crane KSQ model VFD speed control
- QD model double beam overhead crane bridge boxed beams for sale
Product Details
Brand Name: | Kuangyuan | Place of Origin: | China | Model Number: | QZ |
Certification: | ISO CE GOST | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12 Months |
Application: | Plants, factory, steel structure warehouses, material stocks, lift various cargos | Condition: | New | Max. Lifting Load: | 500ton |
Span: | 7.5~31.5m | Rated Loading Capacity: | 5t 10t 16t 20t 32t 50t | Max. Lifting Height: | 30m |
Product Description

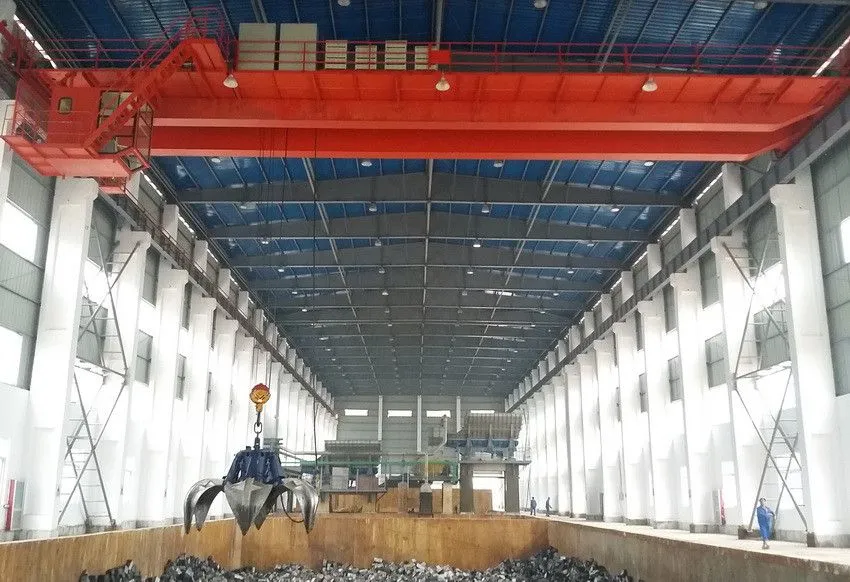

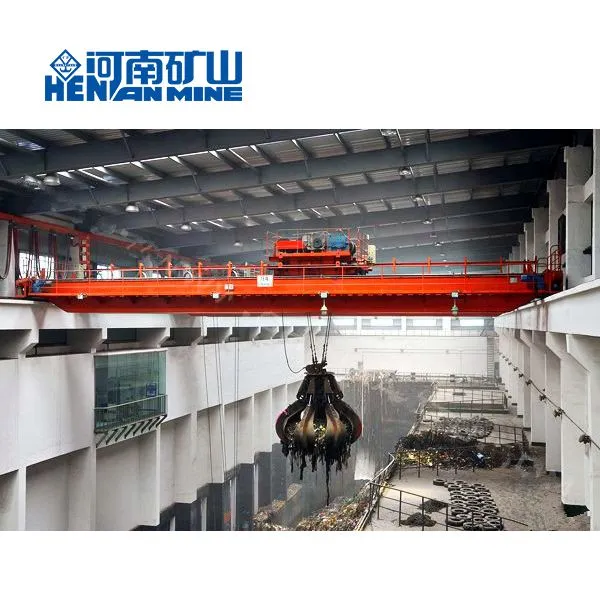

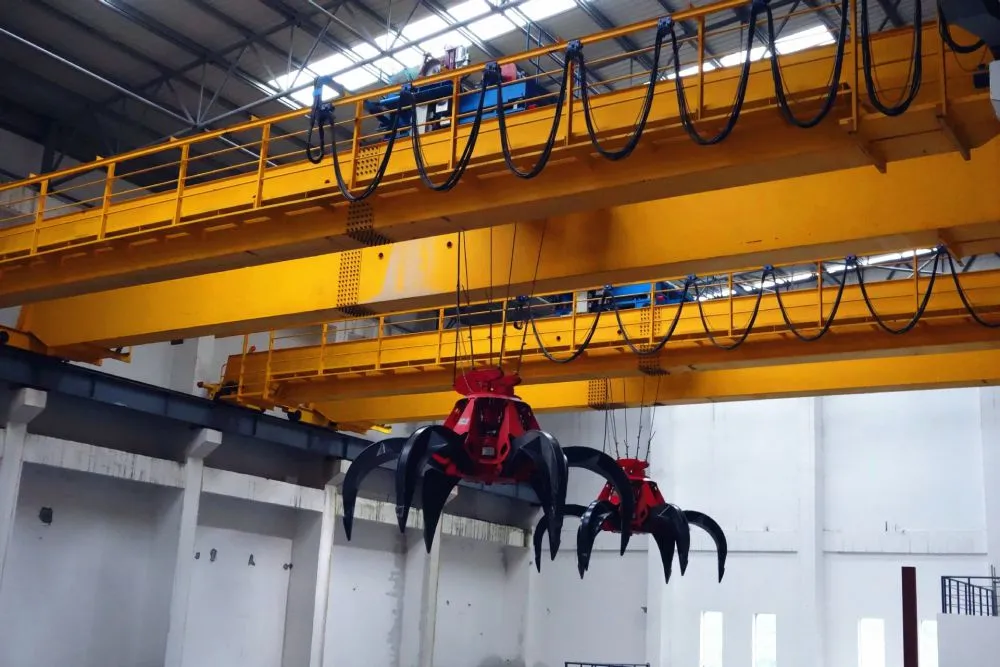

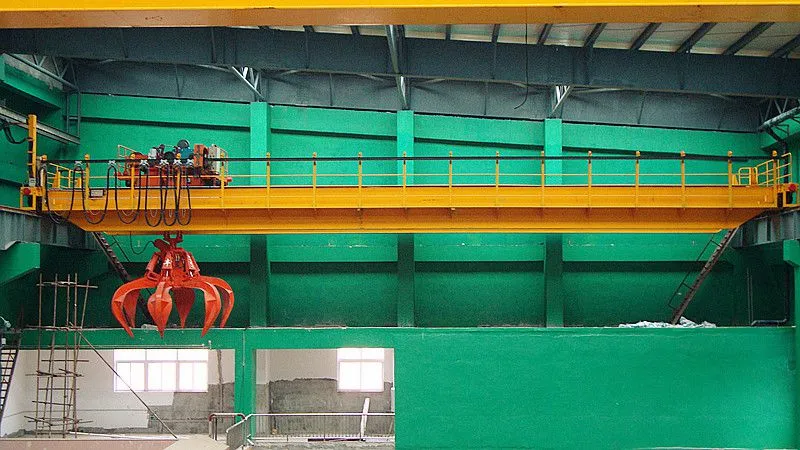

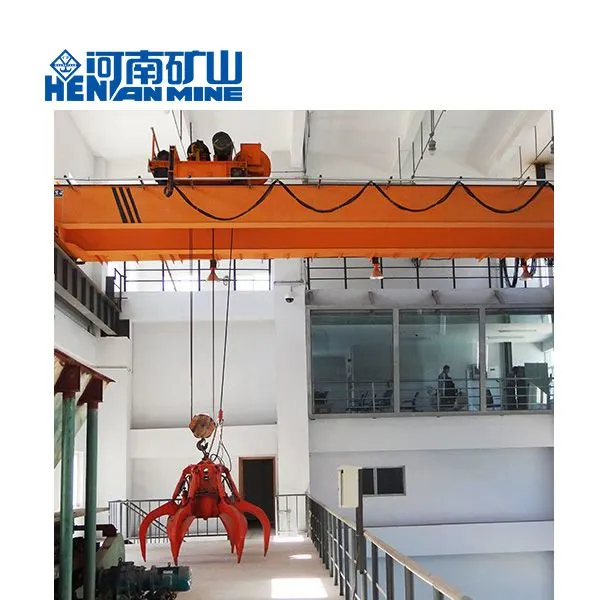

Double girder grab bucket overhead crane is used with grab bucket,to grab coal,corn,fertilizer,sand,or rubbish or municipal solid waste,etc.
Working class A6 A7 A8,usually used in steel factory,glass manufacturer factory,power plant,etc.
Grab buckets can be hydraulic grab bucket or four rope mechanical clamshell grab bucket.
Advanced technologies make Compact structure, Good in usability with long service life, high working class, Flexible operating, safe and reliable, Competitive on quality and price. All those make our QZ type grab crane bring you efficient working environment and uniamginable wealth.
Working conditions:
Working tempreture: -25-40° C,
Work class: A6,A7 or A8
Power Source: 3Ph, 380V, 50Hz or as customer's demand.
Application
Double girder bridge overhead crane allocation hook used in machining, assembly workshop, metal workshop, metallurgy and casting workshop and warehouse handling work; allocation of grab is suitable for metallurgy, cement, chemical or open fixed span in bulk material handling.
Features
1. Reasonable structure and favorable performance.
2. Smooth starting and stopping.
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Designed according to your reques
Safety system:
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system and so on!
Customization
We can design cranes meets your need, it would be very kind of you to give us the data needed listed below:
1. lifting capacity.
2. span length.(cantilever length)
3. lifting height.(hook center to ground)
4. Power supply: Voltage.
5. Do you need rails? How long is the crane traveling distance?
6. Working condition: which material to lift? temprature?
7. Would be better if you have drawings of your plant.
We can design cranes meets your need, it would be very kind of you to give us the data needed listed below:
1. Lifting capacity.
2. Span length. (rail center to rail center)
3. Lifting height. (hook center to ground)
4. Power supply: Voltage.
5. Do you need rails? How long is the crane traveling distance?
6. Working condition: Which material to lift? Temprature?
7. Would be better if you have drawings of your plant.
Capacity (ton) | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | |||||||||||
Span (m) | 13.5~31.5 (Could produce non-standard span for you) | ||||||||||||||||
Lifting height (m) | 12, 16, 14, 18, 20, 22 | ||||||||||||||||
Control way | Cabin control or Pendant control, or Remote control | ||||||||||||||||
Power source | 380V 50HZ 3phase (it is | ||||||||||||||||
Trolley lifting mechanism | |||||||||||||||||
Lifting speed (m/min) | Main hook | A5 | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |||||||||
A6 | 15.6 | 10.4 | 10.7 | 9.8 | 9.5 | 7.8 | |||||||||||
Auxiliary hook | - | - | 14.6 | 15.5 | 15.5 | 10.4 | |||||||||||
Motor power (KW) | Main hook | A5 | 13 | 17 | 26 | 26 | 42 | 55 | |||||||||
A6 | 15 | 22 | 37 | 45 | 55 | 75 | |||||||||||
Auxiliary hook | - | - | 13 | 17 | 17 | 26 | |||||||||||
Trolley traveling mechanism | |||||||||||||||||
Traveling speed (m/min) | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 38.5 | |||||||||||
Motor power (KW) | 1.8 | 2.5 | 4 | 4 | 6.3 | 8.5 | |||||||||||
Crane traveling mechanism | |||||||||||||||||
Traveling speed (m/min) | A5 | 89.8 | 91.9 | 87.6 | 84.7 | 74.2 | 74.6 | ||||||||||
A6 | 92.7 | 93.7 | 89 | 76 | 75.3 | 76.6 | |||||||||||
Motor power(KW) | A5 | 2×6.3 | 2×6.3 | 2×8.5 | 2×8.5 | 2×13 | 2×13 | ||||||||||
A6 | 2×7.5 | 2×7.5 | 2×11 | 2×11 | 2×11 | 2×15 | |||||||||||
Steel track recommended | 43kg/m | 43kg/m or QU70 | QU70 or 90 | QU80 or 100 |
Henan Mine Crane Co., Ltd. was established in 2002 with a registered capital of 1.177 billion yuan, construction area of 1.62 million square meters, more than 4500 employees and more than 3500 sets of advanced processing equipment.
Specializing in the R & D, production, sales and service of more than 110 kinds of cranes and supporting parts in three series of "Kuangyuan" brand bridge cranes, gantry cranes and electric hoists.
Our company is a national high-tech enterprise with a technical team composed of more than 10 industry top experts and more than 200 middle and senior engineers. It is responsible for the innovative design and development of products. At present, it has obtained more than 300 national patents and provincial scientific and technological achievements
In 2020, the production and sales of all kinds of single beam and double beam lifting equipment will be nearly 100,000 sets, with sales of 5.675 billion yuan and tax payment of 205 million yuan. The company has 428 sales and service organizations all over the country, serving more than 6000 medium and high-end customers, and has made remarkable achievements in more than 50 key industries such as aerospace, automobile and ship, steel smelting, petrochemical industry, electronic information, electric power industry, water conservancy, railway and military industry.
The developed intelligent storage crane, precision positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other sophisticated products serve Baosteel, China Railway, MCC, CNNC, AVIC and other large enterprises. The products cover more than 80 countries and regions.
We have rich experience in production and export:
We have exported our cranes to Australia, Bangladesh, Iraq, Pakistan, Philippines, USA, Egypt, Peru, India, Turkmenistan, Singapore, Ethiopia, South Africa, Saudi Arabia, Malta, Albania, Ukraine, Vietnam, Kenya, Nigeria, UAE, Cameroon, Uruguay, Bahrain, Thailand, Kazakhstan, Germany, Sultan,
Chile, Oman, Romania, Malaysia, Armenia, Jordan and so on, received good confirmation and welcomed from them!
