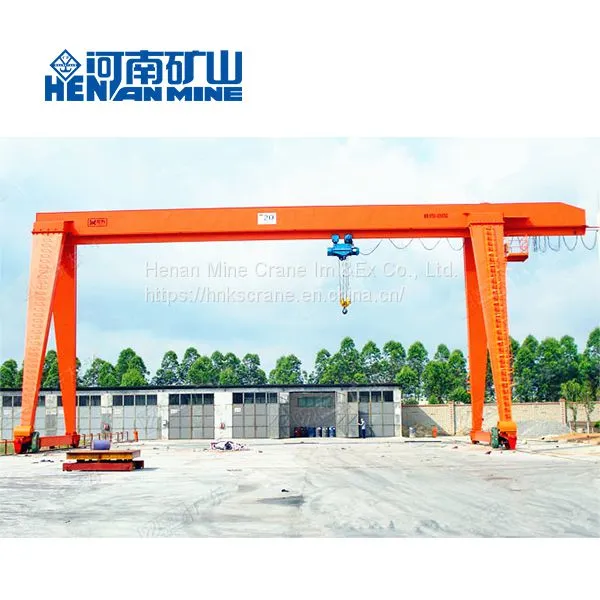

MH Type Outdoors 5ton 10ton Single Girder Electric Hoist Gantry Crane

Name: MH Type Outdoors 5ton 10ton Single Girder Electric Hoist Gantry Crane
Brand: Kuangyuan
Price: $5000 - 100000 / Set

FOB Price

5000 - 100000 / Set

1 Set(Min.Order)

Supply Ability 30000 Set / Sets per Month
Port Qingdao, Tianjin
Payment Terms:T/T L/C
Delivery Detail:50 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Kuangyuan	Place of Origin:	China	Model Number:	MH
Certification:	ISO CE GOST	Warranty:	12months	Application:	Steel plant, concrete girder yard, warehouse, railway, factory, port and so on
Condition:	New	Max. Lifting Load:	25ton	Span:	5m~31.5m
Rated Loading Capacity:	2t 3t 5t 10t 16t 20t	Max. Lifting Height:	35m

Product Description

MH Type Outdoors 5ton 10ton Single Girder Electric Hoist Gantry Crane

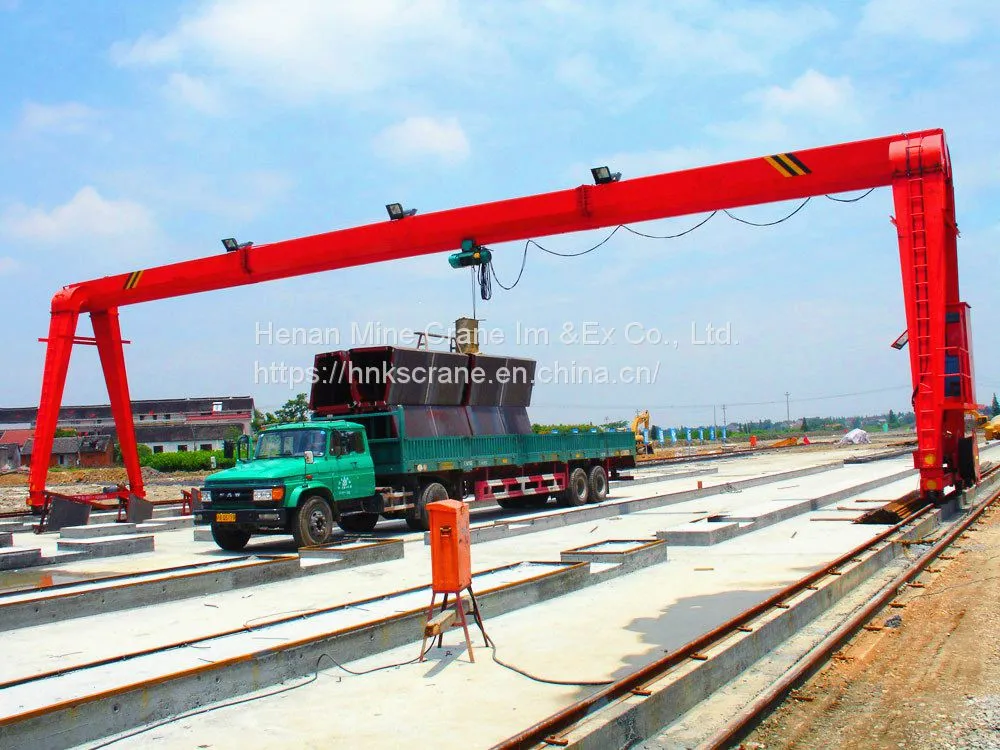

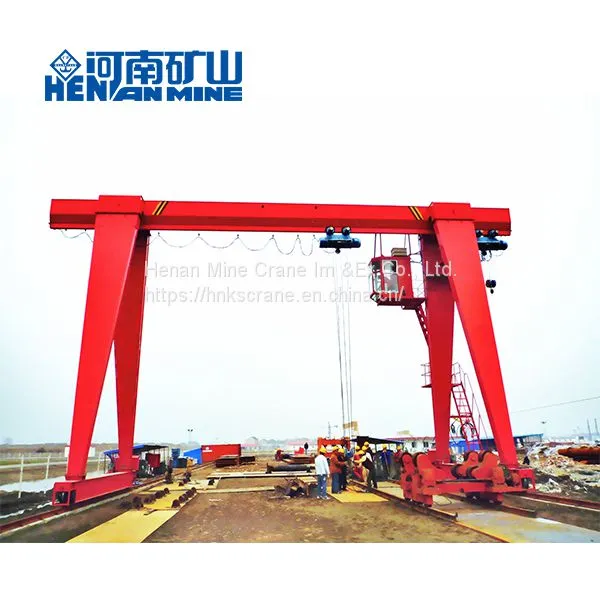

Single beam gantry crane is a kind of track traveling midlight type crane, used together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHLP type gantry crane.

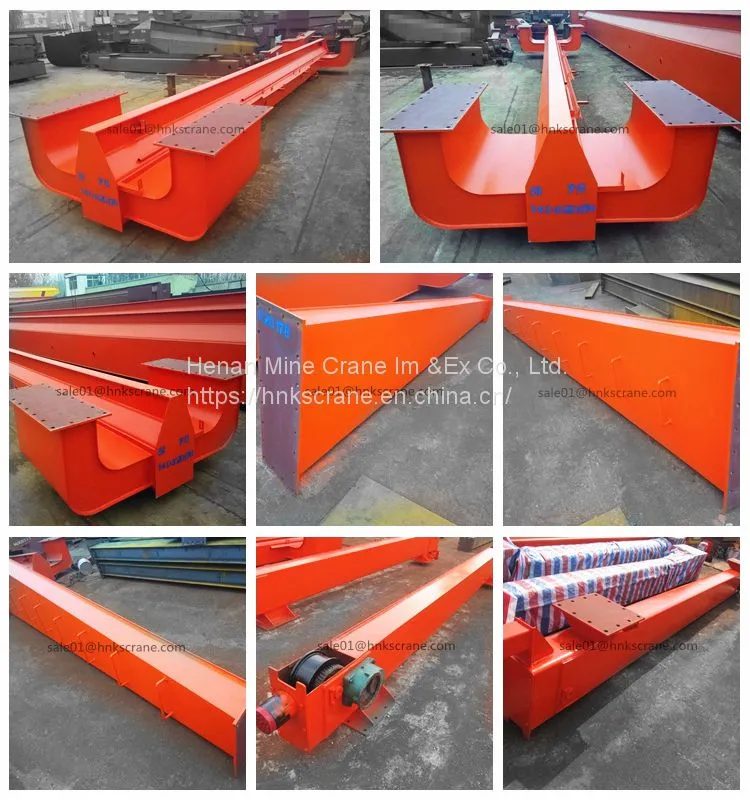

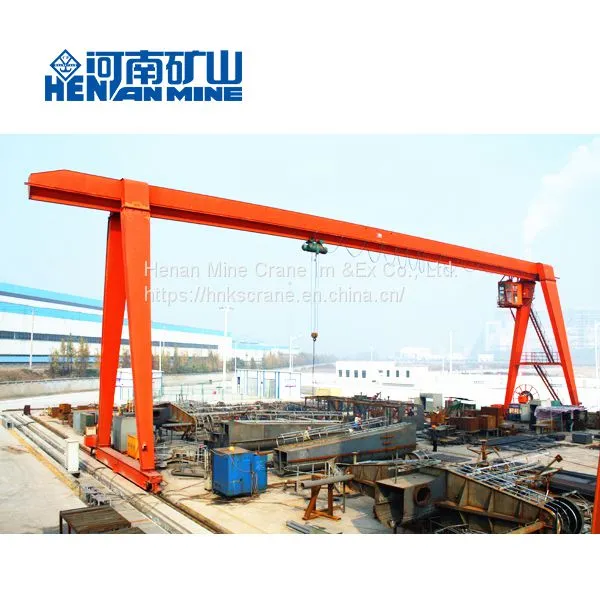

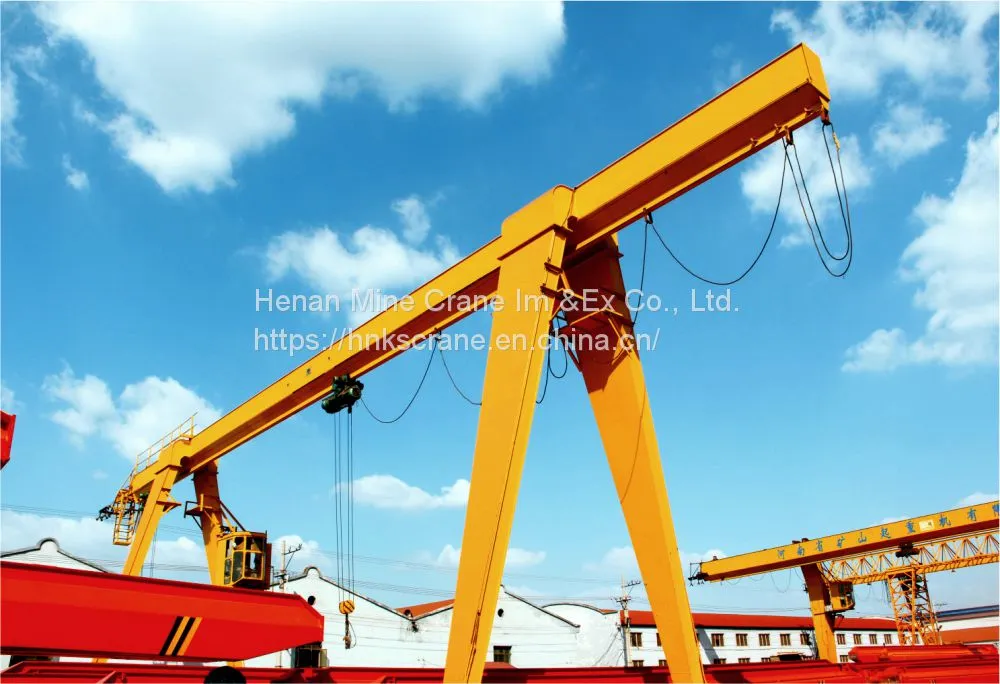

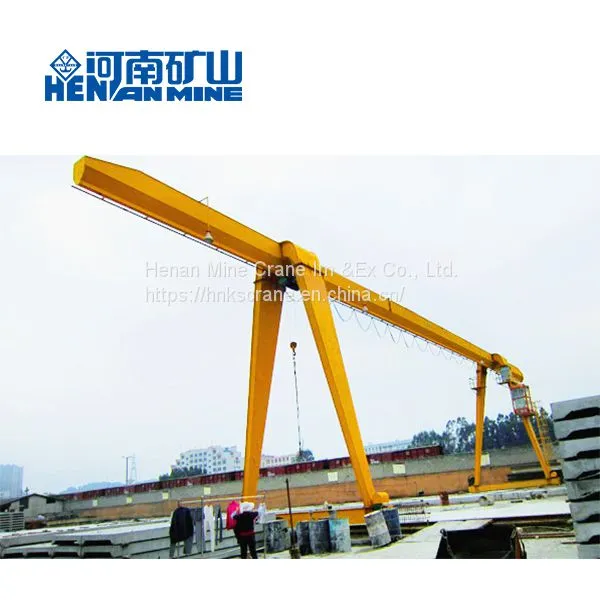

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and noncantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.

MHLP type single girder gantry crane is Ltype partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.

Main Features of Single girder gantry crane:

Simple and compact structure, steady performance.

Easy to install and high efficiency.

Overload, low voltage protective device.

Pendent control and remote control.

Easy maintenance.

Specification of Single girder gantry crane:

Lifting capacity is 5ton to 32ton;

Span is 12m to 30m;

Lifting height is 6m, 9m, 12m, etc;

Working duty is A5;

Working temperature is -20°C to + 50°C

Capacity			T	3	5	10	16	20
Span			m	12,16,20,24,30
Operational method				Pendent Line With Press Button /Cabin/ Remote
Speed	Lifting		m/min	8 ,8/0.8	8,8/0.8	7,7/0.7	3.5	3.5
	Cross traveling			20	20	20	20	20
	Long traveling	Ground		20	20	20	20	20
		Cabin		20, 30,45	20, 30,40	30,40	30,40	30,40
Motor	Lifting		Type /kw	ZD41-4/4.5 ZDS1-4/0.4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13	ZD152-4/18
	Cross traveling			ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.82	ZDY121-4/0.82	YZD-4/0.84
	Long traveling	Ground		ZDY21-4/0.82 ZDY21-4/1.52	YZY22-4/1.52 YZR132M2-6/3.72	YZR22-4/1.52	YZR160M1-6/6.32 YZR160M2-6/8.52	YZR160M1-6/6.32 YZR160M2-6/8.52
		Cabin		ZDR100-4/1.52 ZDR112-4/2.12	YZR112L1-4/2.12 YZR160M1-6/2.12	YZR112L1-4/2.12 YZR160M2	YZR160M2-6/8.52 YZR160L2-6/112	YZR160M2-6/8.52 YZR160L2-6/112
Electric hoist			Model	CD1/MD1	CD1/MD1	CD1/MD1	CD1	HC
Lifting height			m	6,9,12,18,24,30
Working duty				A3
Power supply				380V 60HZ 3phase AC (According to your demand )

Henan Mine Crane Co., Ltd. was established in 2002 with a registered capital of 1.177 billion yuan, construction area of 1.62 million square meters, more than 4500 employees and more than 3500 sets of advanced processing equipment.
Specializing in the R & D, production, sales and service of more than 110 kinds of cranes and supporting parts in three series of "Kuangyuan" brand bridge cranes, gantry cranes and electric hoists.

Our company is a national high-tech enterprise with a technical team composed of more than 10 industry top experts and more than 200 middle and senior engineers. It is responsible for the innovative design and development of products. At present, it has obtained more than 300 national patents and provincial scientific and technological achievements

In 2020, the production and sales of all kinds of single beam and double beam lifting equipment will be nearly 100,000 sets, with sales of 5.675 billion yuan and tax payment of 205 million yuan. The company has 428 sales and service organizations all over the country, serving more than 6000 medium and high-end customers, and has made remarkable achievements in more than 50 key industries such as aerospace, automobile and ship, steel smelting, petrochemical industry, electronic information, electric power industry, water conservancy, railway and military industry.

The developed intelligent storage crane, precision positioning crane, automatic container gantry crane, nuclear grade special crane, clean explosion-proof automatic crane, multi fulcrum flexible crane, simulated maritime rescue crane and other sophisticated products serve Baosteel, China Railway, MCC, CNNC, AVIC and other large enterprises. The products cover more than 80 countries and regions.

We have rich experience in production and export:
We have exported our cranes to Australia, Bangladesh, Iraq, Pakistan, Philippines, USA, Egypt, Peru, India, Turkmenistan, Singapore, Ethiopia, South Africa, Saudi Arabia, Malta, Albania, Ukraine, Vietnam, Kenya, Nigeria, UAE, Cameroon, Uruguay, Bahrain, Thailand, Kazakhstan, Germany, Sultan,
Chile, Oman, Romania, Malaysia, Armenia, Jordan and so on, received good confirmation and welcomed from them!
